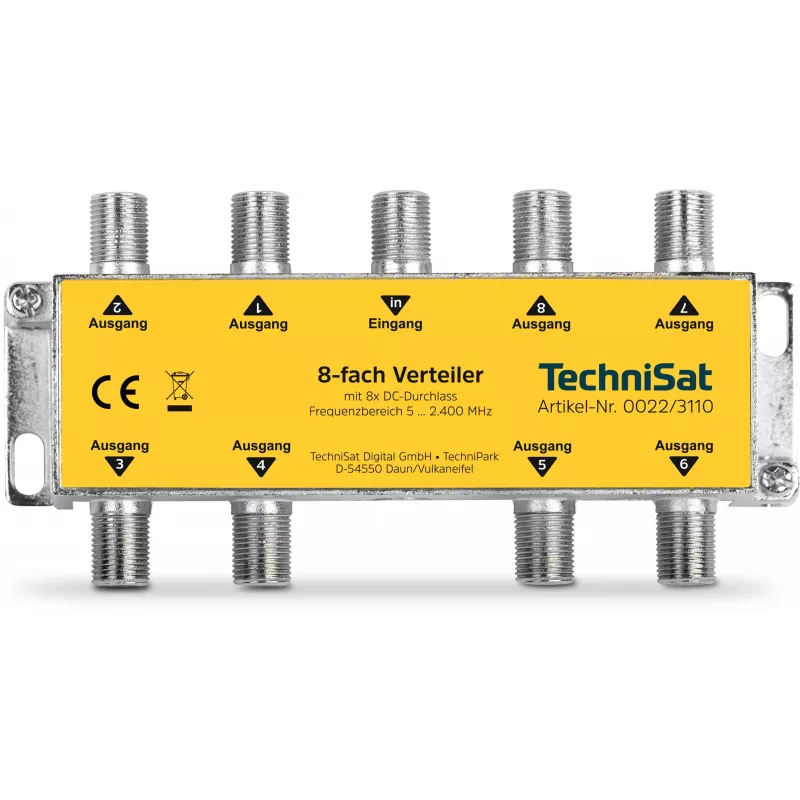

TechniSat 8-násobný rozdeľovač s DC priechodom, bez diódového oddelenia (0022/3110)

This 8-way splitter stands out by passing DC power on all eight outputs without diode decoupling, making it suitable for satellite and broadband cable systems where remote powering of LNBs or amplifiers is required. The die-cast zinc housing ensures durability and shielding effectiveness over 100 dB.

Highlights

• Distributes one input to eight outputs across 5–2400 MHz
• DC pass-through on all outputs, max 24 V / 500 mA per output
• No diode decoupling for lossless DC transfer
• F-connector (female) for standard coaxial connections
• Die-cast zinc housing with >100 dB shielding

In daily use

The splitter maintains signal integrity with insertion loss from 12.5 dB at low frequencies to 15.5 dB at satellite IF. Output-to-output isolation exceeds 20 dB up to 862 MHz and 16 dB up to 2400 MHz, minimizing interference between connected devices.

Full specifications

• Number of inputs: 1
• Number of outputs: 8
• Frequency range: 5 – 2400 MHz
• DC pass-through: Yes, on all 8 outputs
• Diode decoupling: No
• Insertion loss (5–40 MHz): approx. 12.5 dB
• Insertion loss (950–2400 MHz): approx. 14.5 – 15.5 dB
• Isolation (output-output, 5–862 MHz): >20 dB
• Isolation (output-output, 950–2400 MHz): >16 dB
• Impedance: 75 Ohm
• Connector type: F-connector (female)
• Housing material: Die-cast zinc
• Max DC voltage: 24 V
• Max DC current: 500 mA (per output)
• Shielding effectiveness: >100 dB
• Return loss (input/output, 5–862 MHz): >10 dB
• Return loss (input/output, 950–2400 MHz): >8 dB

Final note

Designed for SAT/BK systems, this splitter is a reliable choice for distributing signals to multiple receivers while maintaining DC power for active components.
