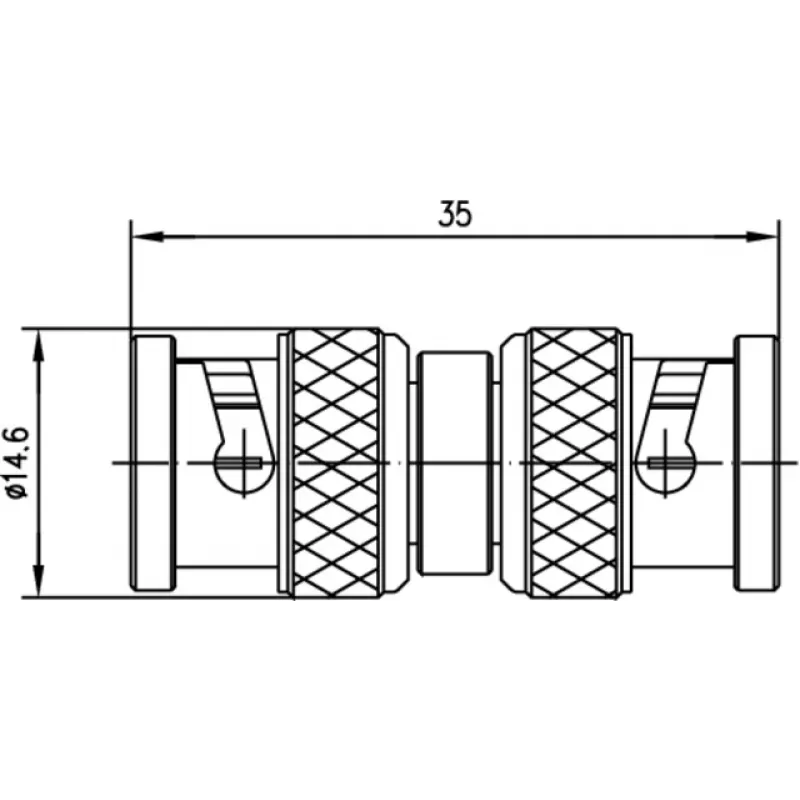

Telegärtner BNC adaptér, BNC konektor samec na BNC konektor samec, 50 Ohm, J01004A0806

This inline BNC adapter from Telegärtner provides a direct male-to-male connection for 50-ohm coaxial systems. Its precision-machined brass body with nickel plating and gold-plated contacts ensures reliable signal integrity up to 4 GHz.

Highlights

• BNC male to BNC male inline adapter
• 50 Ohm impedance for RF applications
• Brass body, nickel plated; gold-plated contacts
• PTFE insulation for low loss and high temperature stability
• Frequency range DC to 4 GHz

In daily use

The adapter is ideal for extending or joining BNC cables in laboratory, broadcast, or telecommunications environments. Its robust construction withstands repeated mating cycles, and the wide operating temperature range (-55 °C to +155 °C) suits demanding conditions.

Full specifications

• Connector type: BNC
• Connector gender: Male - Male
• Impedance: 50 Ohm
• Body material: Brass
• Body plating: Nickel
• Contact material: Brass
• Contact plating: Gold
• Insulation material: PTFE
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V (RMS)
• Temperature range: -55 °C to +155 °C
• Dielectric withstanding voltage: 1500 Veff / 50 Hz
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1 mΩ
• VSWR: ≤ 1.5 @ 4 GHz
• Mating cycles: ≥ 500
• Standard compliance: IEC 61169-8, MIL-STD-348A/301
• Mounting type: Inline adapter

Final note

Telegärtner's precision manufacturing ensures consistent performance and durability for professional RF connections.
