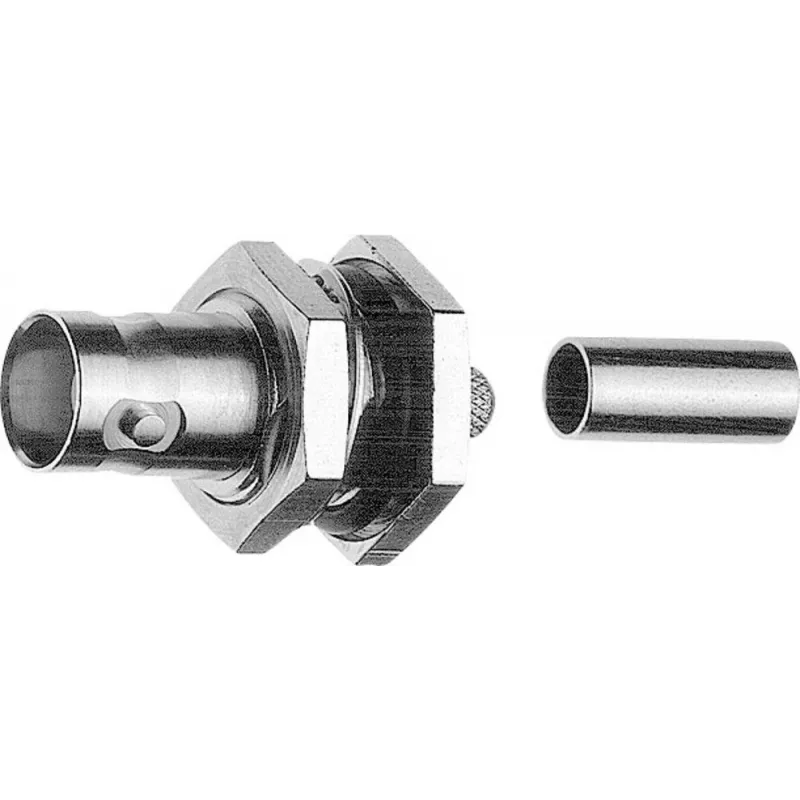

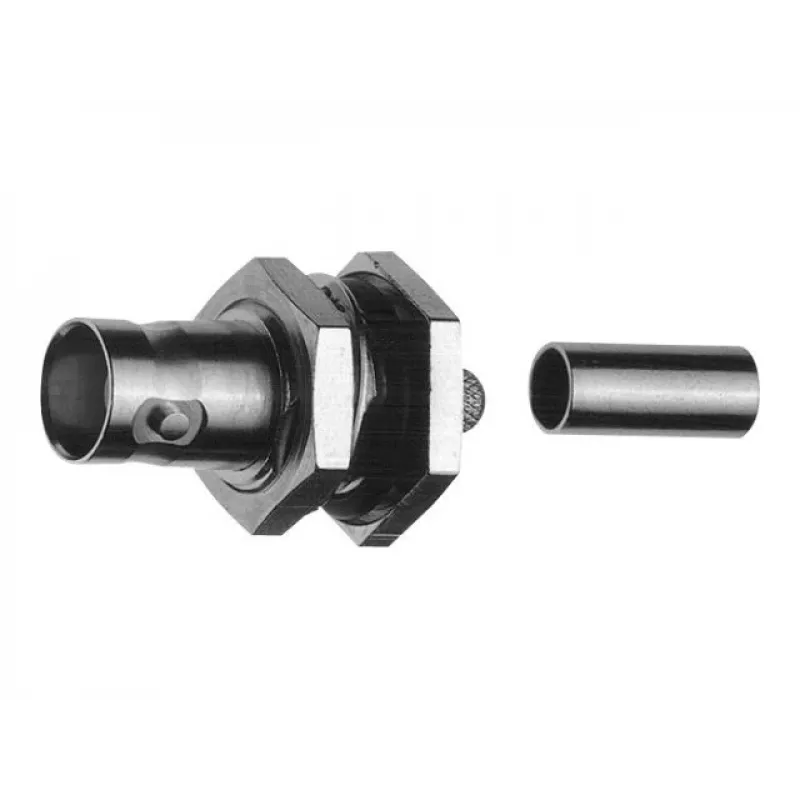

TELEGÄRTNER BNC konektor samica na zabudovanie, crimp, 75 Ohm, RG-62 A/U, balenie 5 ks (J01003A1260)

This TELEGÄRTNER BNC panel mount jack offers a reliable crimp termination for RG-62 A/U coaxial cable, supplied in a pack of five. The nickel-plated brass body and gold-plated center contact provide a durable connection for 75 Ohm applications up to 1 GHz.

Highlights

• BNC jack (female) for panel mounting
• Crimp termination for outer and inner conductor
• 75 Ohm impedance, suitable for RG-62 A/U cable
• Frequency range DC to 1 GHz
• Pack of 5 pieces

In daily use

Designed for professional RF installations, this connector ensures secure and repeatable terminations. The PTFE insulator and gold-plated center contact maintain signal integrity across the specified frequency range.

Full specifications

• Connector type: BNC
• Gender: Jack (female)
• Mounting type: Panel mount
• Impedance: 75 Ohm
• Termination: Crimp
• Compatible cable: RG-62 A/U
• Frequency range: DC - 1 GHz
• Voltage rating: 500 V (RMS)
• Insulation resistance: ≥ 5 GΩ
• Contact resistance (center): ≤ 1.5 mΩ
• Contact resistance (outer): ≤ 1 mΩ
• Body material: Brass
• Body plating: Nickel
• Center contact material: Brass
• Center contact plating: Gold
• Insulator material: PTFE
• Operating temperature: -40 °C to +85 °C
• Series: A1206
• Cable group: Z04

Final note

TELEGÄRTNER precision connectors are engineered for consistent performance in demanding environments.
