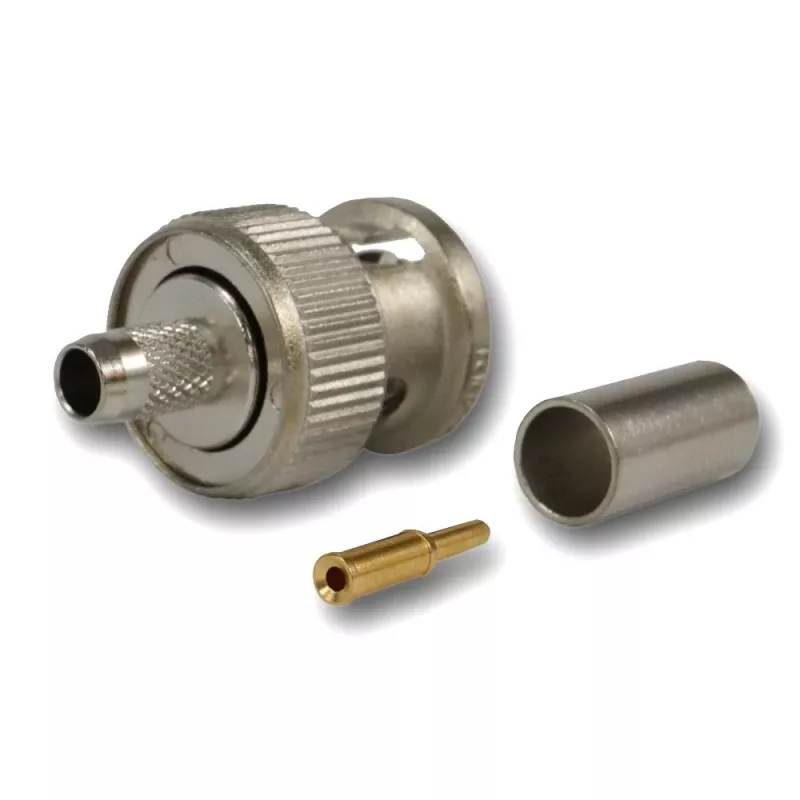

Telegärtner BNC krimpovací konektor samec 50 Ohm pre RG-58 C/U, nikel/zlato, 4 GHz J01000L1255Z

With a frequency range up to 4 GHz and a VSWR of ≤1.25 at 3 GHz, this BNC plug delivers clean signal integrity for RF applications. The crimp/crimp termination ensures a secure, tooled connection to RG-58 C/U cable.

Overview

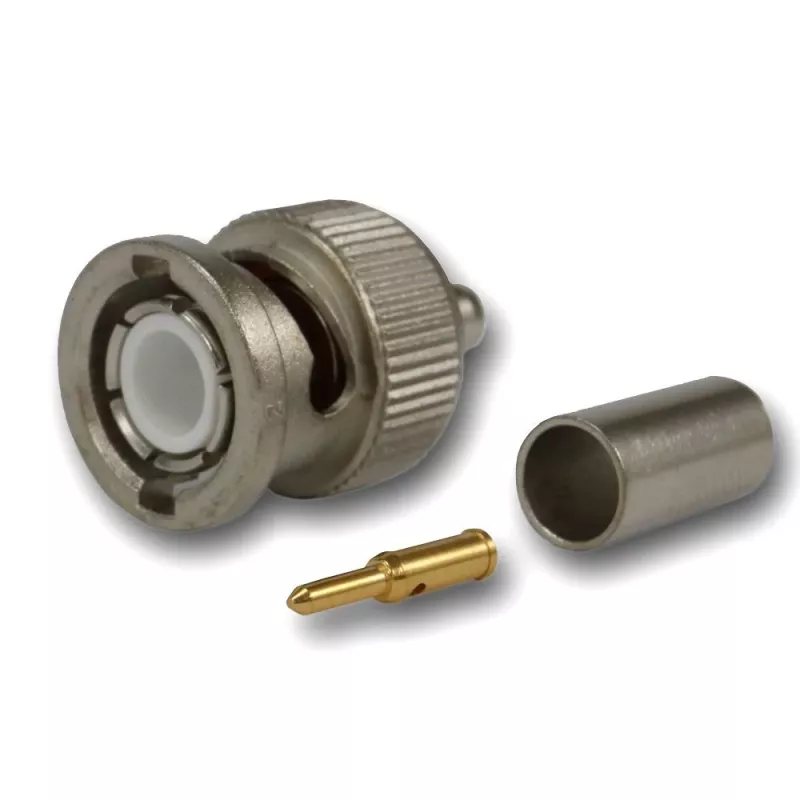

Telegärtner's Basic Line BNC plug is a 50 Ohm male connector for RG-58 C/U coaxial cable. The body is brass with nickel plating, and the center contact is gold-plated brass with PTFE insulation. It supports crimp termination for both center and outer conductors, providing a reliable, permanent cable assembly.

What stands out

• Impedance: 50 Ohm
• Frequency range: DC to 4 GHz
• VSWR: ≤1.25 at 3 GHz
• Voltage rating: 500 V RMS
• Dielectric withstanding voltage: 1500 V RMS
• Operating temperature: -40°C to +85°C
• Body: brass, nickel plated
• Contact: brass, gold plated
• Insulation: PTFE
• Termination: crimp/crimp
• For RG-58 C/U cable (cable group G01)
• Packaging: 1 piece

Technical details

• Connector type: BNC
• Gender: male (plug)
• Mounting type: cable mount
• Product line: Basic Line

Our verdict

A dependable crimp BNC plug for RG-58 C/U, built with quality materials and specified to 4 GHz. Ideal for professional RF cable assemblies.
