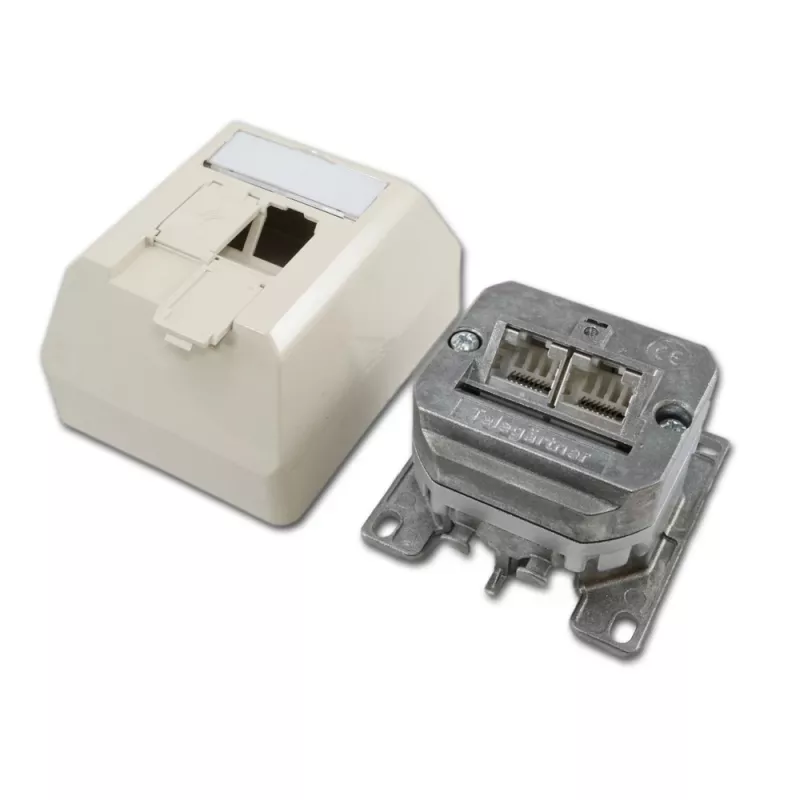

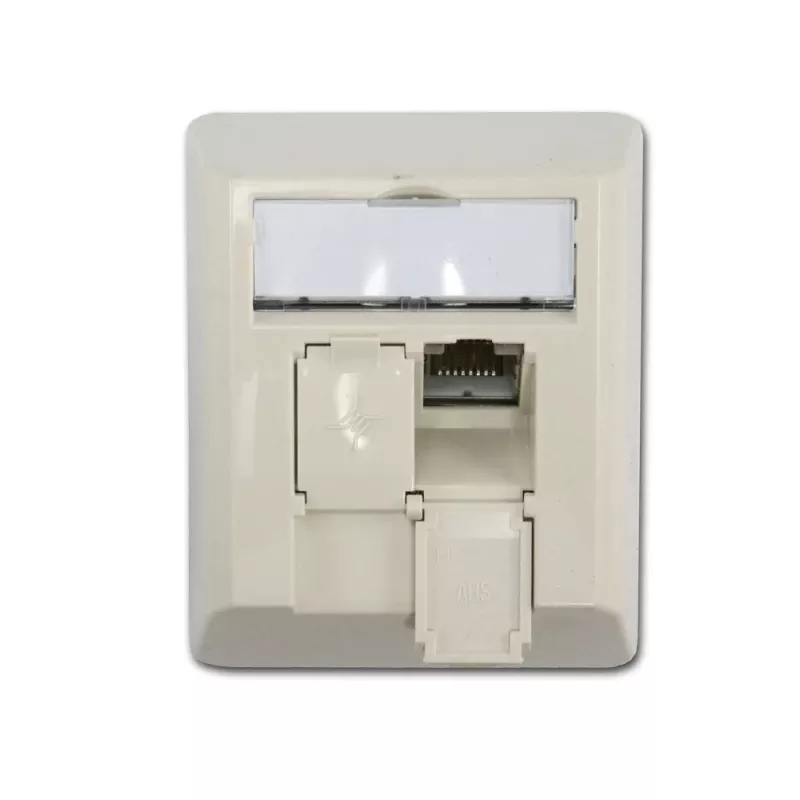

Telegärtner Cat.6 tienená RJ-45 sieťová zásuvka, perlovo biela

This Telegärtner network wall outlet provides a reliable, high-performance connection point for structured cabling in offices, schools, and commercial buildings. Install it in a standard flush-mount box to create a clean, professional RJ-45 port for workstations, access points, or IP phones.

Key specifications

• Connector: RJ-45 female, shielded (STP)
• Category: Cat.6, transmission up to 250 MHz
• Ports: 1
• Mounting: Flush mount (Unterputz), fits standard 60 mm boxes
• Colour: Pearl white
• Wiring: T568A / T568B, colour-coded
• Termination: LSA-Plus compatible IDC terminals
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Housing: PC/ABS, flammability UL 94 V-0
• Contact material: Gold-plated phosphor bronze
• Operating temperature: -40 °C to +70 °C

Why choose it

This outlet is engineered for stable gigabit and PoE applications, with gold-plated contacts and robust shielding to resist interference. The colour-coded IDC terminals simplify termination, and the pearl white finish blends with standard switch plates.

Ideal use cases

• Connecting workstations in office networks
• Powering PoE devices such as IP cameras and VoIP phones
• Terminating Cat.6 horizontal cabling in commercial buildings

Good to know

The outlet meets ISO/IEC 11801, EN 50173, and TIA/EIA-568-B.2-1 standards. It is designed for use with shielded Cat.6 cabling and includes a central plate with cover frame (80x80 mm).
