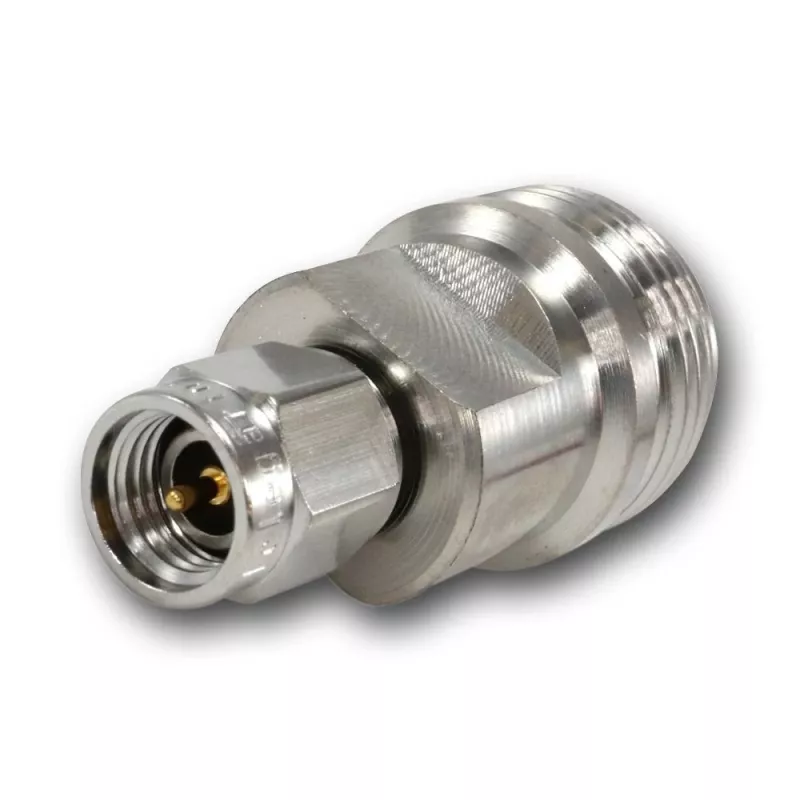

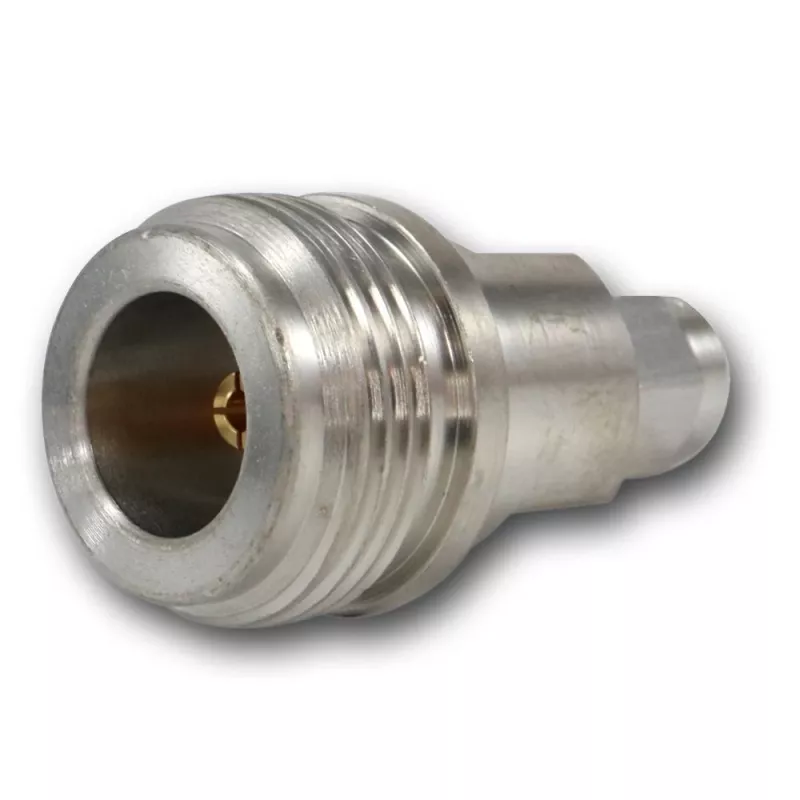

Telegärtner Inter-Series koaxiálny adaptér SMA konektor samec na N konektor samica 50 Ohm DC-18 GHz

Wideband performance from DC to 18 GHz with VSWR ≤ 1.25 makes this Telegärtner coaxial adapter a precision interconnect for RF systems. It converts an SMA male interface to an N female jack while maintaining a 50 Ω impedance across the entire frequency range.

Overview

The Telegärtner Inter-Series adapter (model 100024201) provides a reliable transition between SMA and N connector types. Its brass body with nickel plating and gold-plated inner conductor ensure low contact resistance and long-term durability. PTFE insulation supports stable electrical characteristics over a wide temperature range from -65 °C to +165 °C.

What stands out

• Broadband operation: DC to 18 GHz
• Low VSWR: ≤ 1.25 across the band
• 50 Ω impedance matching
• Gold-plated inner conductor for low contact resistance (≤ 3 mΩ)
• Nickel-plated brass body for corrosion resistance
• Wide operating temperature: -65 °C to +165 °C

Technical details

• Connector 1: SMA male (plug)
• Connector 2: N female (jack)
• Impedance: 50 Ω
• Frequency range: DC - 18 GHz
• VSWR: ≤ 1.25
• Body material: Brass, nickel-plated
• Inner conductor: Brass, gold-plated
• Insulator: PTFE
• Dielectric withstanding voltage: 1000 Veff
• Insulation resistance: ≥ 5 GΩ
• Contact resistance inner: ≤ 3 mΩ
• Contact resistance outer: ≤ 2 mΩ

Our verdict

A precision RF adapter built for demanding applications where signal integrity matters. The combination of low VSWR, gold plating, and wide temperature tolerance makes it suitable for laboratory, test, and communication systems.
