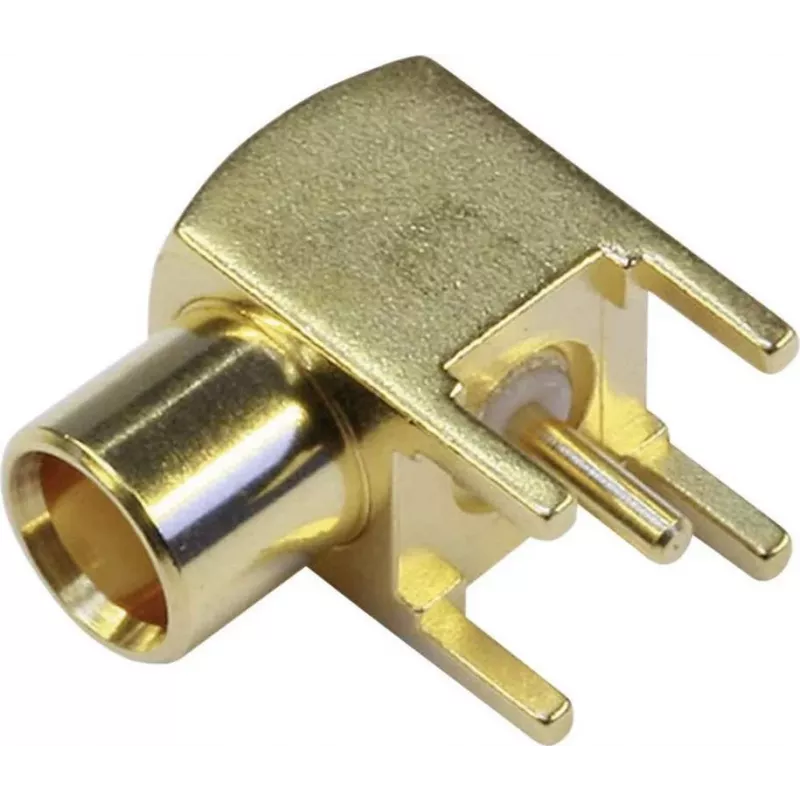

TELEGÄRTNER MCX konektor samica PCB vertikálny 50 Ohm HF konektor J01271A0161

The TELEGÄRTNER MCX connector is a 50 Ohm coaxial RF jack designed for vertical PCB mounting. It supports frequencies from DC to 6 GHz and features gold-plated brass body and beryllium copper contacts for reliable signal integrity.

Advantages

This connector offers a compact MCX interface with a push-on coupling mechanism, enabling quick and secure connections. The vertical through-hole design simplifies PCB assembly, while the PTFE insulator ensures low loss and stable performance across a wide temperature range from -65 °C to +165 °C.

Suitable for

• RF modules and wireless communication devices
• Test and measurement equipment
• GPS and telemetry systems
• High-frequency PCB applications up to 6 GHz

Key specifications

• Connector series: MCX
• Connector type: Coaxial RF jack (female)
• Mounting: PCB through-hole, vertical
• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• Body material: Brass with gold plating
• Contact material: Beryllium copper with gold plating
• Insulator: PTFE
• Voltage rating: 170 V RMS
• Operating temperature: -65 °C to +165 °C

Recommendations

For optimal performance, ensure proper PCB footprint alignment and use a compatible MCX plug. This connector is ideal for high-density RF designs where space is limited and reliable signal transmission is critical.
