TELEGÄRTNER nástenná RJ45 zásuvka 1xRJ45 nechránená, Cat. 5e (A0174)

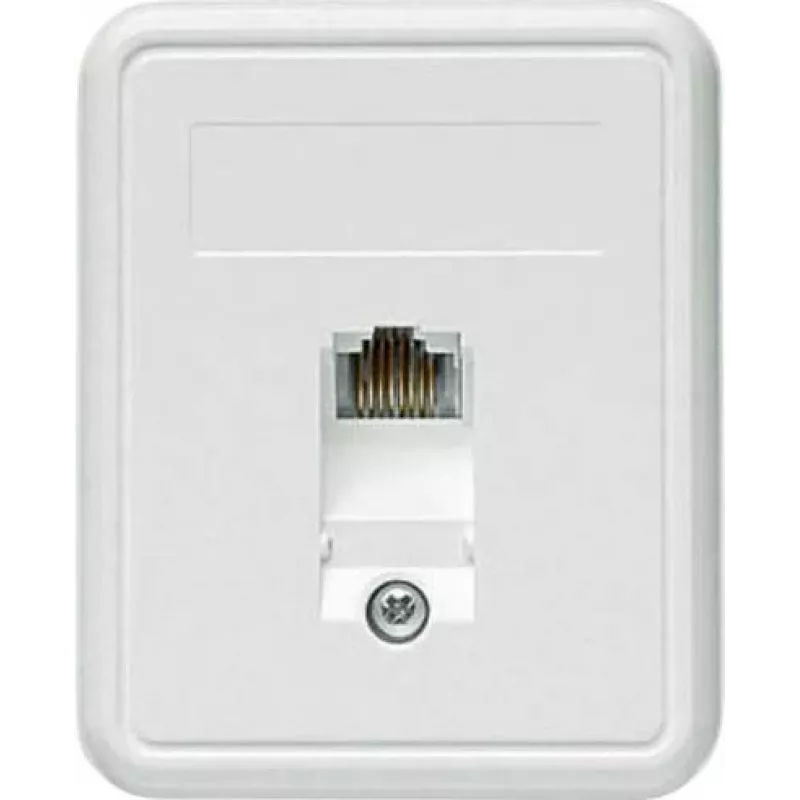

Surface-mount RJ45 socket with one unshielded Cat. 5e port, engineered for reliable network connectivity in fixed installations. The single module design offers straightforward termination via LSA (IDC) terminals, supporting TIA/EIA 568A/B wiring standards.

Advantages

Gold-plated contacts over nickel ensure consistent signal integrity and corrosion resistance. The ABS housing in white (RAL 9010) blends into most environments, while rear and side cable entry options provide flexible installation. Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA 568-C.2, this socket delivers performance up to 100 MHz for Gigabit Ethernet applications.

Suitable for

• Surface-mounted network outlets in offices, homes, and commercial spaces
• Structured cabling systems requiring Cat. 5e performance
• Installations where unshielded twisted pair (UTP) cabling is used

Key specifications

• Port type: RJ45
• Number of ports: 1
• Network category: Cat. 5e
• Shielding: Unshielded (UTP)
• Mounting type: Surface mount
• Termination type: LSA (IDC) terminals
• Wiring standard: TIA/EIA 568A/B
• Housing material: ABS plastic
• Colour: White (RAL 9010)
• Contact plating: Gold (3µm) over nickel
• Cable entry: Rear and side
• Operating temperature: -10°C to +50°C
• Humidity range: 10% - 90% RH (non-condensing)

Recommendations

For optimal performance, use with Cat. 5e or higher UTP cable and ensure proper termination according to TIA/EIA 568A/B. Ideal for surface-mounted network points where in-wall installation is not feasible.
