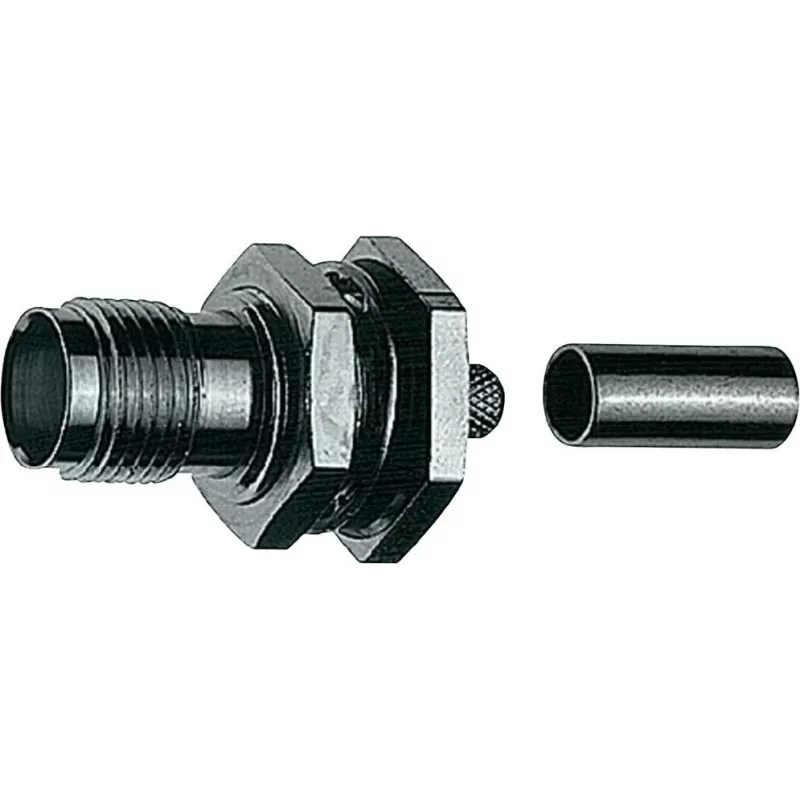

Telegärtner R-TNC konektor samica PCB montáž rovný 50 Ohm HF konektor J01011R0000

With a frequency range up to 11 GHz and VSWR ≤ 1.3 up to 10 GHz, the Telegärtner R-TNC jack delivers precise RF performance in a 50 Ohm PCB-mount design. The straight connector features a 4-hole flange for secure panel or board mounting, with gold-plated beryllium copper center contact and nickel-plated brass body for reliable signal integrity.

Overview

The Telegärtner J01011R0000 is a female R-TNC connector with a male center contact, designed for PCB mounting via a 4-hole flange. It operates across a wide temperature range from -65 °C to +165 °C and supports at least 500 mating cycles, making it suitable for demanding RF applications.

What stands out

• Wide frequency coverage: DC to 11 GHz
• Excellent VSWR: ≤ 1.3 up to 10 GHz
• High voltage rating: 500 V RMS
• Durable construction: PTFE insulator, gold-plated contacts
• RoHS compliant

Technical details

• Connector series: R-TNC
• Connector type: Jack (female outer thread, male center contact)
• Mounting type: PCB mount, 4-hole flange
• Design: Straight
• Impedance: 50 Ohm
• Frequency range: DC - 11 GHz
• Voltage rating: 500 V (RMS)
• VSWR: ≤ 1.3 @ DC - 10 GHz
• Contact plating: Gold
• Body plating: Nickel
• Insulator material: PTFE
• Body material: Brass
• Center contact material: Beryllium copper
• Temperature range: -65 °C to +165 °C
• Mating cycles: ≥ 500
• Dielectric withstanding voltage: 1.5 kVeff (50 Hz)
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 1.5 mΩ
• Outer contact resistance: ≤ 1.0 mΩ

Our verdict

A robust and precise R-TNC jack for PCB mounting, ideal for high-frequency applications requiring reliable performance and durability.
