Telegärtner TNC uhlový krimpovací konektor samec, 50 Ohm, RG-213/U, spájkovanie/krimpovanie, G42 (2,7/7,1), B1812 (J01010A0066)

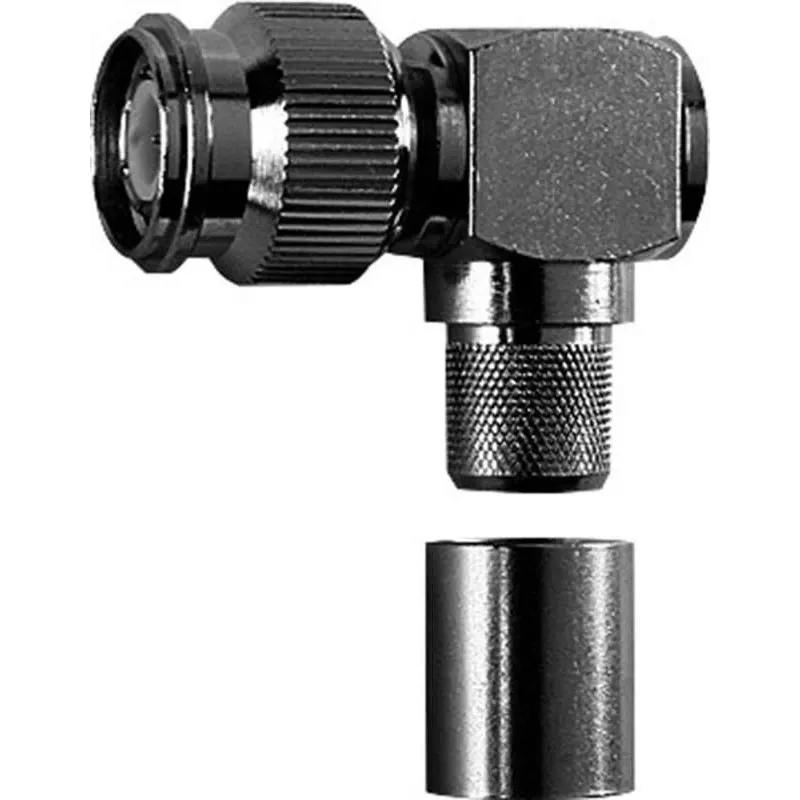

The Telegärtner J01010A0066 is a right-angle TNC male connector engineered specifically for RG-213/U coaxial cable. Its 90° elbow body solves tight-space routing where a straight connector would force a sharp, lossy bend. Unlike generic TNC plugs, this unit is matched to Telegärtner cable group G42 (dielectric 2.7 mm, outer conductor 7.1 mm) for a controlled 50 Ω transition. The centre contact is soldered, while the outer ferrule is crimped—a combination that yields a mechanically robust, low-reflection termination for professional RF installations.

Highlights

• Right-angle TNC male connector for RG-213/U cable
• 50 Ω impedance with solder centre contact and crimp outer contact
• Precision fit for Telegärtner cable group G42 (2.7/7.1 mm)
• Compact 90° body for dense equipment panels and cable runs

Full specifications

• Connector series: TNC
• Connector type: Cable connector, male
• Body style: Right-angle (elbow)
• Impedance: 50 Ohm
• Centre contact termination: Solder
• Outer conductor termination: Crimp
• Compatible cable: RG-213/U
• Cable group (Telegärtner): G42
• Nominal dielectric diameter: 2.7 mm
• Nominal outer conductor diameter: 7.1 mm
• Mounting type: Cable mount
• Application: RF coaxial

Final note

Designed for installers who need a reliable right-angle TNC termination on RG-213/U without adapters or field improvisation.
