Satelitná anténa Preisner S660-G Graphite

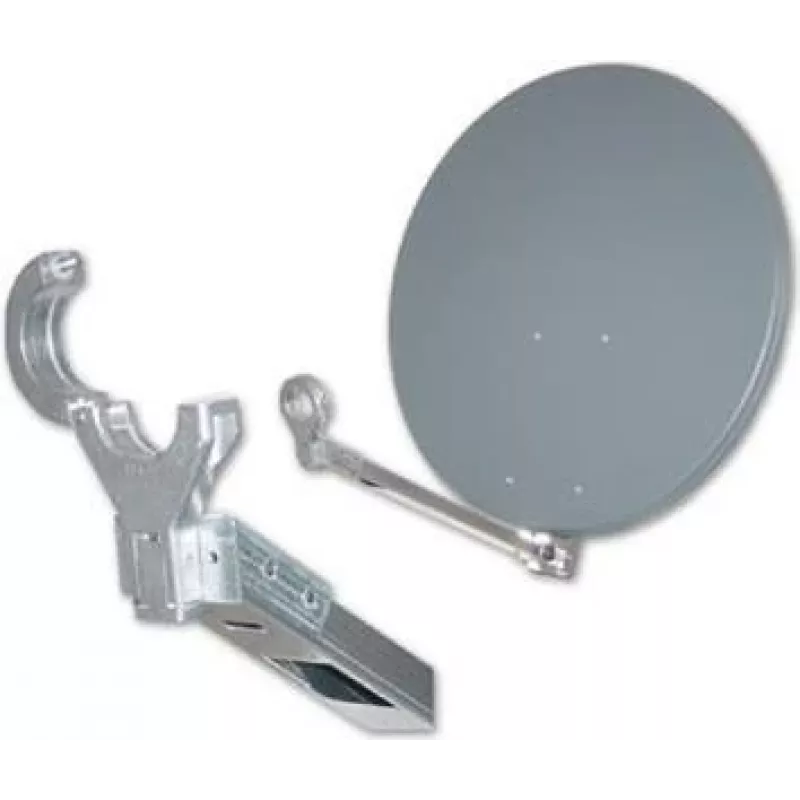

The Preisner S660-G Graphite satellite antenna by Televes is a durable aluminium reflector antenna finished in graphite. With overall dimensions of approximately 670 mm width and 710 mm height, it is engineered to receive satellite signals reliably while offering a compact footprint and a modern appearance suitable for residential or light commercial installations.

Advantages

The aluminium construction provides corrosion resistance and reduced weight compared with steel designs, while the graphite finish offers UV stability and a discreet visual profile. The reflector shape and dimensions are optimized for consistent signal capture across common satellite bands. The design includes mounting features that allow secure attachment to standard masts and straightforward alignment for optimal reception.

Suitable for

• Satellite TV reception for homes and apartments
• SMALL commercial installations such as shops or offices requiring satellite links
• Temporary or semi-permanent installations where a compact, lightweight antenna is preferred

Key specifications

• Reflector material: aluminium
• Finish: graphite-coloured coating
• Approximate width: 670 mm
• Approximate height: 710 mm
• Designed frequency range: standard satellite reception bands (Ku-band compatible)
• Mounting: mast mount compatible with standard brackets

How to use

Mount the antenna on a suitably rated mast or bracket, ensuring the structure is vertical and secure. Point the reflector toward the satellite orbital position using an azimuth and elevation finder or appropriate alignment app, then tighten the mounting hardware to prevent movement. Connect the low-noise block downconverter (LNB) with a suitable coaxial cable to the receiver, verify signal strength and quality on the receiver, and fine-tune alignment if required.

Recommendations

Place the antenna in a location with an unobstructed view of the southern sky (or the relevant satellite azimuth for your location). Use corrosion-resistant fasteners for coastal or high-humidity environments and routinely check mounting hardware and cable connections to maintain stable reception.
