TELMOR TT W21 GOLD COMBO 5G DVB-T2 outdoorová anténa

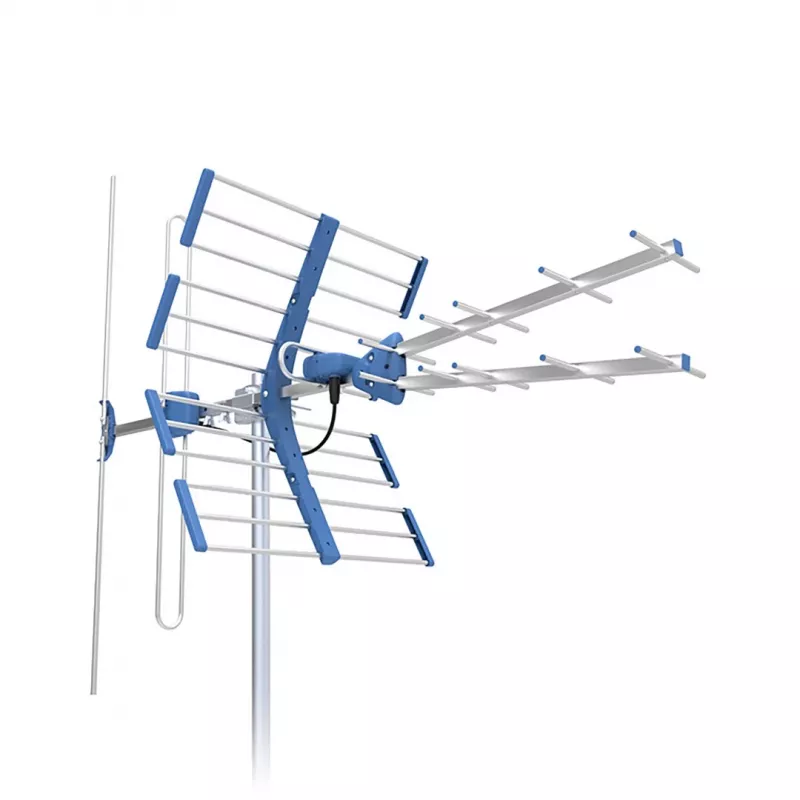

The TELMOR TT W21 GOLD COMBO 5G is a high-performance outdoor directional combo antenna designed for DVB-T and DVB-T2 reception. With its gold-plated elements and integrated LTE/5G filter, it ensures crystal-clear digital TV reception while suppressing interference from mobile networks. Ideal for areas with weak or medium signal strength, this antenna delivers reliable performance for VHF and UHF bands.

Advantages

This antenna combines VHF and UHF reception in one compact Yagi-style design, eliminating the need for separate antennas. The integrated 5G filter blocks the 700 MHz band, preventing interference from LTE and 5G networks. Its robust aluminum and UV-resistant plastic construction ensures long-lasting outdoor use. The gold-plated elements enhance conductivity and corrosion resistance, providing consistent signal quality over time.

Suitable for

• Home users seeking reliable DVB-T/T2 reception in suburban or rural areas
• Installations where both VHF and UHF channels are required
• Locations with moderate signal strength needing a directional antenna
• Users wanting future-proof reception with 5G interference protection

Key specifications

• Antenna Type: Outdoor Directional Combo (VHF/UHF)
• Supported Standards: DVB-T, DVB-T2
• VHF Frequency Range: 174 - 230 MHz (Channels K5-K12)
• UHF Frequency Range: 470 - 694 MHz (Channels K21-K48)
• VHF Gain: 8-10 dBi
• UHF Gain: 12-16.5 dBi
• Integrated Filter: LTE/5G (700 MHz band)
• Output Impedance: 75 Ohm
• Connector Type: F-type
• Polarization: Horizontal (can be mounted Vertical)
• Material: Aluminum, UV-resistant plastic
• Mounting Type: Mast Clamp
• Max Mast Diameter: 60 mm
• VSWR: < 2.0
• Front-to-Back Ratio (UHF): > 20 dB
• Number of Elements: Multi-element Yagi-style

Recommendations

For optimal performance, mount the antenna as high as possible with a clear line of sight to the transmitter. Use high-quality 75 Ohm coaxial cable and an F-type connector. Ensure the mast is sturdy and properly grounded. This antenna is not suitable for indoor use.
