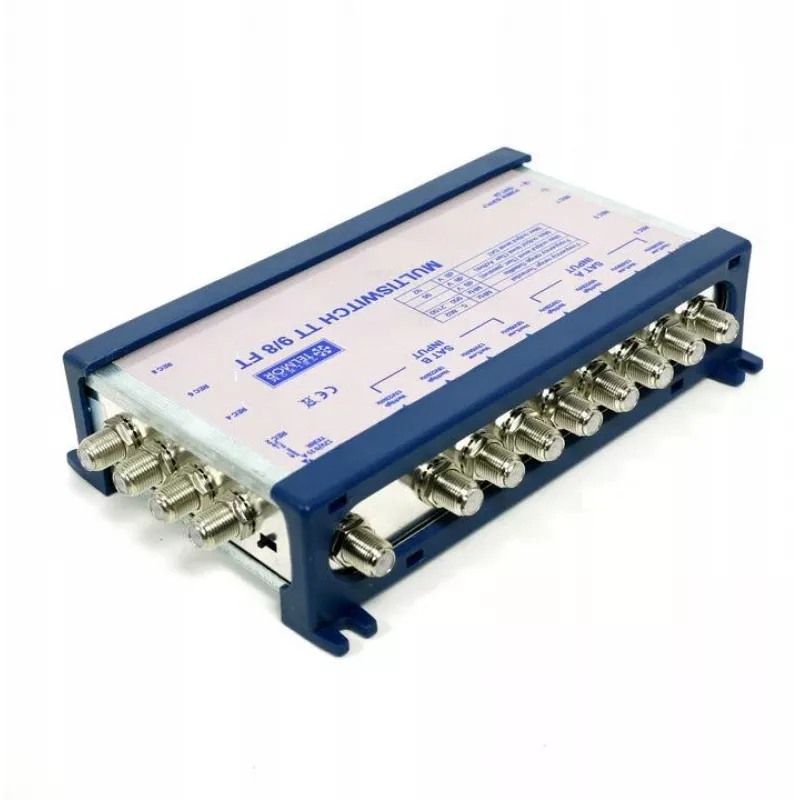

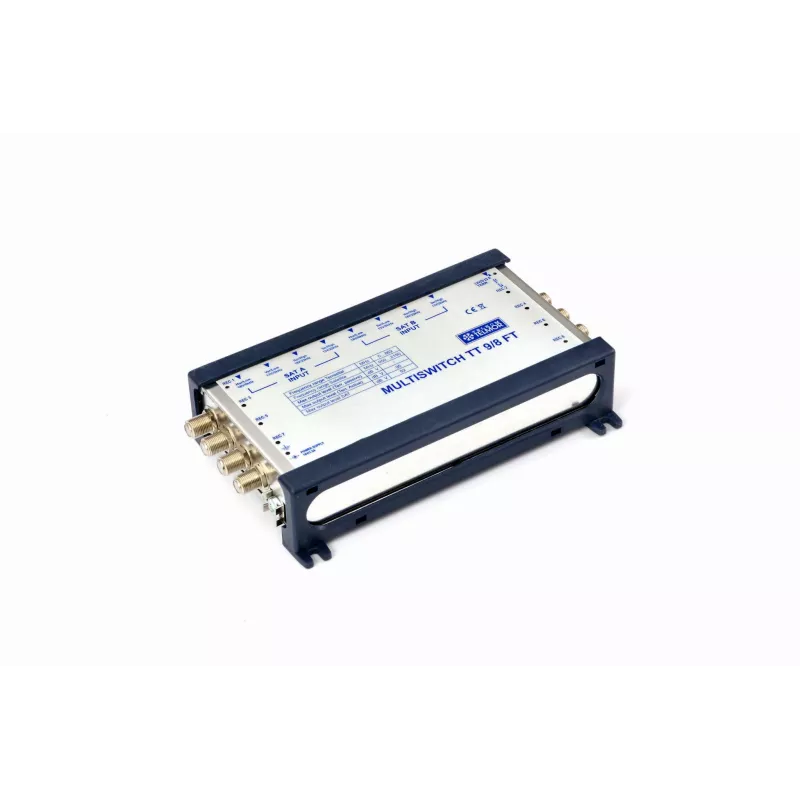

TELMOR Multiswitch TT 9/8 terminál 8 satelitných vstupov 1 terestriálny vstup 8 výstupov

The TELMOR Multiswitch TT 9/8 is a high-performance terminal multiswitch designed for distributing satellite and terrestrial TV signals to multiple subscribers. With 8 satellite IF inputs, 1 terrestrial input, and 8 subscriber outputs, it is ideal for small to medium-sized installations requiring reliable signal distribution.

Advantages

This multiswitch offers excellent signal isolation and low path loss, ensuring high-quality signal delivery. Its metal housing provides durability and effective shielding against interference. The unit supports LNB power supply via receiver control (13V/18V, 0/22kHz) and can handle up to 500 mA total LNB current.

Suitable for

• Satellite TV distribution in apartment buildings, hotels, or offices
• Combined satellite and terrestrial signal distribution
• Standalone multiswitch applications requiring up to 8 outputs

Key specifications

• Number of Satellite Inputs: 8 (SAT IF)
• Number of Terrestrial Inputs: 1 (TER)
• Number of Subscriber Outputs: 8
• Satellite IF Frequency Range: 950 - 2150 MHz
• Terrestrial TV Frequency Range: 47 - 862 MHz
• Satellite IF Path Loss: 2 - 4 dB
• Terrestrial TV Path Loss: 2 - 4 dB
• SAT-SAT Isolation: >30 dB
• SAT-TER Isolation: >30 dB
• Output-Output Isolation: >25 dB
• LNB Power Supply: 18V / 13V, 0/22kHz (from receiver)
• LNB Current Consumption: Max 500 mA (total)
• Multiswitch Power Supply: Requires external 18V DC power adapter (not included)
• Power Consumption: Max 1A @ 18V DC (for LNBs)
• Connectors: F-type (all inputs/outputs)
• Operating Temperature: -20 to +50 °C
• Housing Material: Metal

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The external power adapter must provide 18V DC with at least 1A capacity. This multiswitch is compatible with standard satellite receivers and LNB configurations.
