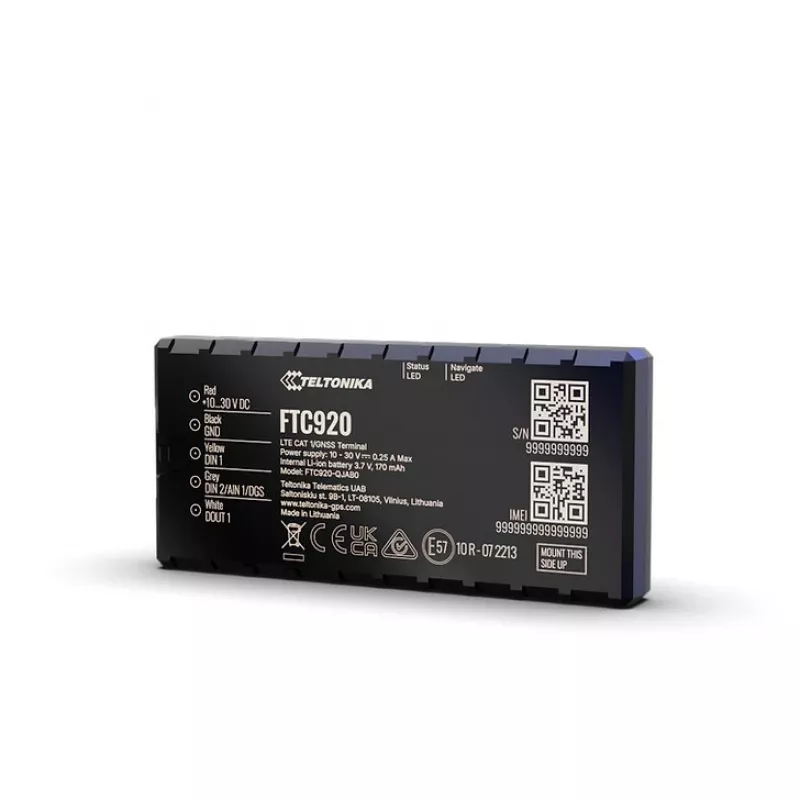

Teltonika FTC920 GPS/GSM auto tracker 170mAh

The Teltonika FTC920 is a compact and robust GPS/GSM car tracker designed for real-time vehicle tracking and fleet management. With an internal 170 mAh Li-Ion battery and a wide power supply range of 6-30 V DC, it ensures reliable operation in various vehicles. The device features quad-band GSM, multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou), and an accelerometer for motion detection. Its IP54 rating makes it suitable for harsh environments.

Advantages

Multi-constellation GNSS support ensures accurate positioning even in challenging conditions. The built-in accelerometer enables power-saving modes and impact detection. With 128 MB internal memory, it can store up to 100,000 records, ensuring data integrity during communication outages. Bluetooth 3.0 allows for wireless configuration and peripheral connectivity.

Suitable for

• Vehicle tracking and fleet management
• Asset tracking for logistics and transportation
• Stolen vehicle recovery
• Usage-based insurance telematics

Key specifications

• GNSS: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
• GSM: Quad-band 850/900/1800/1900 MHz
• Internal battery: 170 mAh Li-Ion
• Power supply: 6-30 V DC
• Digital inputs: 2 (1 reserved for ignition)
• Digital outputs: 1
• Analog inputs: 1
• Accelerometer: Yes
• Bluetooth: 3.0
• Internal memory: 128 MB (up to 100,000 records)
• Operating temperature: -40 °C to +85 °C
• Protection class: IP54
• Antennas: Internal GSM and GNSS
• SIM card: Micro-SIM
• Data transmission: GPRS Class 12
• Configuration interface: Micro-USB

Recommendations

For optimal performance, use a high-quality Micro-SIM card with a data plan. Ensure proper installation with secure power connections and antenna placement for best signal reception. The device can be configured via Teltonika Configurator software over USB or Bluetooth.
