Teltonika RUT202 - 4G LTE Wireless Router, Wi-Fi 4, 2x Ethernet, DIN Rail

The Teltonika RUT202 is a compact and reliable 4G LTE wireless router designed for industrial and professional applications. With support for 4G (LTE Cat 4), 3G, and 2G networks, it ensures stable connectivity even in remote locations. The router features dual Ethernet ports (one configurable WAN/LAN), single-band Wi-Fi 4 (802.11b/g/n), and a rugged aluminium enclosure suitable for DIN rail or wall mounting. Powered by a Mediatek MIPS processor and RutOS (OpenWrt-based), it offers advanced VPN support and remote management capabilities.

Advantages

Reliable 4G LTE connectivity with fallback to 3G/2G ensures uninterrupted operation. Compact design with flexible mounting options (DIN rail, wall mount) makes it ideal for industrial cabinets. Robust VPN support (OpenVPN, IPsec, WireGuard, and more) secures data transmission. Wide power input range (9-30 VDC) and extended operating temperature range (-40 °C to 75 °C) suit harsh environments.

Suitable for

• Industrial IoT applications requiring cellular backup
• Remote monitoring and control systems
• Transportation and logistics connectivity
• Retail and digital signage networks
• Smart city infrastructure

Key specifications

• Mobile connectivity: 4G LTE Cat 4 (up to 150 Mbps DL / 50 Mbps UL), 3G, 2G
• Wi-Fi: IEEE 802.11b/g/n, up to 300 Mbps, single-band 2.4 GHz
• Ethernet: 2 x 10/100 Mbps (1x WAN/LAN configurable, 1x LAN)
• SIM slot: 1 x Mini SIM (2FF)

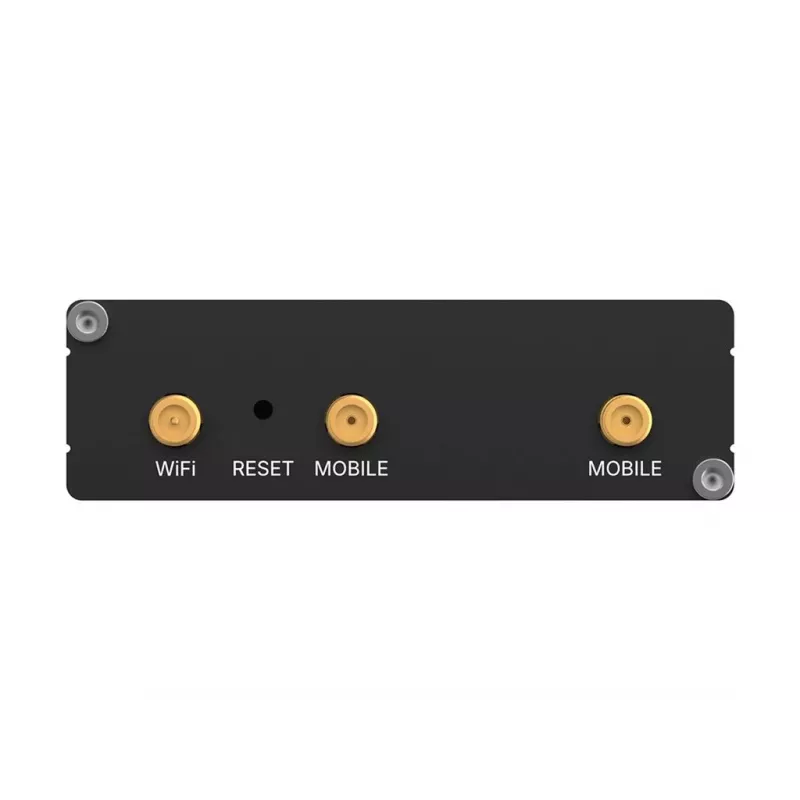

• Antenna connectors: 2 x SMA (LTE), 1 x RP-SMA (Wi-Fi)
• Processor: Mediatek MIPS 24Kc, 580 MHz
• Memory: 128 MB RAM, 16 MB Flash
• Power input: 9-30 VDC (DC jack)
• Operating temperature: -40 °C to 75 °C
• Mounting: DIN rail, wall mount
• OS: RutOS (OpenWrt based Linux)
• VPN: OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, SSTP, Stunnel
• Digital I/O: 1 x Digital Input, 1 x Digital Output
• Enclosure: Aluminium
• Max Wi-Fi clients: 50
• Management: Web UI, CLI, SSH, SMS, TR-069, MQTT, SNMP, JSON-RPC, Modbus

Recommendations

For optimal performance, use high-gain external antennas (sold separately) in areas with weak cellular signals. The router supports a wide range of industrial protocols and can be integrated into existing SCADA or M2M systems. Ensure the SIM card is activated and compatible with the required network bands.
