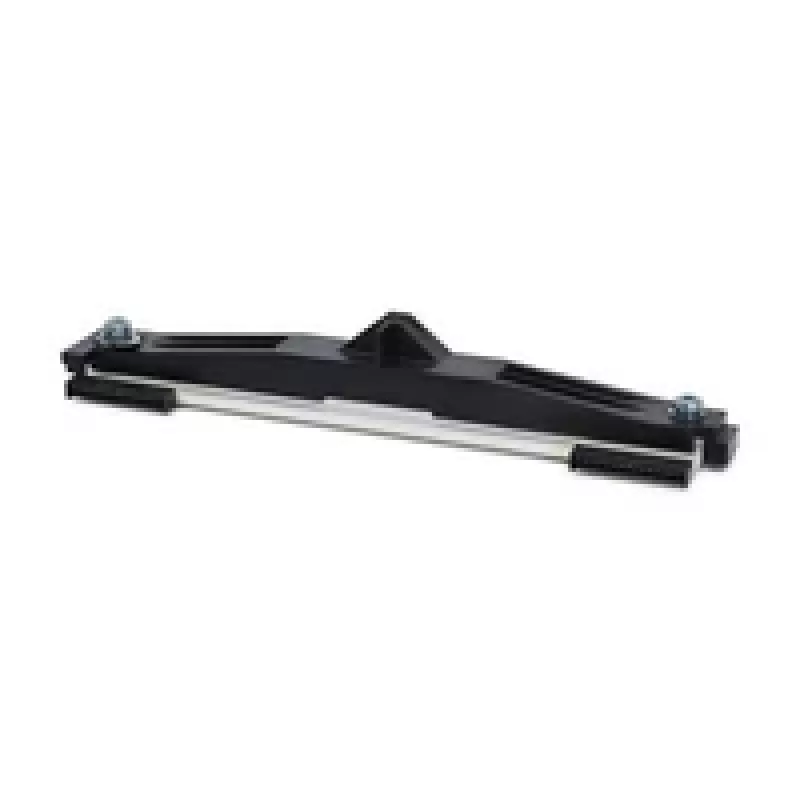

Termotlačová hlava Zebra P1115689 pre Zebra ZD220 ZD230, 203 DPI

Replacement 203 DPI printhead compatible with Zebra ZD220 and ZD230 direct thermal desktop printers. This printhead restores printing quality for labels and receipts printed at 203 dots per inch and is intended for service and maintenance of compatible Zebra desktop models. Designed to fit the printers mentioned, it helps recover consistent thermal transfer performance and reduces printer downtime when the original printhead shows wear or damage.

Advantages

The printhead provides native 203 DPI resolution for clear, legible text and barcode reproduction on direct thermal media. It is manufactured to meet the mechanical and thermal requirements of Zebra ZD220 and ZD230 printers, enabling uniform heat distribution and extended printhead life when installed and used according to manufacturer guidelines. Compatible replacement parts simplify repairs and reduce the need to replace the entire printer, helping to restore reliable output quickly.

Suitable for

• Repair and maintenance of Zebra ZD220 and ZD230 direct thermal desktop printers
• Printing labels, tags and receipts requiring 203 DPI resolution
• Environments that need quick onsite replacement to minimize downtime

Key specifications

• Resolution: 203 dots per inch (DPI)
• Technology: direct thermal printhead
• Form factor: desktop printer printhead for compatible models
• Primary use: label and receipt printing on direct thermal media

How to use

Power off the printer and open the printhead access according to the printer’s service instructions. Carefully remove the worn printhead following antistatic precautions and avoid touching the heating elements. Install the replacement printhead into the correct mounting points, reassemble any retained components and close the access cover. Power on the printer, run a calibration or self-test, and verify print quality using sample labels before returning the printer to regular use.

Recommendations

Use compatible direct thermal media and avoid abrasive or contaminated labels that can accelerate wear. Perform routine cleaning of platen rollers and sensor areas to maximize printhead life. If print irregularities persist after replacement, inspect ribbon/label path and printer firmware/settings to ensure correct configuration for 203 DPI operation.
