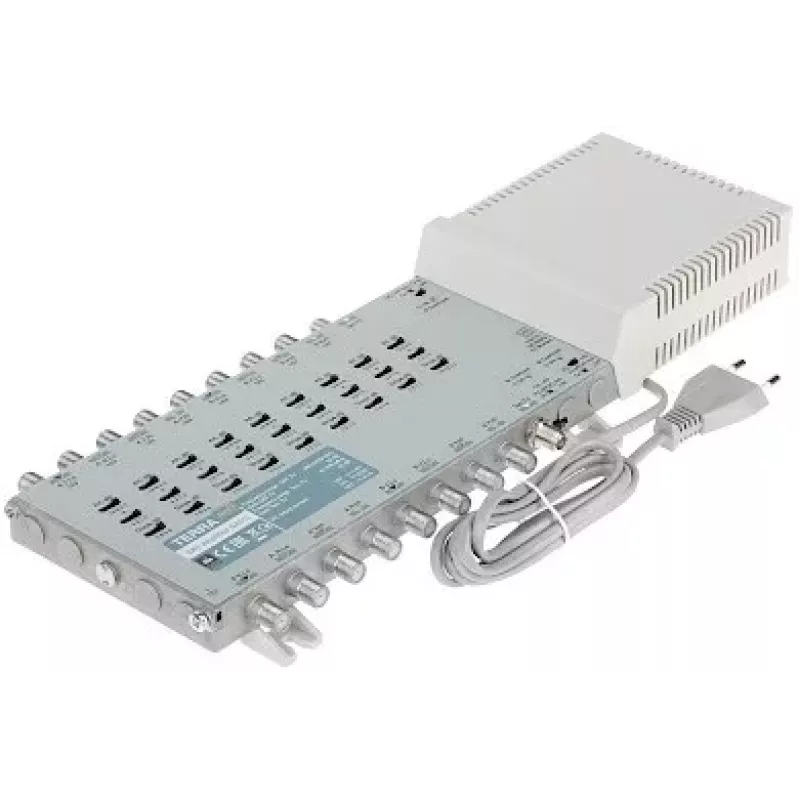

TERRA SA-91L multiswitch linkový zosilňovač 9 vstupov / 9 výstupov

The TERRA SA-91L is a professional multiswitch line amplifier designed for distributing satellite and terrestrial TV signals in multi-dwelling units and small to medium-sized headend systems. With 9 inputs and 9 outputs (8 satellite + 1 terrestrial), it compensates for signal losses in long cable runs and provides stable, high-quality signal distribution.

Advantages

• Compensates for signal loss in multiswitch systems
• 9 inputs and 9 outputs for flexible signal routing
• Adjustable gain (0-15 dB) for both satellite and terrestrial paths
• Low noise figure ensures excellent signal quality
• DC pass on satellite lines for LNB powering (13V/18V, 0/22kHz, DiSEqC)
• Compact metal housing for durability and shielding

Suitable for

• Multi-dwelling units (apartment buildings, hotels)
• Small headend systems
• SMATV installations
• Any installation requiring signal amplification after a multiswitch

Key specifications

• Product Type: Multiswitch Line Amplifier
• Number of Inputs: 9 (8 satellite, 1 terrestrial)
• Number of Outputs: 9 (8 satellite, 1 terrestrial)
• Frequency Range Satellite: 950-2150 MHz
• Frequency Range Terrestrial: 47-862 MHz
• Gain Satellite: 22 dB
• Gain Terrestrial: 18 dB
• Gain Adjustment: 0-15 dB continuous (both paths)
• Max Output Level Satellite: 110 dBµV (IMD3 -35dB)
• Max Output Level Terrestrial: 105 dBµV (IMD3 -60dB)
• Noise Figure Satellite: <6 dB
• Noise Figure Terrestrial: <8 dB
• Connectors: F-type
• Power Supply: 230V AC, 50/60 Hz
• Power Consumption: <10 W
• DC Pass: Yes, selectable for LNB powering
• LNB Powering: 13V/18V, 0/22kHz, DiSEqC pass-through
• Isolation SAT-SAT: >30 dB
• Housing Material: Metal

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The SA-91L is designed for indoor use only. When powering LNBs via DC pass, verify total current draw does not exceed the amplifier's capacity.
