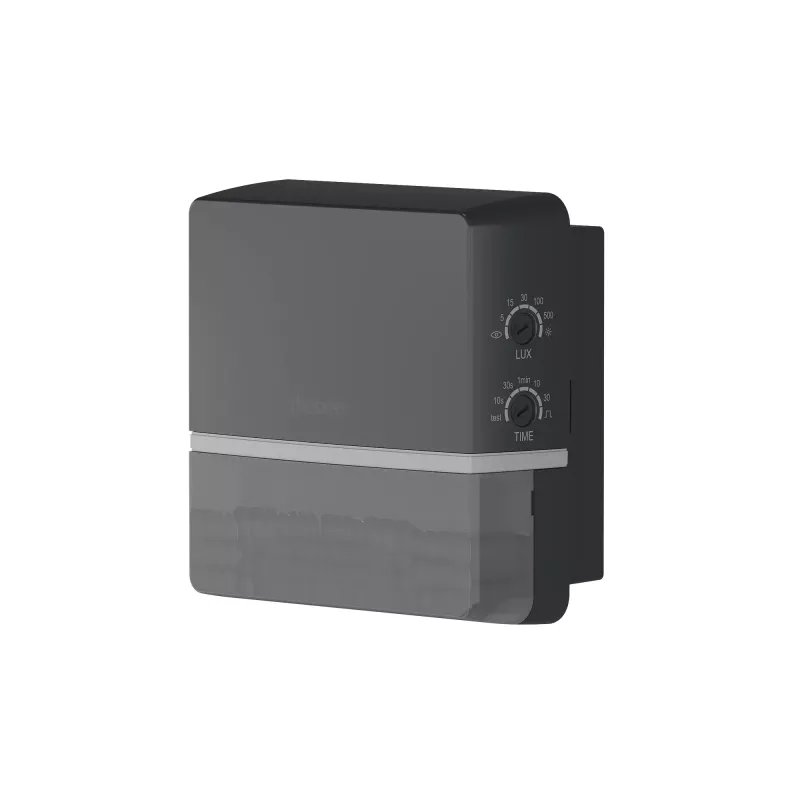

Theben TECTA D180 AN detektor pohybu nástenná montáž 180° 14 m antracit 1010101

For outdoor lighting control in residential and commercial settings, the Theben TECTA D180 AN motion detector offers reliable presence detection with a 180° field of view and a 14 m range. Its anthracite housing blends with modern façades, and surface wall mounting keeps installation straightforward.

Key specifications

• Detection angle: 180°
• Detection range: 14 m
• Mounting type: Wall mounting (surface-mounted)
• Colour: Anthracite
• IP rating: IP55
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity incandescent/halogen: 2300 W
• Switching capacity LED: 1150 W
• Time setting: 5 s – 15 min
• Brightness setting: 5 – 1000 lux
• Recommended installation height: 1.8 – 2.5 m
• Sensor type: Passive infrared (PIR)
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Standby power consumption: 0.9 W
• Output: 1 NO contact (relay)
• Manual override: Yes (via external push button)
• Protection class: II

Why choose it

The TECTA D180 AN handles high switching loads up to 2300 W for traditional lighting and 1150 W for LED, making it suitable for demanding outdoor circuits. Adjustable time and brightness settings let you fine-tune activation to avoid unnecessary switching.

Ideal use cases

• Entrance areas and driveways
• Building perimeters and loading zones
• Garden paths and patios

Good to know

The detector uses a passive infrared sensor and includes a manual override function via an external push button for temporary continuous lighting. Its UV-stabilised polycarbonate housing withstands weather exposure.
