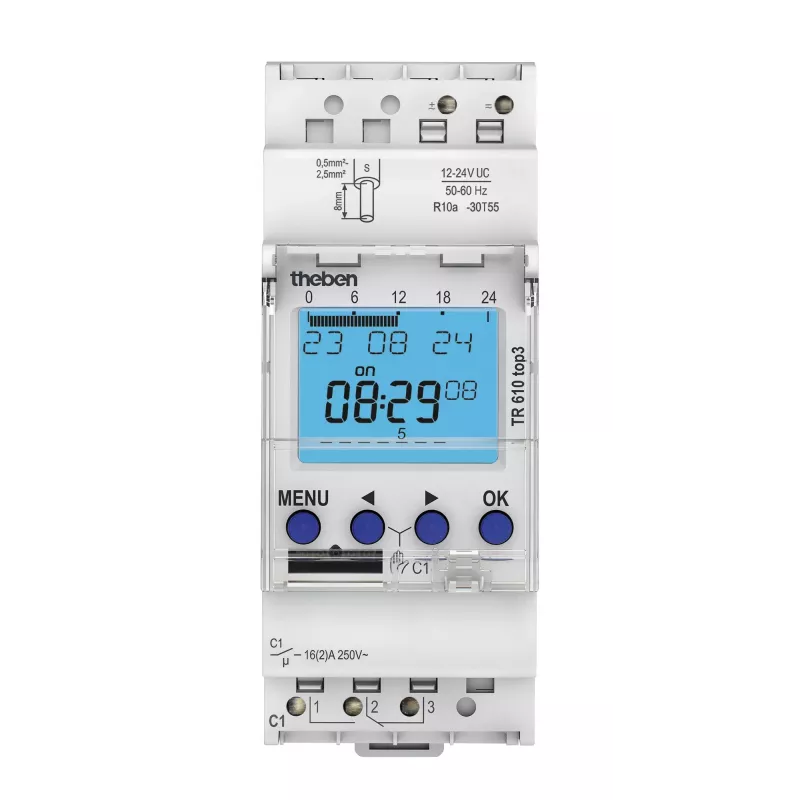

THEBEN TR 610 top3 12-24V digitálne týždenné časové relé, 1 kanál, DIN lišta, 16 A 6104130

The THEBEN TR 610 top3 is a digital weekly time switch for DIN rail mounting, offering precise control of lighting, heating, ventilation, and other electrical loads. Its standout feature is the high-resolution LCD display with backlight, enabling clear programming and status monitoring even in low-light conditions.

Advantages

This time switch provides flexible weekly programming with 84 memory locations, allowing up to 84 switching commands per week. The minimum switching time of 1 minute ensures precise control for short-duration operations. A 10-year power reserve via lithium battery maintains the time and program settings during power outages, eliminating the need for reprogramming. Zero-cross switching extends relay life by reducing contact wear. Additional features include a holiday program, random program for presence simulation, PIN code protection, and an operating hours counter. Programming is possible directly via device buttons or conveniently through the Theben-Connect app using NFC.

Suitable for

• Control of lighting circuits in residential and commercial buildings
• Heating and ventilation system scheduling
• Automation of pumps, motors, and other electrical loads
• Applications requiring precise weekly time control with high switching capacity

Key specifications

• Operating voltage: 12-24 V AC/DC
• Number of channels: 1
• Switching output: 1 changeover contact (SPDT)
• Switching capacity: 16 A resistive load at 250 V AC
• Shortest switching time: 1 minute
• Memory locations: 84
• Power reserve: 10 years (lithium battery)
• Display: High-resolution LCD with backlight
• Mounting: DIN rail, 2 TE (35 mm)
• Protection class: IP20
• Operating temperature: -30 °C to +55 °C
• Programming: Device buttons, NFC via Theben-Connect app
• Zero-cross switching: Yes
• Holiday program: Yes
• Random program: Yes
• PIN code protection: Yes
• Operating hours counter: Yes
• Power consumption: ~0.5 W

Recommendations

For reliable and precise weekly time control in industrial and commercial environments, the THEBEN TR 610 top3 offers a robust solution with extensive programming capabilities and long-term power reserve.
