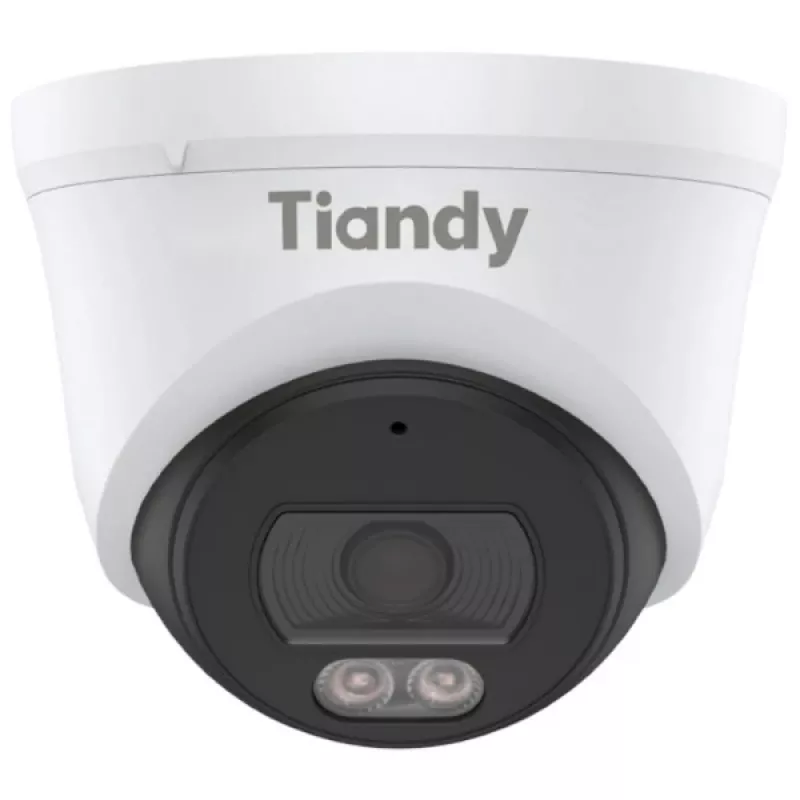

TIANDY TC-C36XN 2ENA-28 Spark Series 6MP IR IP kamera, 2,8 mm, H.265, PoE, IP67

The TIANDY TC-C36XN 2ENA-28 Spark Series IP camera delivers 6 Megapixel (3072x2048) resolution at 20fps, featuring a 2.8mm fixed lens with 105° horizontal field of view. Equipped with 120dB Super WDR, IR night vision up to 30m, and smart analytics including human detection, this camera is ideal for indoor and outdoor surveillance.

Advantages

High-resolution 6MP imaging with H.265 compression reduces bandwidth and storage requirements. The 120dB WDR ensures clear images in challenging lighting conditions. IP67 weatherproof housing and wide operating temperature range (-35°C to 65°C) make it suitable for outdoor use. PoE support simplifies installation with a single cable for power and data.

Suitable for

• Perimeter security for commercial and residential properties
• Retail stores, warehouses, and parking lots
• Indoor areas requiring high detail, such as entrances and corridors

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 3072x2048 (6MP)
• Frame Rate: 20fps @ 6MP
• Lens: 2.8mm fixed, FOV 105°
• IR Range: Up to 30m
• Video Compression: H.265, H.264, MJPEG
• WDR: 120dB
• Audio: Built-in microphone
• Storage: MicroSD up to 512GB
• Network: 1x RJ45 10/100Mbps
• Power: DC 12V / PoE (802.3af), max 6.5W
• Weather Rating: IP67
• Smart Analytics: Motion detection, line crossing, intrusion, human detection
• Operating Temperature: -35°C to 65°C

Recommendations

For optimal performance, use a PoE switch or injector (802.3af). Pair with a compatible NVR for centralized recording and management. Ensure the microSD card is high endurance for continuous recording.
