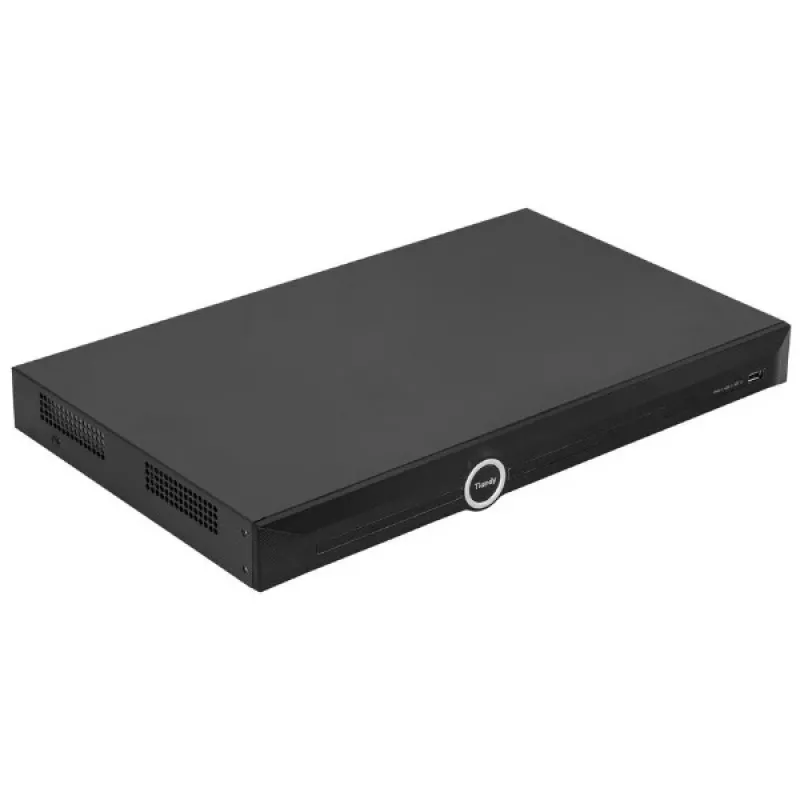

Tiandy TC-R3220 416HA 20-kanálový 16-PoE Lite sieťový videorekordér (NVR)

The Tiandy TC-R3220 416HA is a high-performance 20-channel Network Video Recorder (NVR) designed for professional surveillance systems. With 16 integrated PoE Lite ports (IEEE 802.3af/at) and a total PoE budget of 130W, it simplifies installation by powering IP cameras directly. Supporting up to 4K recording resolution and advanced H.265+ compression, this NVR delivers exceptional video quality while optimizing storage and bandwidth.

Advantages

• 20-channel IP video input with 16 PoE ports for easy camera connectivity
• 4K recording resolution for detailed surveillance footage
• H.265+/H.265/H.264+/H.264 compression reduces storage needs
• Dual SATA bays supporting up to 20TB total storage (10TB per bay)
• 160 Mbps incoming bandwidth ensures smooth multi-camera recording
• HDMI and VGA outputs for flexible display options
• Alarm inputs/outputs for integration with security systems

Suitable for

• Medium to large retail stores, offices, and warehouses
• Educational campuses and public facilities
• Any environment requiring reliable 24/7 video surveillance with PoE convenience

Key specifications

• Video Input: 20 IP channels
• PoE Ports: 16 (IEEE 802.3af/at, 130W budget)
• Max Recording Resolution: 4K (3840 x 2160)
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 80 Mbps
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA In, 1x RCA Out
• HDD Bays: 2x SATA (up to 10TB each, total 20TB)
• Network: 1x RJ45 10/100/1000 Mbps
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Alarm: 4x In, 1x Out
• Power: DC 48V
• Operating Temperature: -10°C to 55°C

Recommendations

For optimal performance, pair this NVR with Tiandy IP cameras and use high-quality CAT5e or CAT6 cables for PoE connections. Ensure adequate ventilation and consider a UPS for uninterrupted operation.
