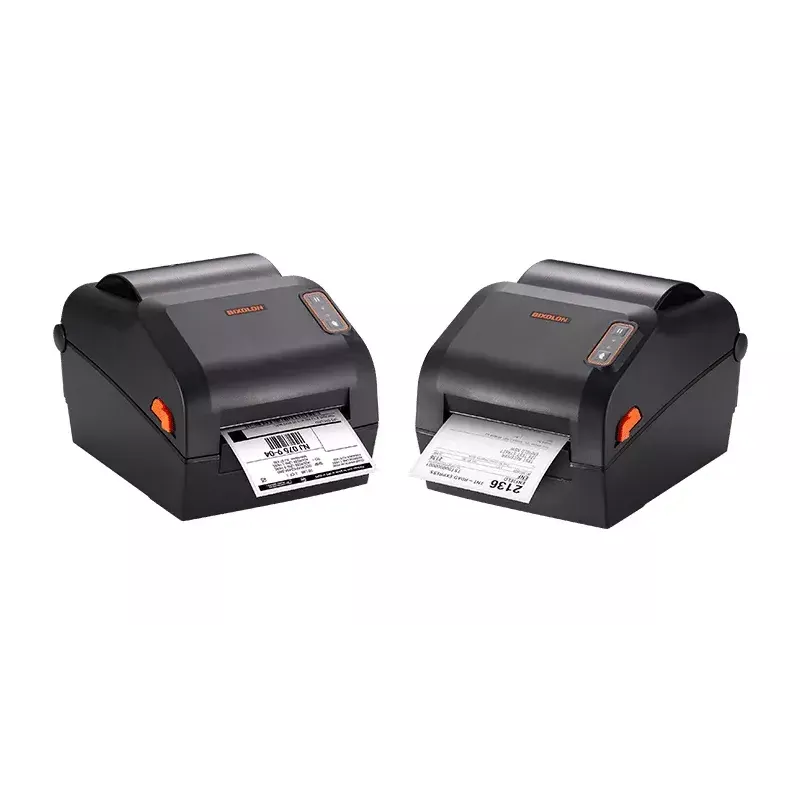

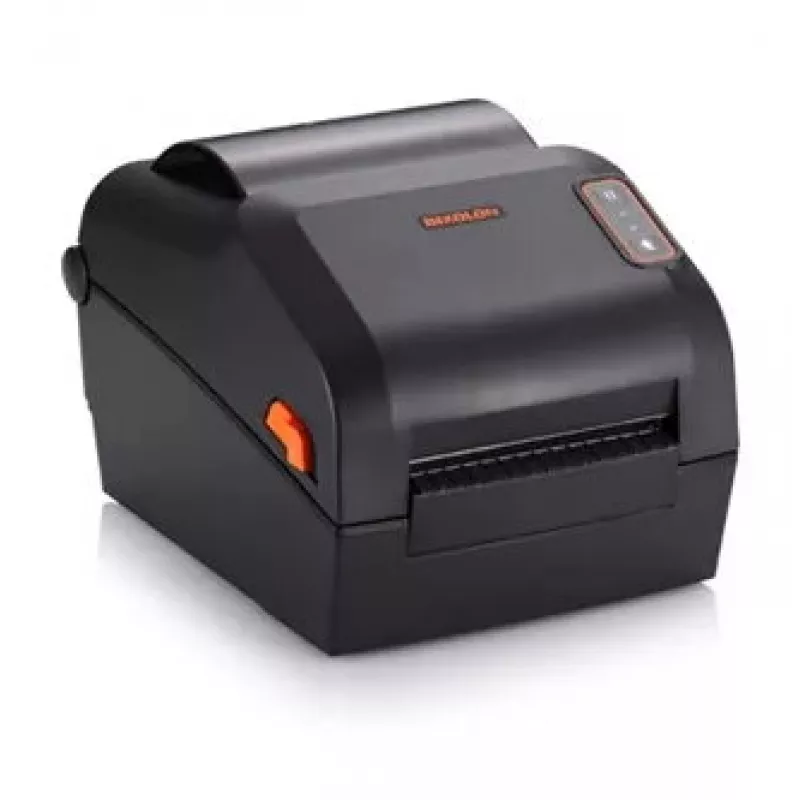

Tlačiareň etikiet Bixolon XD5-40d

The Bixolon XD5-40d is a 4-inch (118 mm) direct thermal desktop label and barcode printer designed for mid-level labelling needs in manufacturing, transport and logistics, retail and healthcare. The compact clamshell design includes up to 256 MB SDRAM and 256 MB Flash memory, supports a maximum print width of 108 mm and delivers print speeds up to 178 mm/sec (7 ips) at 203 x 203 DPI. The model supports field-installable accessories such as a peeler, auto cutter and external paper supply, and accepts media rolls up to 127 mm diameter. Smart Media Detection™ automatically recognises gap, black mark, continuous or notch media formats. The unit ships with a standard 2-year warranty.

Advantages

The XD5-40d offers fast direct thermal printing with reliable wired connectivity and multiple optional interfaces. Its clamshell case provides easy media loading and the enhanced memory supports complex label formats and faster data processing. Optional consumable-handling accessories (peeler, cutter, external supply) and an optional visual LCD increase operational flexibility. Compatibility with common programming languages (SLCS™, BPL-Z™, BPL-E™) and BIXOLON software tools (XPM™, Label Artist-II™) simplifies integration into existing systems.

Suitable for

• Product and asset labelling in manufacturing
• Shipping and logistics labels in transport and warehousing
• Price tags and shelf labels in retail
• Specimen and sample labelling in healthcare

Key specifications

• Print technology: Direct thermal
• Resolution: 203 x 203 DPI
• Maximum print width: 108 mm
• Print speed: Up to 178 mm/sec (7 ips)
• Memory: Up to 256 MB SDRAM / 256 MB Flash
• Media roll diameter: Up to 127 mm
• Accessories (optional): Peeler, Auto Cutter, External Paper Supply
• Connectivity (standard): Dual USB 2.0, USB Host — optional: Dual-WLAN, Dual-Bluetooth, Serial, Ethernet
• Weight: 1.89 kg
• Colour: Black

How to use

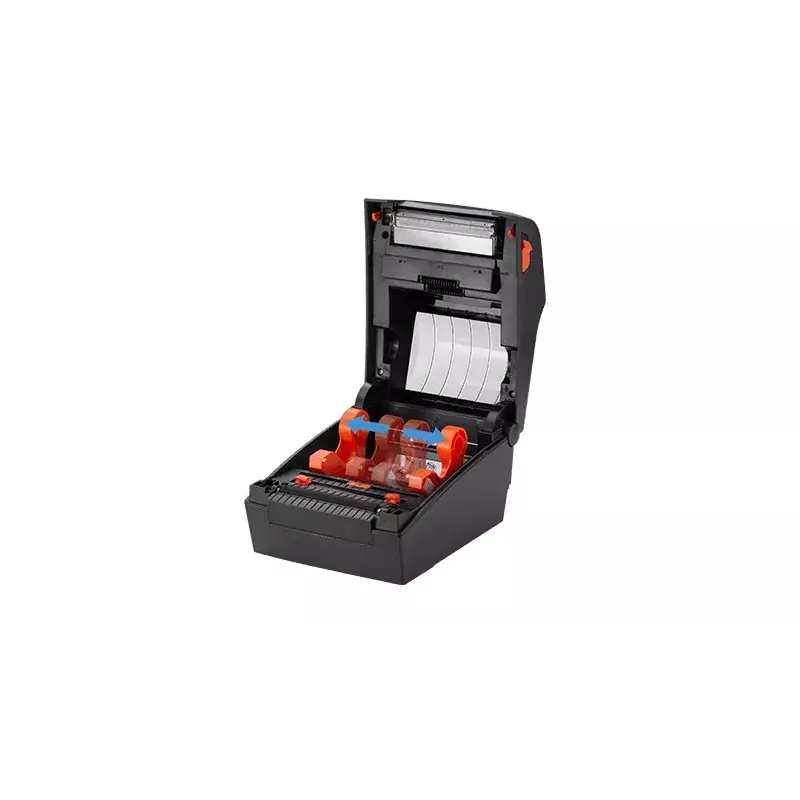

Open the clamshell housing to load label media and set the adjustable paper guide and holder for the required roll width. Select the correct media type so Smart Media Detection™ can identify gap, black mark, continuous or notch formats. Connect the printer to a host using the USB 2.0 port or an optional network interface, install the appropriate drivers and configure print settings via BIXOLON software or supported programming language. For multi-device deployment, use the USB host Twin Function™ to duplicate settings and data to other printers.

Recommendations

Use direct thermal media appropriate for your application and store rolls in a cool, dry place to preserve print quality. For high-volume or durable label requirements, consider service intervals and using the optional auto cutter or external paper supply to reduce downtime.
