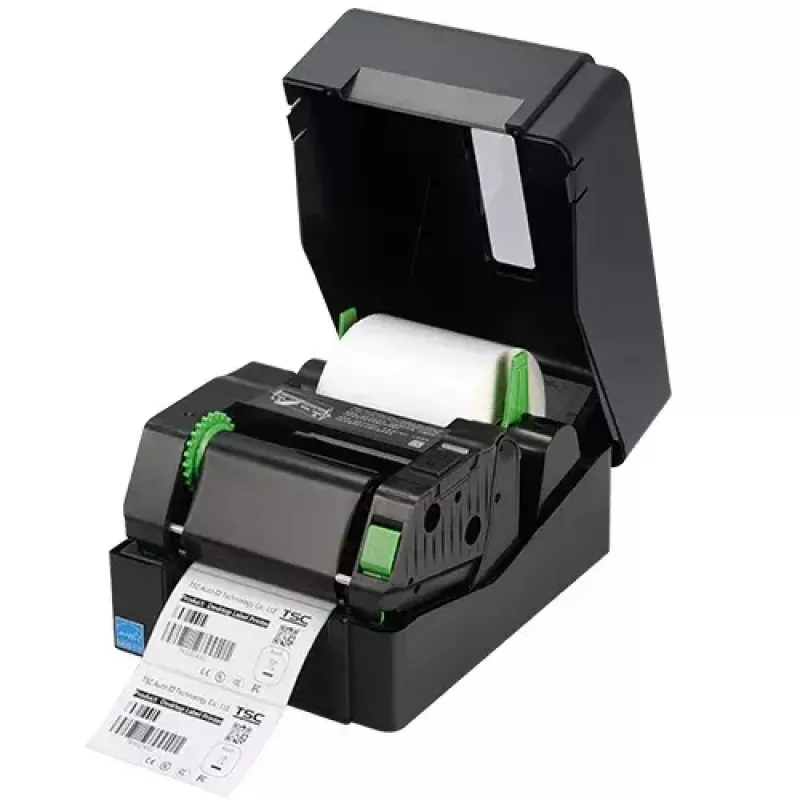

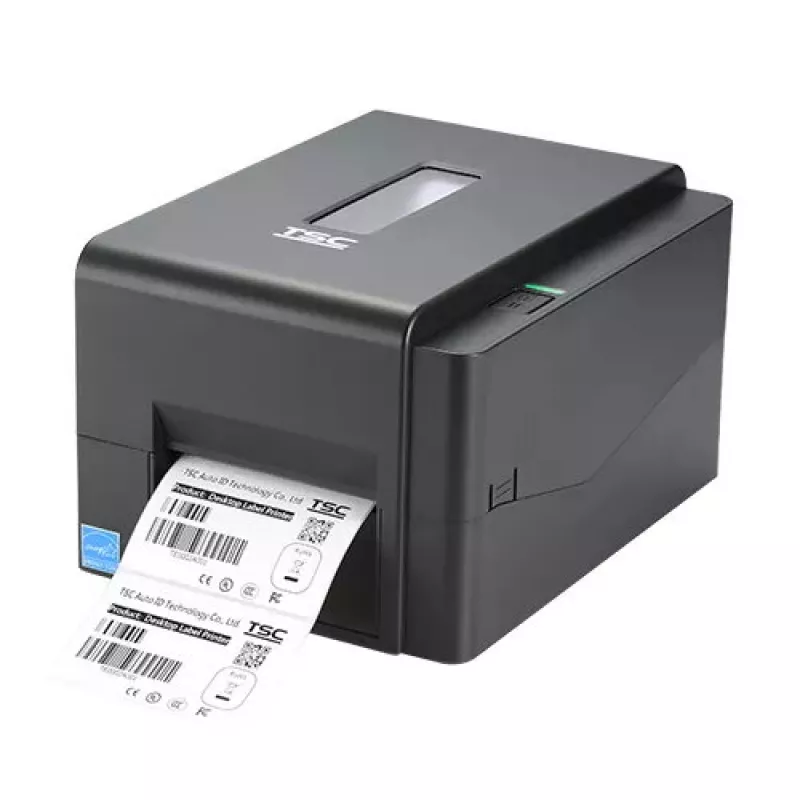

Tlačiareň etikiet TSC TE310 priama termotlač termotransfer

The TSC TE310 is a 4-inch desktop label printer that supports both direct thermal and thermal transfer printing. It delivers up to 300 dpi (300 x 300 DPI) resolution and a maximum print speed of 127 mm/s, handling label widths from 20 to 112 mm. The compact black chassis includes wired Ethernet LAN connectivity and a durable print mechanism designed for continuous use in office, retail, shipping and light industrial environments.

Advantages

The TE310 combines high-resolution printing with a robust 400 MHz-class processor and scalable memory configurations to balance price and performance. It accepts multiple ribbon core sizes and large media rolls, features tool-free replacement of the printhead and platen roller, and offers both gap and black mark sensing for reliable label registration. Energy Star–rated efficiency and broad printer language emulations simplify integration into existing label workflows.

Suitable for

• Shipping and logistics labels
• Product identification and compliance labels
• Retail and point-of-sale labeling
• Inventory and stock-room control
• Light industrial labeling and service centers

Key specifications

• Print technology: Direct thermal and thermal transfer
• Maximum resolution: 300 x 300 DPI
• Maximum print speed: 127 mm/s (approx. 6 in/s)
• Maximum printing width: 105.7 mm (supports 20–112 mm media)
• Processor: 400 MHz class
• Memory: model-dependent scalable DRAM and Flash (see manufacturer details)
• Connectivity: Ethernet LAN (wired)
• Display: No
• Weight: 2.5 kg
• Colour: Black

How to use

Install the TE310 on a stable surface and connect it to power and your network via the wired Ethernet port. Load label media and, if using thermal transfer mode, install an appropriate ribbon on either a 0.5-inch core (72–110 m) or 1-inch core (up to 300 m) as supported. Configure label size, print speed and darkness using the printer driver or web/utility interface, then send print jobs from your point-of-sale or inventory software. Replace the printhead or platen roller without tools when required, following the manufacturer’s replacement procedure.

Recommendations

Use high-quality thermal transfer ribbons and media matched to the print mode and application. Choose ribbon core size and external unwinder options to accommodate larger roll diameters when high-volume printing is needed. Regularly clean the printhead and platen roller to maintain print quality and extend component life.
