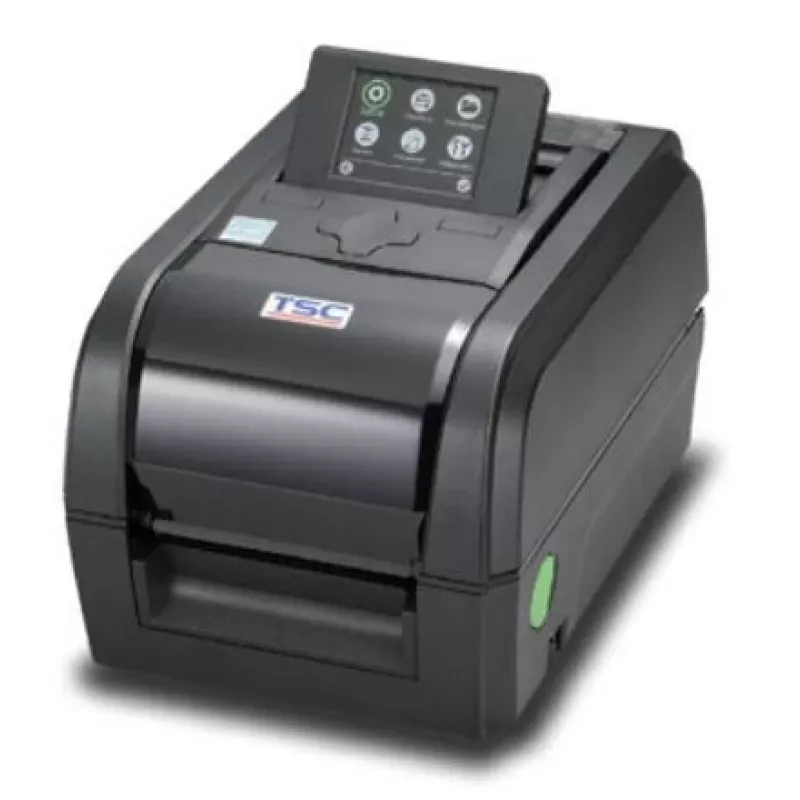

Tlačiareň etikiet TSC TX310 300 dpi s USB a Ethernet konektorom

TSC TX310 is a desktop thermal transfer label printer with 300 dpi (12 dots/mm) resolution, designed for on-demand printing of labels and tags in retail, logistics, manufacturing and office environments. It supports media up to 112 mm wide and a maximum print width of 106 mm, and accepts rolls with a maximum diameter of 127 mm. Built-in interfaces include USB 2.0, USB Host, RS232 and 10/100 Mbit Ethernet, plus a Micro SD slot for additional storage. The printer ships with a USB cable, power supply, power cable, label printing software and a quick start guide.

Advantages

The TX310 provides high-resolution 300 dpi thermal transfer printing for sharp barcodes and readable text, plus a fast maximum print speed of 152 mm/s to handle moderate-volume jobs. Multiple connectivity options—USB, USB Host, serial RS232 and Ethernet—allow easy integration into local systems or shared networks. With 128 MB RAM and 128 MB flash memory, the device supports complex label formats and stores templates on internal memory or an inserted Micro SD card. The compact desktop design fits office and production spaces while supporting standard media roll sizes.

Suitable for

• Retail price tags and shelf labels
• Shipping, logistics and warehouse labels
• Manufacturing part identification and serial-number labels
• Office labeling and asset tagging

Key specifications

• Print method: Thermal transfer
• Resolution: 300 dpi (12 dots/mm)
• Max media width: 112 mm
• Max print width: 106 mm
• Max roll diameter: 127 mm
• Max print speed: 152 mm/s
• Interfaces: USB 2.0, USB Host, RS232, Ethernet 10/100 Mbit
• Memory: 128 MB RAM, 128 MB Flash; Micro SD slot
• Emulation: TSPL-EZ
• Included: USB cable, power supply unit, power cable, label printing software, quick start guide

How to use

Install the provided label printing software on your computer, connect the printer via USB or Ethernet and follow the quick start guide to load media and install the ribbon for thermal transfer printing. Configure print settings such as resolution, label size and speed within the software or using printer emulation TSPL-EZ. Store templates or fonts on the internal flash memory or a Micro SD card for repeated use. Use the USB Host port to connect peripheral devices such as a keyboard or scanner if required by your workflow.

Recommendations

Use high-quality thermal transfer ribbons matched to the label material to ensure durable prints, and select 300 dpi settings for small barcodes or fine text. When installing rolls, keep the maximum roll diameter and media width limits in mind. For networked environments, assign a static IP via the printer’s network settings to ensure consistent access from multiple workstations.
