Tlačidlo DELOCK 22034 12 mm, 2× skrutková svorka, zelená

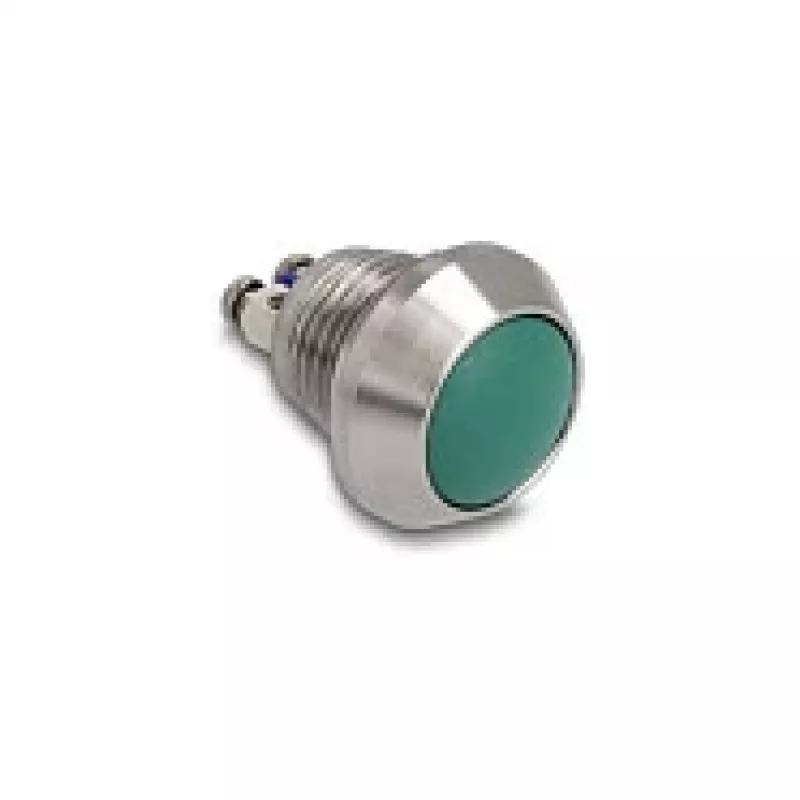

The DELOCK Push Button 22034 is a panel-mounted manual switch with a 12 mm mounting diameter and a green actuator. It features two screw terminal connections for straightforward wiring and is intended for use in control circuits, test rigs, industrial equipment panels or DIY electronic projects. The compact design and standard mounting size make it compatible with common panel cutouts and allow quick replacement or integration into existing control assemblies.

Advantages

The push button provides a compact footprint and reliable mechanical operation with screw terminals that secure conductors without special connectors. The 12 mm mounting diameter conforms to common panel standards, enabling easy installation. The green actuator offers clear visual identification of the control function and the robust construction is suited to repeated manual operation.

Suitable for

• Control panels for industrial machinery and test equipment
• Laboratory rigs and prototype electronics
• DIY automation and hobby electronics projects
• Replacement or upgrade of existing panel switches

Key specifications

• Mounting diameter: 12 mm panel cutout
• Actuator colour: green
• Connection type: 2 screw terminals for wire fastening
• Switch type: manual push button (momentary or latching function depends on wiring and internal contact design)
• Panel mounting: designed for front-panel installation
• Mechanical durability: designed for repeated manual actuations (typical for panel push buttons)

How to use

Prepare a 12 mm circular cutout in the panel and insert the push button from the front side until it seats securely. Fasten the unit according to the panel mounting method (press-fit or retaining nut if provided). Connect the required conductors to the two screw terminals, ensuring wires are stripped to the correct length and screws are tightened to a secure torque to avoid loose connections. Verify correct wiring in the control circuit and test the button operation under low-power conditions before full system use.

Recommendations

Use conductors of suitable diameter for the screw terminals, avoid over-tightening screws, and ensure the panel cutout edges are free of burrs to prevent damage to the housing. Confirm the required electrical characteristics (voltage/current rating) of the installed switch for the specific application and, if necessary, add protective components such as fuses or contactors when switching higher loads.
