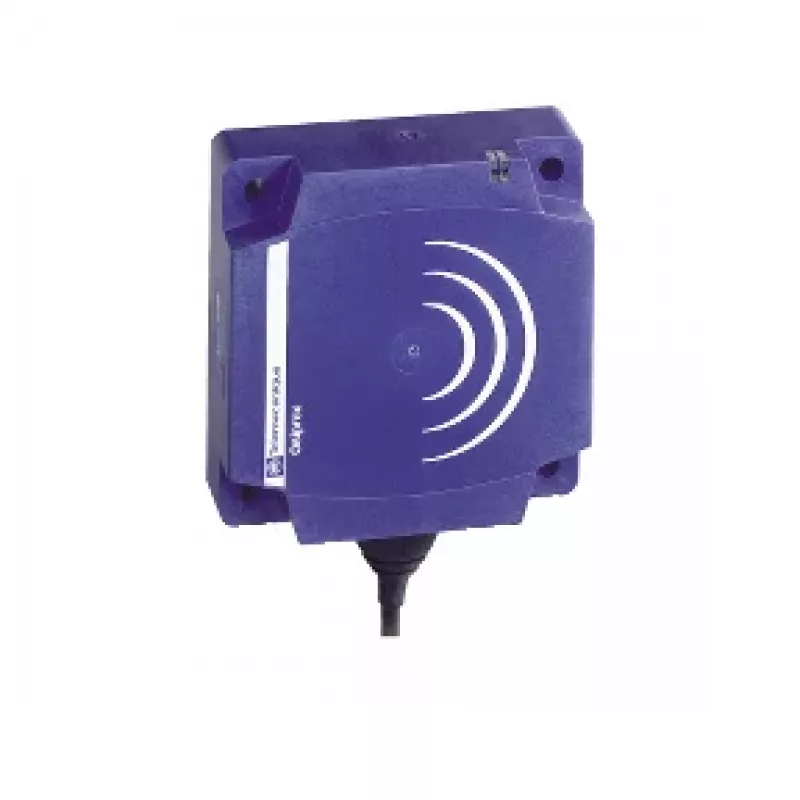

TMSS Germany Telemechanique Sensors indukčný snímač priblíženia 20-264V AC/DC, 2m kábel XS8D1A1MAL2

Inductive proximity sensor with a 60 mm sensing distance, operating on 20-264 V AC/DC and featuring a 2 m PVC cable for flexible installation.

Advantages

Flat rectangular design with PBT housing and detection face ensures durability in industrial environments. The 2-wire AC/DC output simplifies wiring, while short-circuit and overload protection enhance reliability. A yellow LED provides clear output status indication.

Suitable for

• Detection of metallic objects in automation systems
• Applications requiring long sensing distances up to 60 mm
• Environments with IP67 protection requirements

Key specifications

• Sensor type: Inductive proximity sensor
• Series: OsiSense XS
• Nominal sensing distance: 60 mm
• Operating voltage: 20-264 V AC/DC
• Output type: 2-wire AC/DC, normally open
• Switching frequency: ≤100 Hz
• Connection: 2 m PVC cable
• Protection rating: IP67
• Operating temperature: -25 to 70 °C
• Housing material: Plastic (PBT)

Recommendations

Ideal for harsh industrial settings where a robust, long-range sensor with simple wiring is required.
