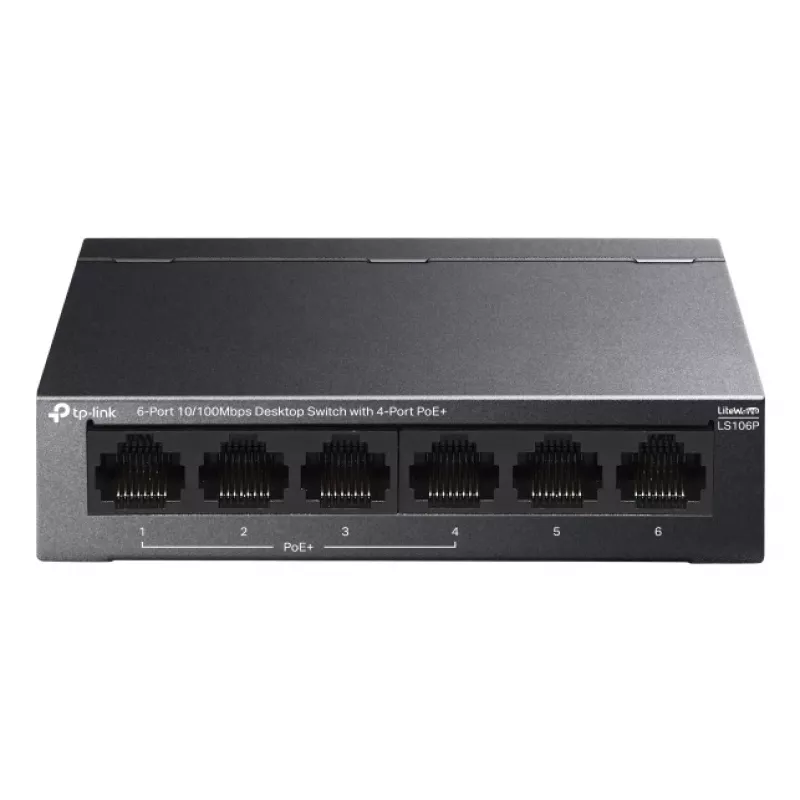

TP-LINK LS106P 6-portový 10/100 Mbps desktopový switch so 4-portovým PoE+

The TP-LINK LS106P is a 6-port unmanaged desktop switch featuring 4 PoE+ ports, designed to provide reliable network connectivity and power to devices such as IP cameras, VoIP phones, and wireless access points. With a total PoE power budget of 67 W, it simplifies deployment by eliminating the need for separate power cables for each powered device.

Advantages

This switch offers a cost-effective and easy-to-use solution for small businesses and home offices. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments. The metal casing provides durability, while plug-and-play installation requires no configuration.

Suitable for

• Small office/home office (SOHO) networks
• Surveillance systems with PoE IP cameras
• VoIP phone deployments
• Wireless access point installations

Key specifications

• 6 Fast Ethernet ports (10/100 Mbps)
• 4 PoE+ ports (IEEE 802.3af/at) with 67 W total budget
• 2 uplink ports
• Switching capacity: 1.2 Gbps
• Packet forwarding rate: 0.89 Mpps
• MAC address table: 2K
• Jumbo frame support: 2 KB
• Fanless design for silent operation
• External power adapter (53.5VDC/1.31A)
• LED indicators for Power, Link/Act, PoE Status
• Operating temperature: 0–40 °C
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure the total power consumption of connected PoE devices does not exceed 67 W. This switch is not rack-mountable; it is designed for desktop placement.
