TP-Link TL-MR100-OUTDOOR WLAN router Fast Ethernet single-band (2,4 GHz) 4G biely

The TP-Link TL-MR100-Outdoor provides dependable 4G LTE internet connectivity with combined Wi‑Fi performance up to 300 Mbps on the 2.4 GHz band. Designed for outdoor installation, the unit supports durable operation in extreme conditions and offers multiple mounting options, PoE/DC power support, and simple setup via a web interface or the Tether mobile app.

Advantages

The router supports 4G LTE download speeds up to 150 Mbps and single‑band Wi‑Fi up to 300 Mbps (2.4 GHz), enabling internet access where fixed lines are unavailable. Its IP65‑rated enclosure, wide operating temperature range (-30 °C to 60 °C) and protection against lightning and ESD ensure stable performance in harsh outdoor environments. Flexible power options (802.3af PoE and passive PoE or DC) and several mounting methods (pole, wall, or window) simplify installation and placement for best signal reception. Setup and management are straightforward using the integrated web interface or the Tether app for Android and iOS.

Suitable for

• Providing outdoor internet access for small offices, kiosks, or remote sites
• Extending Wi‑Fi coverage to yards, patios, terraces, and outdoor seating areas
• Temporary or seasonal deployments where fixed broadband is not available
• Locations requiring weatherproofed cellular backhaul for reliable connectivity

Key specifications

• Mobile network: 4G LTE (supports LTE‑TDD and LTE‑FDD); compatible with 3G standards HSPA/HSPA+/UMTS
• LTE theoretical download up to 150 Mbps
• Wi‑Fi: Single‑band 2.4 GHz, Wi‑Fi 4 (802.11n), up to 300 Mbps
• Ethernet: Fast Ethernet (10/100Base‑T), 1 RJ‑45 LAN/WAN port
• Power: Supports 802.3af PoE and passive PoE, or DC input
• Environmental protection: IP65 weatherproof rating
• Operating temperature: -30 °C to 60 °C
• Surge/ESD protection: ±6 kV lightning protection and ±15 kV ESD protection
• SIM card slot for cellular internet
• Security: WPA, WPA‑PSK, WPA2, WPA2‑PSK

How to use

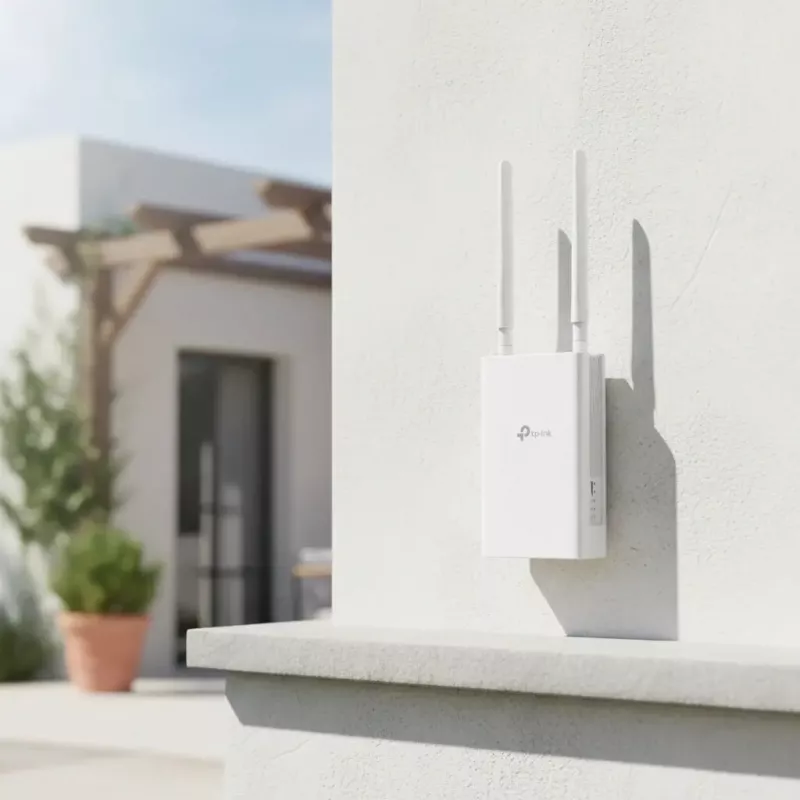

Insert a compatible SIM card into the SIM slot and connect the device to power via PoE or DC. Mount the unit on a pole, wall, or attach it to a window in a location with optimal cellular signal. Use the web interface or the Tether app on an Android or iOS device to complete initial configuration, select the network mode, set Wi‑Fi SSID and password, and configure basic security and access controls.

Recommendations

For best performance place the router where it has a clear view toward the nearest cell tower and avoid dense obstructions. Use PoE when running a single Ethernet cable to an elevated outdoor mounting point, and periodically check firmware updates via the web interface or Tether app.
