TP-Link Omada OC220 Business Gateway Controller 10 100 1000 Mbit/s čierny

The TP-Link Omada OC220 Gateway Controller is a compact business-grade device for centralized network management. Supporting Ethernet LAN speeds of 10/100/1000 Mbit/s, it enables unified control of Omada access points, gateways and switches and fits into small deployments with its 100 × 98 × 25 mm dimensions.

Advantages

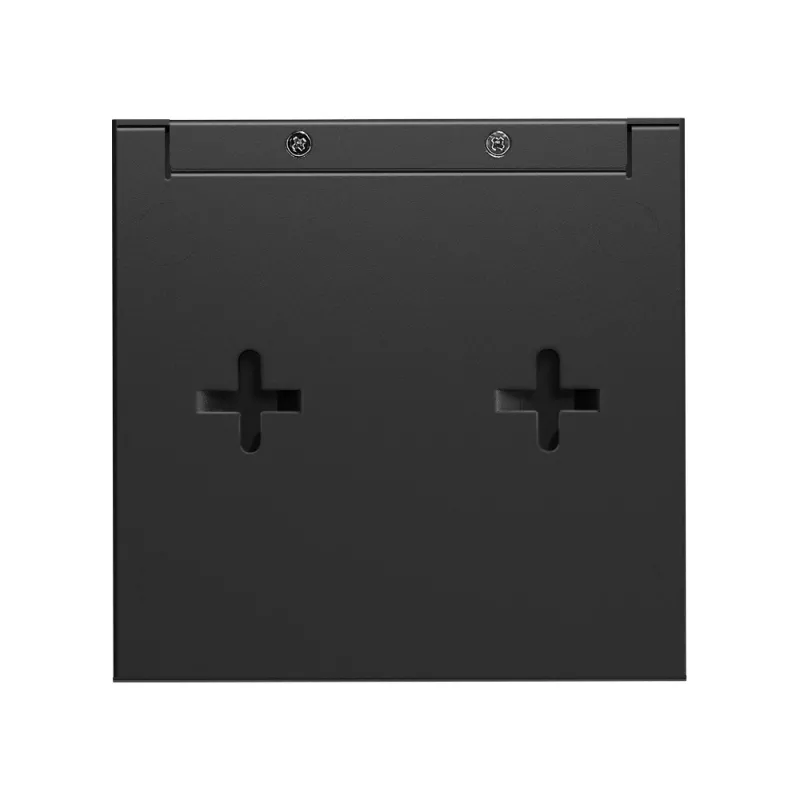

The OC220 provides centralized management for up to 100 Omada access points, 10 Omada gateways, and up to 20 Omada switches, with limited support for up to two compatible DeltaStream GPON OLTs. It offers both free cloud access via the Omada app or Web UI and on-premises management for local monitoring and privacy. The unit is built for business use with a robust chipset, metal casing, a USB 2.0 port for data backup and two Gigabit Ethernet ports. Power options include 802.3af PoE or Micro USB (DC 5V/Min 1A), and the compact form factor allows desktop placement or wall mounting.

Suitable for

• Small and medium-sized business networks requiring centralized device management
• Environments needing a mix of cloud and on-premises management
• Deployments with Omada access points, gateways and switches
• Locations where compact, low-profile hardware is preferred

Key specifications

• Model: TP-Link Omada OC220 (MPN: OC220)
• Ethernet LAN speeds: 10/100/1000 Mbit/s
• Management capacity: up to 100 Omada access points, 10 Omada gateways, up to 20 Omada switches, up to 2 supported DeltaStream GPON OLTs*
• Interfaces: 2 × Gigabit Ethernet ports, 1 × USB 2.0 port
• Power: 802.3af PoE or Micro USB DC 5V (minimum 1A)
• Dimensions: 100 mm × 98 mm × 25 mm
• Compatibility: Windows and macOS (management via Omada app or Web UI)

How to use

Connect the OC220 to your network using one of its Gigabit Ethernet ports and power it via 802.3af PoE or the Micro USB port (DC 5V/Min 1A). Register and adopt Omada devices through the Omada Controller interface using the Web UI or the Omada mobile app, then configure SSIDs, firewall rules and device groups as required. Use the USB 2.0 port for local data backup if needed. For on-premises management, keep the device within your local network and access the controller via its local IP address.

Recommendations

For stable operation in business environments, place the OC220 in a ventilated area and use a reliable PoE injector or USB power supply that meets the specified DC 5V/1A minimum. Regularly back up controller settings via USB or the management interface and apply firmware updates through the Omada interface to maintain security and compatibility.
