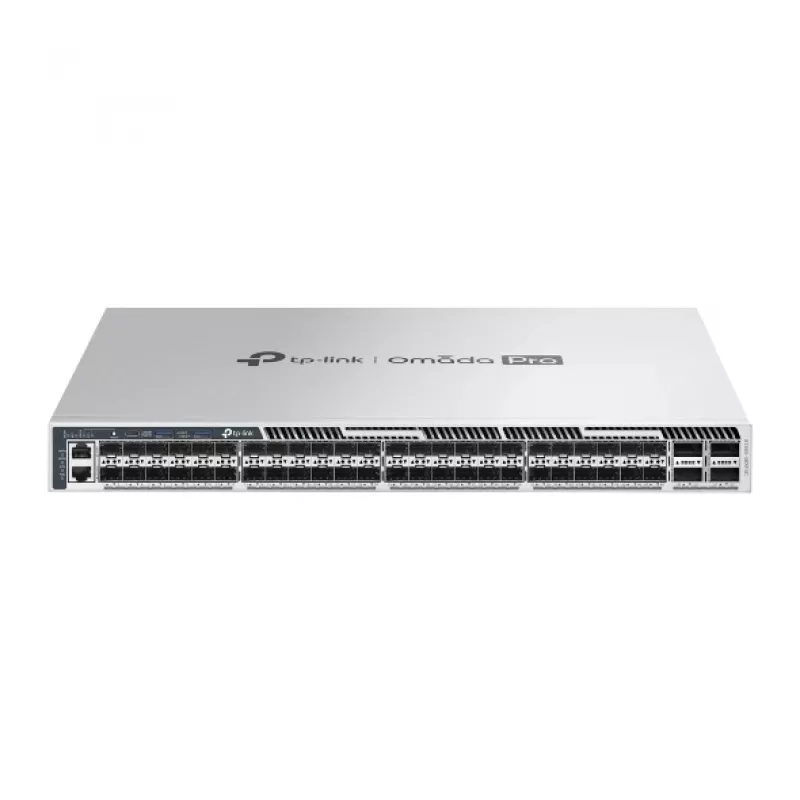

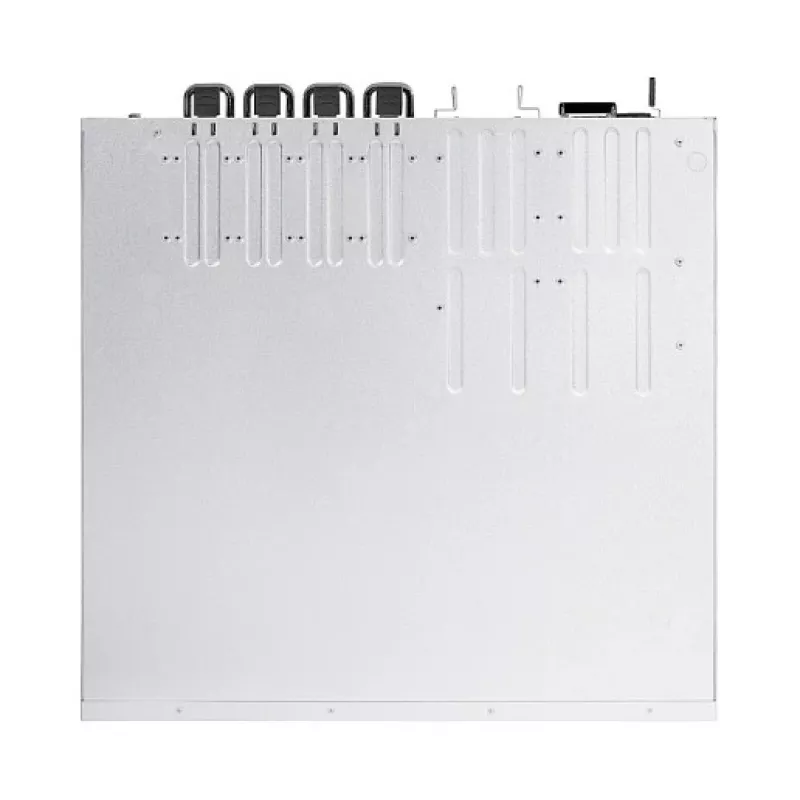

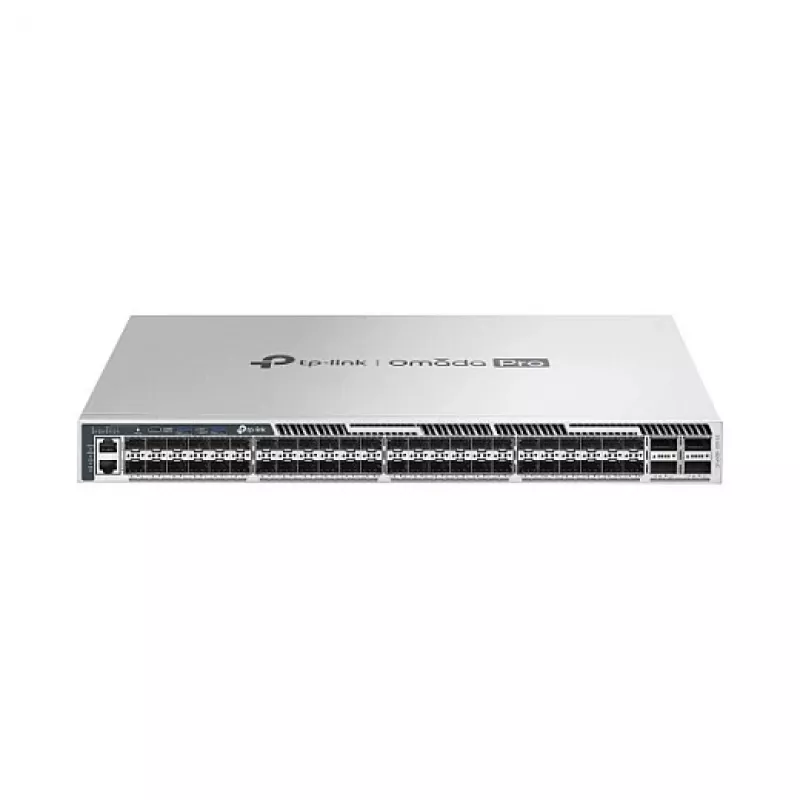

TP-Link Omada Pro S7500-48XF4C Managed L3+ Stackable switch - 48x 10G SFP+ & 4x 100G QSFP28

The TP-Link Omada Pro S7500-48XF4C is a high-performance managed L3+ aggregation switch designed for enterprise networks requiring high-density 10G and 100G connectivity. With 48 10G SFP+ ports and 4 100G QSFP28 uplink ports, it delivers a switching capacity of 1.76 Tbps and a forwarding rate of 1309.44 Mpps, ensuring seamless data flow for bandwidth-intensive applications. Part of the Omada SDN platform, it offers centralized cloud management and advanced Layer 3 routing protocols including OSPF, BGP, and VRRP.

Advantages

This switch provides exceptional scalability and reliability for growing businesses. Its hot-swappable redundant power supplies and fans minimize downtime, while the 1U rackmount design saves space. The Omada SDN integration simplifies network management, and the comprehensive security features protect against threats. With support for jumbo frames up to 9 KB and a large MAC address table, it is ideal for data centers, campuses, and enterprise networks.

Suitable for

• Enterprise aggregation and core networks
• Data centers requiring high-density 10G/100G connectivity
• Campus networks with centralized management needs
• Service providers deploying scalable L3+ infrastructure

Key specifications

• 48x 10G SFP+ ports, 4x 100G QSFP28 ports
• Switching capacity: 1.76 Tbps
• Forwarding rate: 1309.44 Mpps
• MAC address table: 128K entries
• Jumbo frame support: 9 KB
• Layer 3+ routing: OSPF, BGP, RIP, Static, VRRP
• Redundant hot-swappable power supplies (2) and fans (6)
• Omada SDN cloud management
• Security: ACL, 802.1X, IP-MAC-Port Binding, DoS Defend
• Management: RJ45/Micro-USB console, RJ45 management port
• Max power consumption: 260 W
• Rackmount 1U

Recommendations

For optimal performance, pair with TP-Link Omada Pro access points and controllers to create a fully managed, scalable network. Ensure proper ventilation and use compatible SFP+/QSFP28 modules. The switch supports both IPv4 and IPv6, making it future-proof for evolving network requirements.
