TP-LINK TX401 10GB PCI Express sieťová karta (RJ45, PCIe x4)

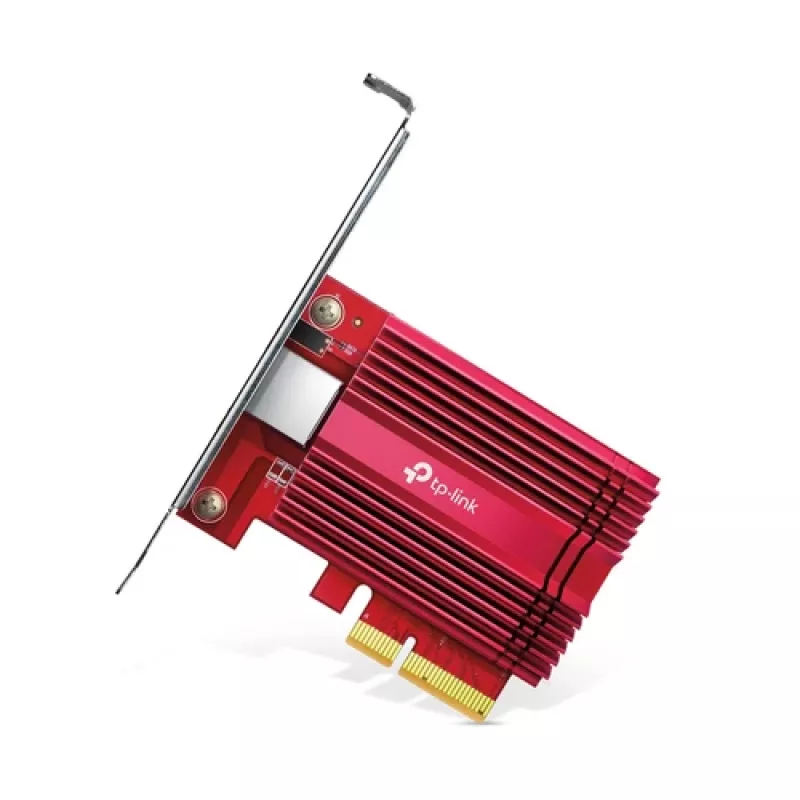

Video editors and IT professionals can now move massive files across the network at up to 10 Gbps with the TP-LINK TX401. This PCIe 3.0 x4 adapter adds a single RJ45 port that auto-negotiates between 10G, 5G, 2.5G, 1G, and 100 Mbps, making it ideal for high-performance workstations and small office servers. It fits in standard and low-profile cases with the included brackets and supports Windows, Linux, and Windows Server.

Key specifications

• Host interface: PCIe 3.0 x4 (compatible with x8 and x16 slots)
• Ethernet port: 1 × RJ45
• Data rates: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps (auto-negotiation)
• Chipset: Aquantia AQC107
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an
• Jumbo frame support: up to 16 KB
• Flow control: IEEE 802.3x
• Wake-on-LAN: Yes
• LED indicators: Link/Act (10G, 5G/2.5G/1G/100M)
• Brackets: full-height and low-profile included
• Operating system support: Windows 11/10/8.1/8/7, Windows Server, Linux
• Certifications: FCC, CE, RoHS

Why choose it

Break through Gigabit bottlenecks with true 10 Gbps throughput. The TX401 supports multi-gig 2.5G and 5G BASE-T standards, allowing you to use existing Cat5e or Cat6 cabling for those speeds and only Cat6a for full 10G. Advanced features such as QoS, VLAN tagging, and PXE boot give IT administrators the flexibility to optimize network traffic and deploy systems remotely.

Ideal use cases

• Direct 10G connection between a desktop and a NAS for fast backups and file transfers
• High-bandwidth video editing, 3D rendering, and scientific computing
• Upgrading a small office server to handle multiple concurrent users without lag
• Low-latency gaming and streaming setups

Good to know

The adapter operates in temperatures from 0°C to 40°C and 10% to 90% non-condensing humidity. It supports PXE boot for network-based OS deployment and includes a low-profile bracket for slim cases. The Aquantia AQC107 chipset is widely compatible with major operating systems and virtualization platforms.
