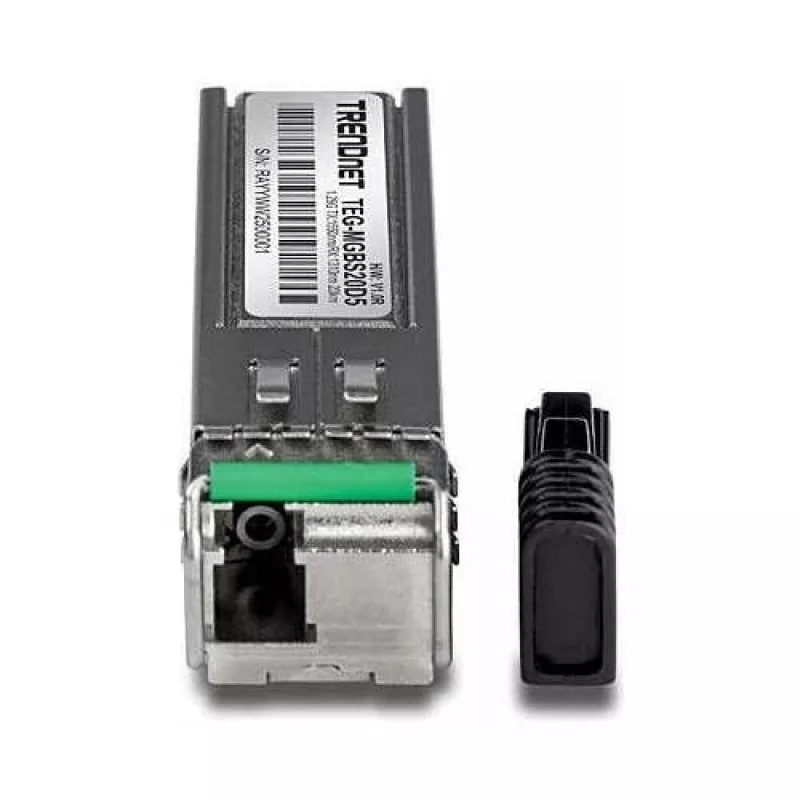

TRENDnet TEG-MGBS20D5 SFP transceiver modul - Gigabit Ethernet 1000Base-LX, LC Single-Mode, 1550nm TX/1310nm RX, až do 20km

Extending network reach beyond the limits of standard multimode fiber often requires costly infrastructure upgrades. The TRENDnet TEG-MGBS20D5 SFP transceiver module solves this by converting a standard SFP slot into a long-distance single-mode fiber interface, delivering Gigabit Ethernet connectivity up to 20 kilometers over a single LC connection. Ideal for campus networks, metropolitan area links, and enterprise backbones, this module eliminates the need for media converters or additional switches.

Who is it for

Network administrators and IT professionals managing large-scale or distributed networks will find this module essential. It is perfect for connecting buildings across a campus, linking remote switches in a fiber ring, or extending data center interconnects. Any environment where copper or multimode fiber falls short on distance will benefit from this reliable, hot-swappable SFP.

Main features

• 1000Base-LX Gigabit Ethernet over single-mode fiber
• LC duplex connector for standard fiber patch cables
• Transmit wavelength 1550 nm, receive wavelength 1310 nm (BiDi over single strand)
• Maximum transfer distance of 20 km (12.4 miles)
• Hot-swappable SFP form factor for easy installation and replacement
• Digital Diagnostics Monitoring (DDM) for real-time status monitoring
• Compliant with IEEE 802.3z and Fibre Channel standards
• Low power consumption (<1W) and wide operating temperature range

Specifications

• Module type: SFP (Mini-GBIC)
• Data rate: 1.25 Gbps (Gigabit Ethernet)
• Interface: 1000Base-LX
• Connector: LC
• Fiber type: Single-mode (SMF)
• Wavelength (TX/RX): 1550 nm / 1310 nm
• Max distance: 20 km
• Duplex: Full-duplex
• Hot-swap: Yes
• DDM: Yes
• Power supply: 3.3V
• Power consumption: <1W
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Humidity: 5% to 95% non-condensing
• Compliance: MSA, IEEE 802.3z, Fibre Channel

Tips

Ensure your switch or router supports SFP transceivers and is configured for 1000Base-LX. Use single-mode fiber patch cables with LC connectors for optimal performance. The DDM feature allows you to monitor optical output, temperature, and other parameters via the host device's management interface, aiding in proactive maintenance.
