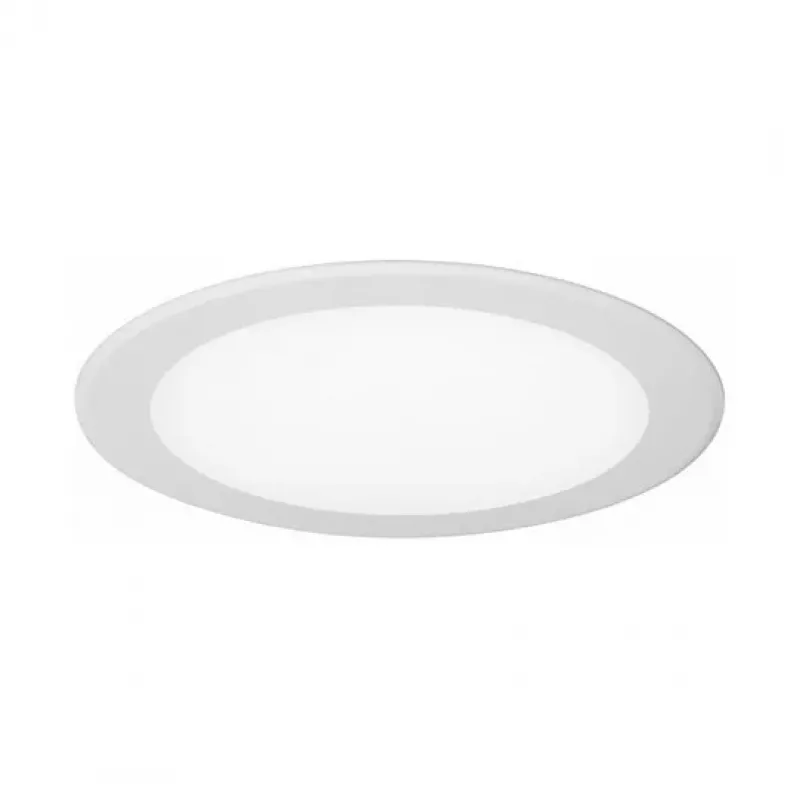

TRILUX LEUCHTEN Trilux 2325 G3 C05 OA LED 20/14/08/ML-8MC ET LED zapustené downlight Ø 140 mm

The TRILUX LEUCHTEN Trilux 2325 G3 C05 OA LED 20/14/08/ML-8MC ET is a high-quality LED recessed downlight designed for professional indoor lighting applications. With a compact diameter of 140 mm and a cutout of 125 mm, it delivers selectable luminous flux (2000/1400/800 lm) and a cool white colour temperature of 5000 K, making it ideal for offices, corridors, and commercial spaces. The die-cast aluminium housing in white (RAL 9016) ensures durability and a clean aesthetic.

Advantages

Energy-efficient LED technology with up to 111 lm/W efficacy; multi-lumen selectable via switch for flexibility; long lifetime of 50,000 hours (L80/B10); easy recessed installation with external driver.

Suitable for

• Office lighting
• Corridors and hallways
• Retail and commercial spaces
• Recessed ceiling applications

Key specifications

• Light source: LED (integrated)
• Installation: Recessed
• Outer diameter: 140 mm
• Cutout diameter: 125 mm
• Installation depth: 65 mm
• Luminous flux: 2000/1400/800 lm (selectable)
• Colour temperature: 5000 K (cool white)
• CRI: >80
• Rated power: 18 W (max)
• Beam angle: Wide (approx. 90°)
• Dimmable: No (multi-lumen selectable)
• Driver: External, multi-lumen (ML-8MC ET)
• IP rating: IP20
• IK rating: IK02
• Lifetime: 50,000 h (L80/B10)
• Housing material: Die-cast aluminium
• Housing colour: White (RAL 9016)
• Diffuser: Opal
• Operating voltage: 220-240 V AC, 50/60 Hz

Recommendations

For optimal performance, ensure proper recessed installation with adequate ventilation. The external driver must be accessible for maintenance. Suitable for indoor use only.
