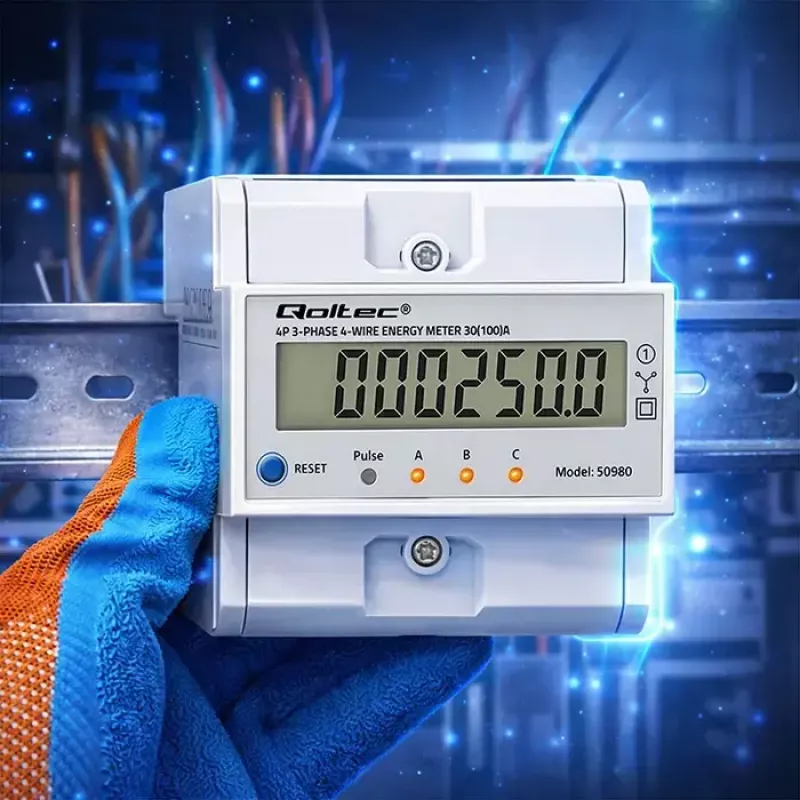

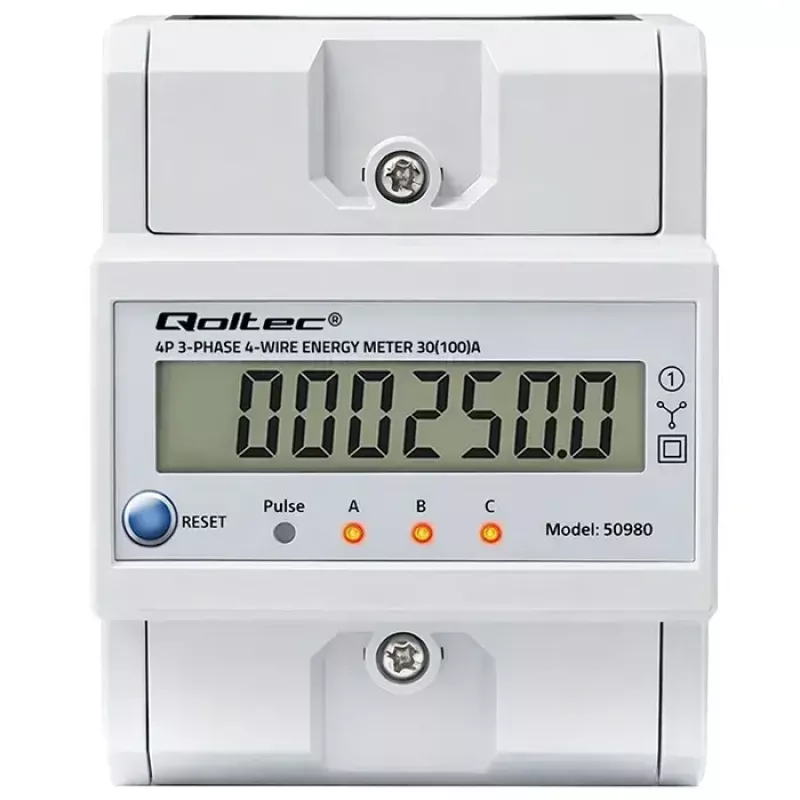

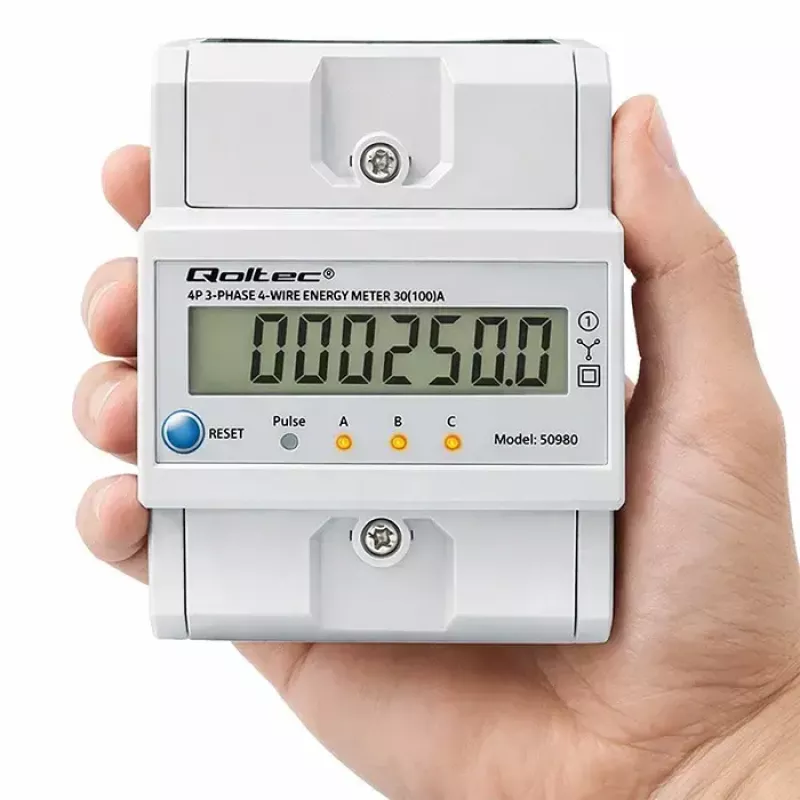

Trojfázový merač QOLTEC 50980 — 400 V, 100 A s resetom

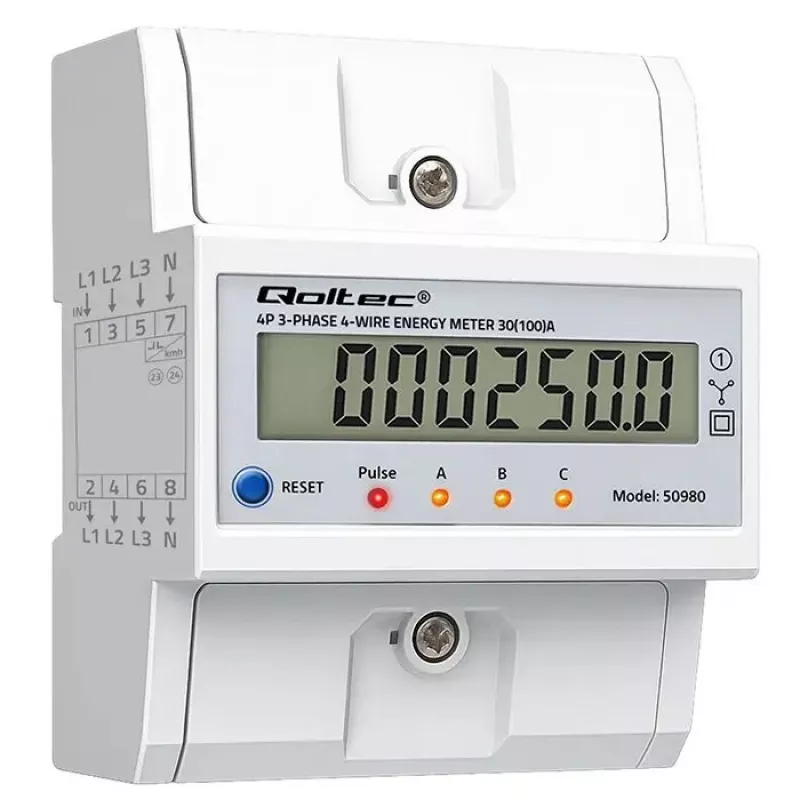

The QOLTEC three-phase energy meter 50980 measures active electrical energy in three-phase installations with a rated voltage up to 400 V and a rated current up to 100 A. Designed for panel mounting and integration into distribution boards, the meter records kWh values and includes a reset function that allows clearing cumulative energy data when required for periodic monitoring or temporary measurements. The device is intended for monitoring consumption in residential, commercial and light industrial environments where accurate active energy measurement and compact DIN-rail compatible mounting are needed.

Advantages

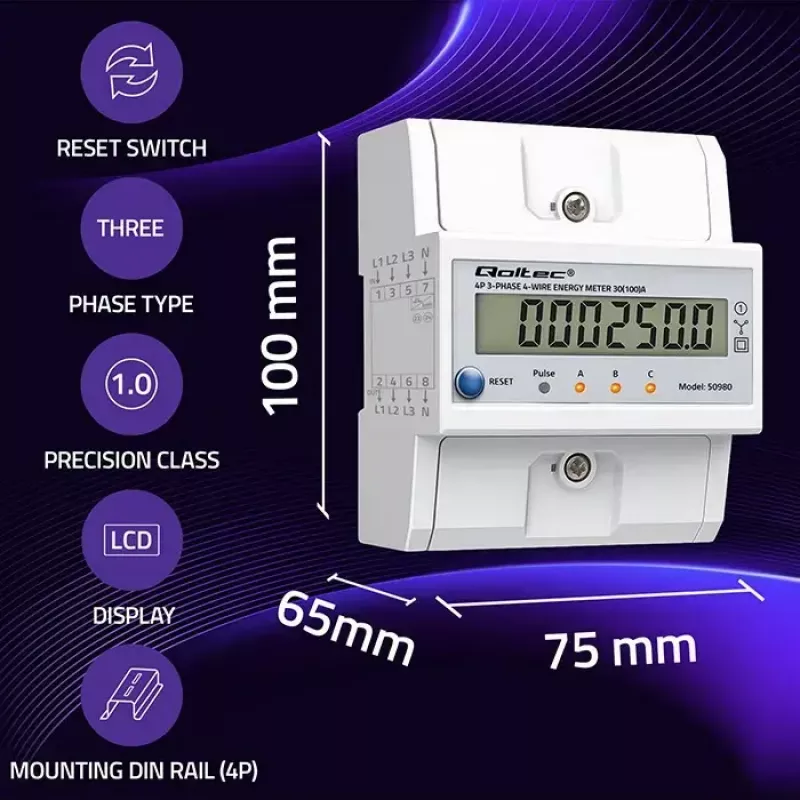

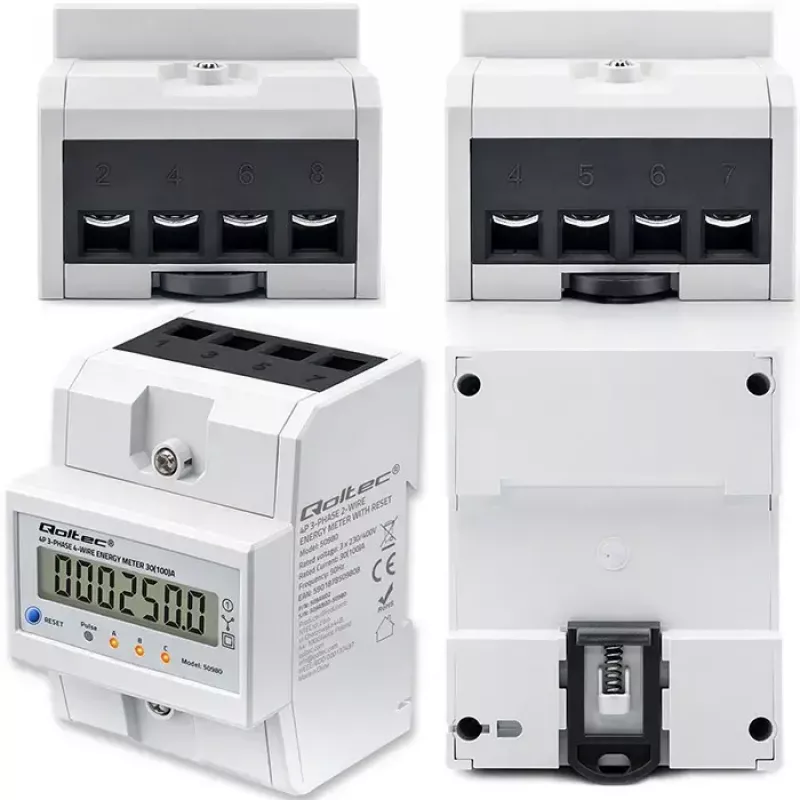

The meter provides precise kWh measurement for three-phase systems and supports direct connection up to 100 A without additional transformers in many typical installations. Its reset function enables simple clearing of accumulated energy values for temporary tests or interval-based readings. Compact housing and DIN-rail compatibility facilitate installation into distribution boards, while a clear display ensures easy reading of energy values and reset status.

Suitable for

Key specifications

How to use

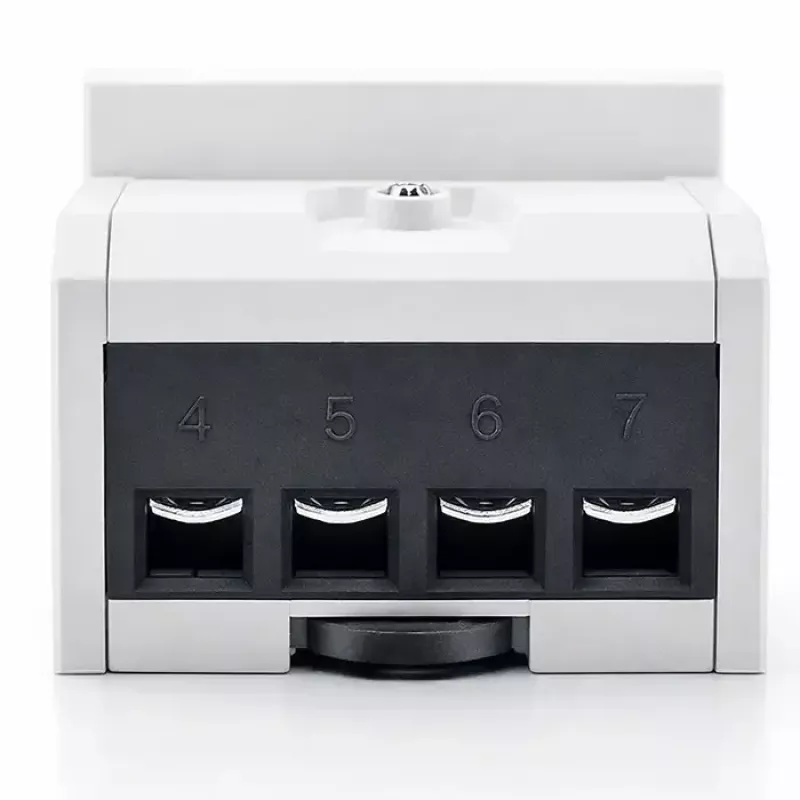

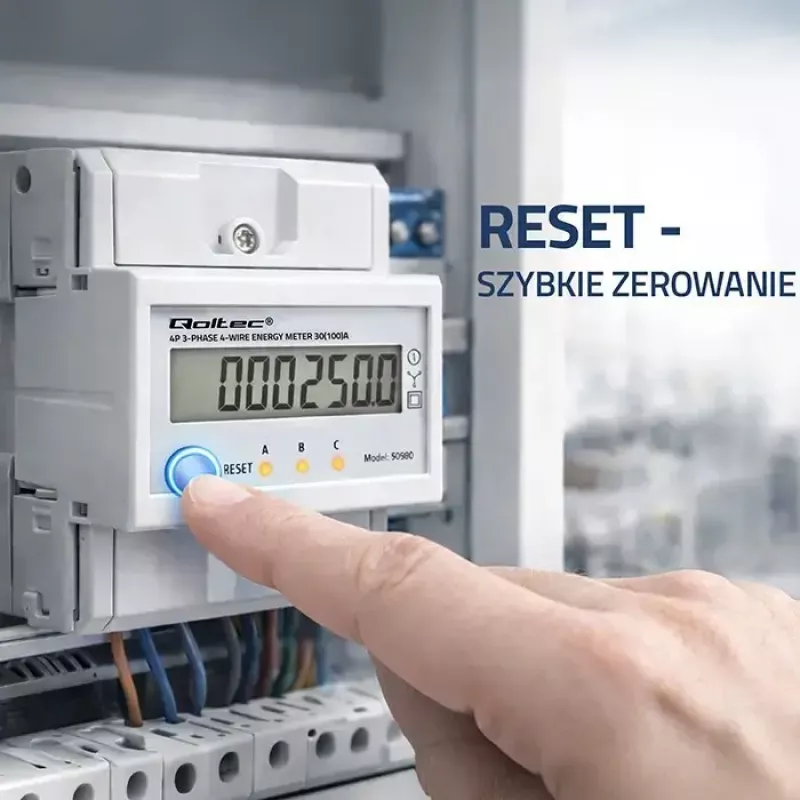

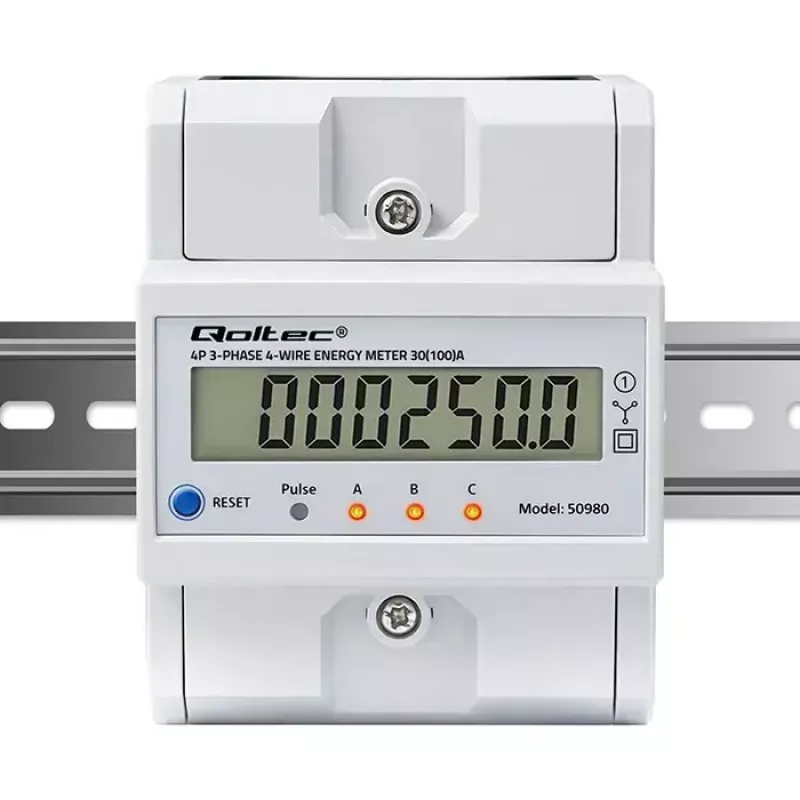

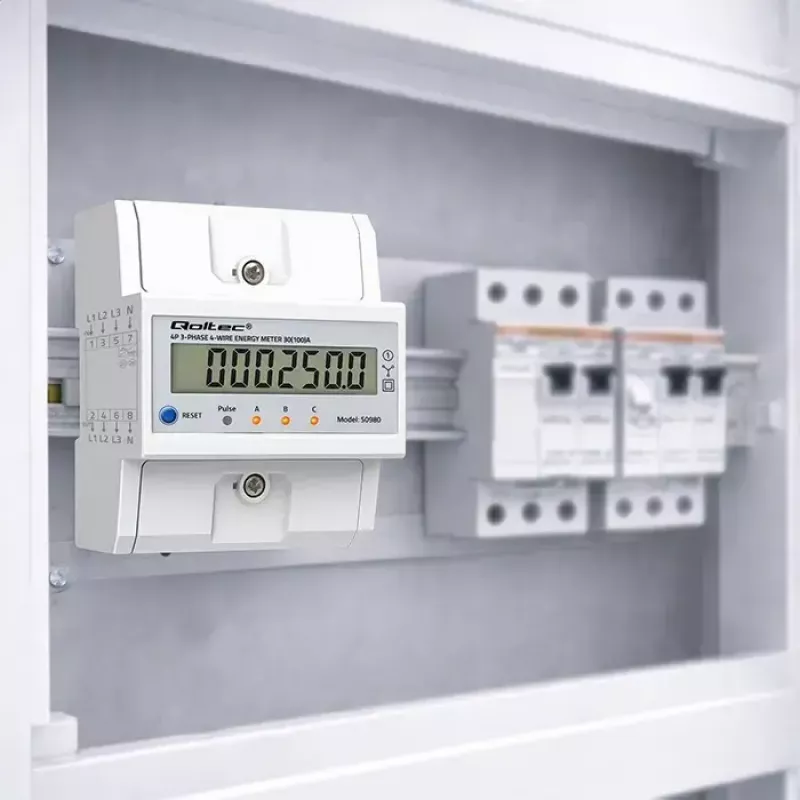

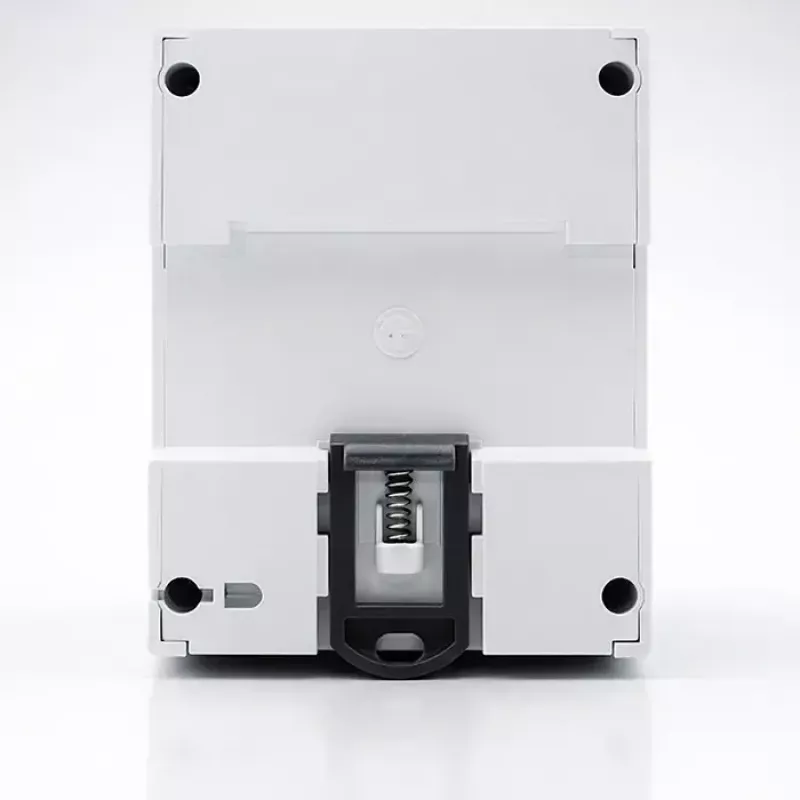

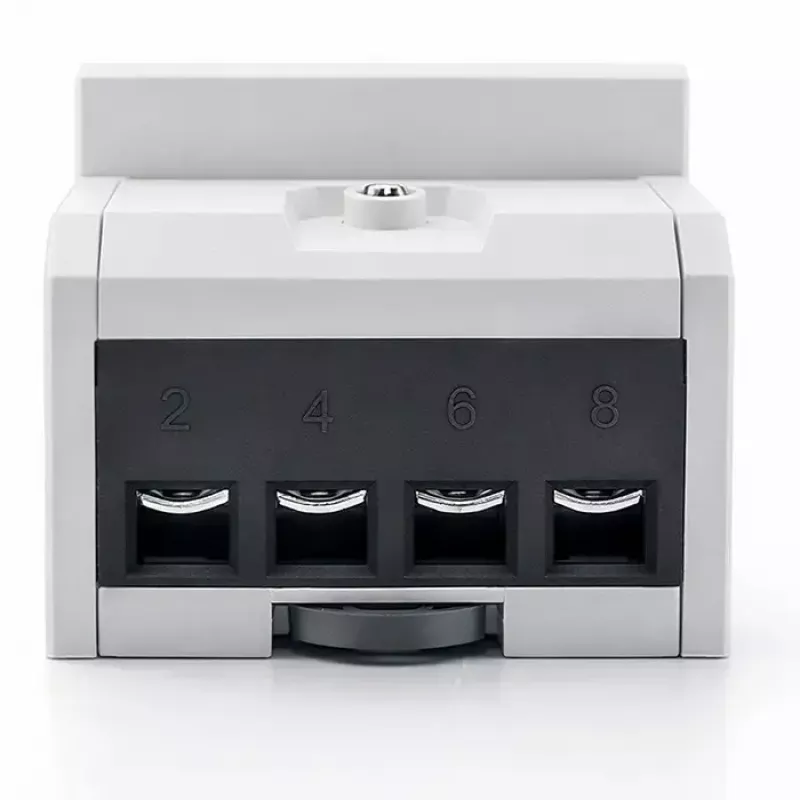

Mount the energy meter on a compatible DIN rail inside the distribution board and connect the three-phase supply conductors according to the installation diagram provided by QOLTEC or a qualified electrician. Verify correct phase sequence and secure connections for currents up to 100 A as applicable. After power-up the display shows cumulative active energy; use the reset control to clear the accumulated value when performing temporary measurements or interval readings. Regularly check terminal tightness and the display to ensure ongoing measurement reliability.

Recommendations

Installation and wiring should be carried out by a qualified electrician in accordance with local electrical codes. For installations approaching the nominal current limit, confirm conductor sizing and connection method to avoid overheating. Use the reset function only when appropriate for measurement procedures and record readings before clearing where permanent billing data are required.
