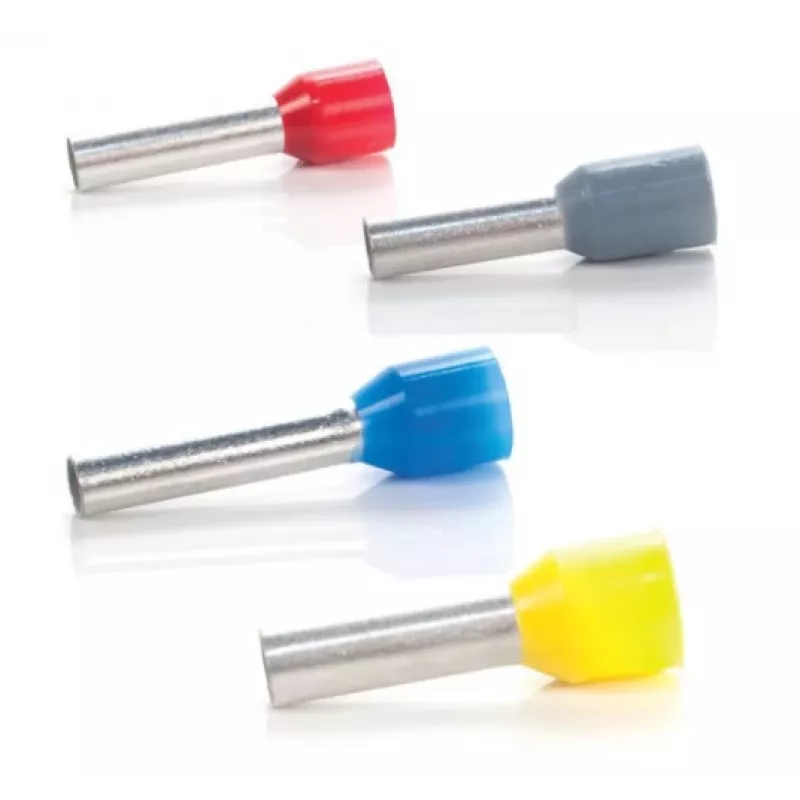

TRYTYT izolovaná káblová koncovka 16mm² DUI-16,0-12NB modrá (100 kusov)

The TRYTYT DUI-16,0-12NB insulated wire ferrule is a high-quality connector designed for terminating stranded copper conductors. With a cross-sectional area of 16 mm², this blue ferrule ensures reliable and secure connections in electrical installations. Made from tin-plated electrolytic copper with a polypropylene insulation, it offers excellent conductivity and durability. The flared insulation design facilitates easy insertion of wires, while the 12 mm metal tube length provides ample crimping surface. Rated for 600 V and a wide temperature range of -40°C to +105°C, this ferrule is suitable for various industrial and commercial applications. Packaged in a convenient box of 100 pieces, it complies with RoHS and CE standards and has a UL94 V-2 flammability rating.

Advantages

High-quality tin-plated copper ensures excellent electrical conductivity and corrosion resistance. The polypropylene insulation provides good mechanical strength and thermal stability. Flared insulation allows for easy wire insertion, reducing installation time. Compatible with square or hexagonal crimping tools for versatile use. RoHS and CE compliant, ensuring environmental and safety standards.

Suitable for

• Termination of stranded copper conductors in control panels, junction boxes, and electrical cabinets
• Industrial automation and machinery wiring
• Building and construction electrical installations
• Automotive and marine electrical systems

Key specifications

• Wire cross-section: 16 mm²
• Insulation color: Blue
• Metal tube length (L1): 12 mm
• Overall length (L2): 19 mm
• Inner diameter (metal tube): 5.7 mm
• Outer diameter (metal tube): 6.5 mm
• Insulation diameter: 7.8 mm
• Rated voltage: 600 V
• Temperature range: -40°C to +105°C
• Flammability rating: UL94 V-2
• Packaging: 100 pieces per box

Recommendations

For best results, use a quality crimping tool designed for insulated ferrules. Ensure the wire is stripped to the correct length (approx. 12 mm) before insertion. Always follow local electrical codes and regulations.
