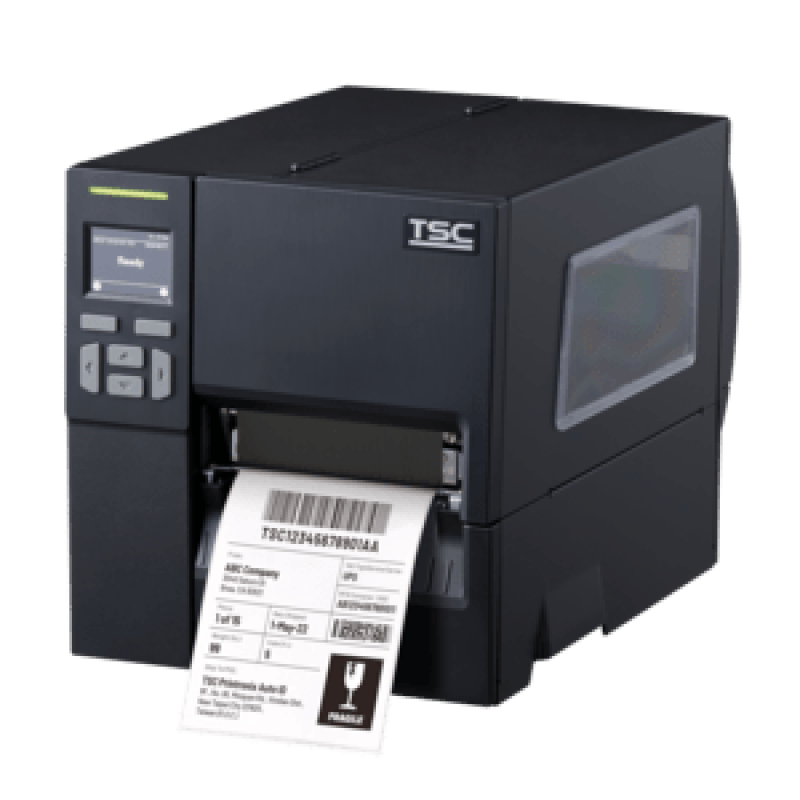

TSC MB241 203dpi 2,3-palcový LCD DRAM 256MB/FLASH 256MB USB+RS-232+ETHERNET+USB - tlačiareň etikiet - 203 dpi

High-volume labeling often bogs down with slow print speeds, limited connectivity, and flimsy construction. The TSC MB241 industrial label printer eliminates those bottlenecks with a rugged die-cast aluminum frame, a fast 254 mm/s print engine, and triple interface options to fit seamlessly into any workflow.

Who is it for

Warehouse managers, logistics coordinators, and manufacturing supervisors who need reliable, high-resolution label output for shipping, inventory, and compliance. It suits operations that demand durable hardware and flexible integration without constant maintenance.

Main features

• 203 dpi resolution for crisp text, barcodes, and graphics on labels up to 108 mm wide.
• Rapid 254 mm/s print speed to keep pace with busy packing lines.
• 2.3-inch LCD control panel for easy setup and status monitoring.
• 256 MB DRAM and 256 MB Flash memory for storing large label formats and fonts.
• Triple connectivity: USB, RS-232 serial, and Ethernet for flexible deployment.
• Thermal transfer and direct thermal printing support for versatile media options.
• Die-cast aluminum base and frame with metal cover for industrial durability.
• Supports 1D and 2D barcodes, including QR codes, for modern tracking needs.

Specifications

• Print resolution: 203 dpi
• Maximum print speed: 254 mm/s (10 ips)
• Maximum print width: 108 mm (4.25 inches)
• Maximum print length: 25,400 mm (1000 inches)
• Display: 2.3-inch LCD
• Memory: 256 MB DRAM, 256 MB Flash
• Interfaces: USB, RS-232, Ethernet
• Print technology: Thermal Transfer / Direct Thermal
• Printer language: TSPL-EZD
• Media types: Labels, tags, continuous, die-cut, black mark, fan-fold
• Power supply: AC 100-240V, 50/60Hz
• Housing: Die-cast aluminum base and frame with metal cover

Tips

Pair with high-quality thermal transfer ribbons for long-lasting labels in harsh environments. Use the Ethernet port to share the printer across multiple workstations, reducing queue delays. Regularly clean the printhead and platen roller to maintain consistent print quality.
