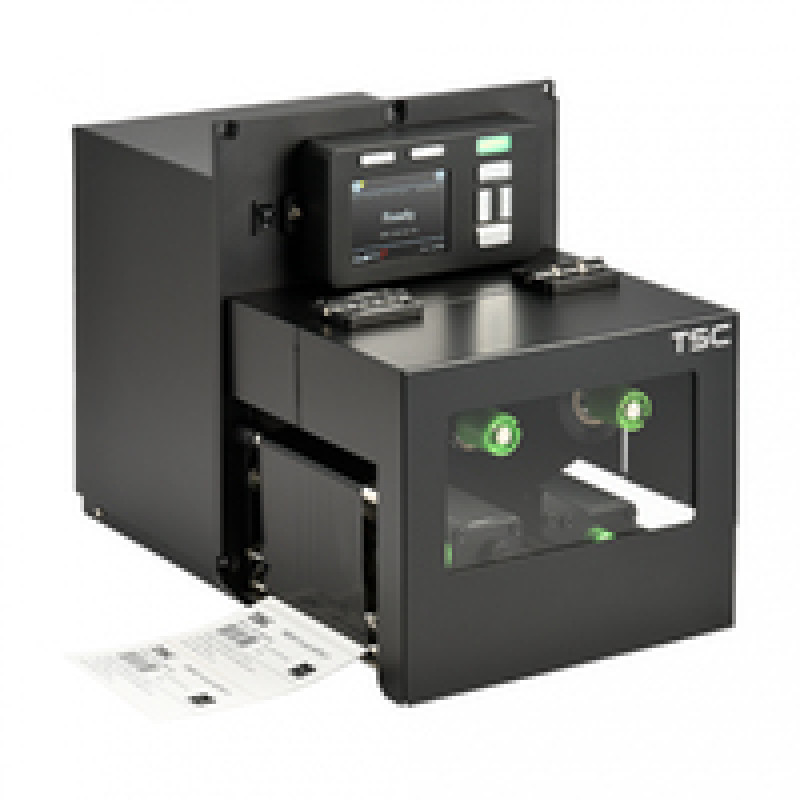

TSC PEX-1121 ľavá verzia 203 dpi 18 ips - tlačiareň etikiet - tlačiareň etikiet

Automated labeling systems often struggle with integration, speed, and reliability, causing production bottlenecks. The TSC PEX-1121 Left Hand solves these challenges as a robust industrial print engine designed for seamless incorporation into automated machinery. Its left-hand orientation and die-cast aluminum housing ensure durability and precise media handling in demanding environments.

Who is it for

This print engine is ideal for system integrators, manufacturers, and logistics providers who need a high-speed, dependable printing solution for automated labeling, packaging, and identification applications. It suits industries such as electronics, pharmaceuticals, food and beverage, and warehousing where continuous operation and minimal downtime are critical.

Main features

• High-speed printing up to 18 ips (457 mm/s) at 203 dpi resolution for crisp labels.
• Left-hand design for flexible integration into automated production lines.
• Supports both thermal transfer and direct thermal printing, accommodating a wide range of media.
• Robust connectivity: USB 2.0 (host and device), RS-232, and Ethernet 10/100 Mbps.
• Large media capacity: 8-inch roll diameter, 600-meter ribbon length, and 4.1-inch print width.
• Advanced memory: 128 MB SDRAM and 128 MB Flash for fast processing and storage of complex label formats.
• Emulates TSPL, ZPL, and EPL, ensuring compatibility with existing software.
• Durable die-cast aluminum base and frame for long-term reliability.

Specifications

• Print technology: Thermal Transfer / Direct Thermal
• Maximum resolution: 203 x 203 DPI
• Maximum print speed: 18 ips (457 mm/s)
• Maximum print width: 4.1 inches (104 mm)
• Maximum print length: 150 inches (3810 mm)
• Interfaces: USB 2.0, RS-232, Ethernet 10/100 Mbps
• Memory: 128 MB SDRAM, 128 MB Flash
• Media types: Continuous, die-cut, black mark, fan-fold, notched
• Media roll diameter: 8 inches (203.2 mm), core: 3 inches (76.2 mm)
• Ribbon length: 600 meters, width: 40 mm - 110 mm
• Sensors: Gap, black mark, ribbon end, head open
• Power: Internal universal switching power supply (AC 100-240V, 50-60Hz)
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• User interface: LED indicators
• Housing: Die-cast aluminum base and frame

Tips

To maximize performance, use high-quality thermal transfer ribbons and media compatible with the PEX-1121's specifications. Regular cleaning of the printhead and platen roller will extend the life of the engine. For integration, leverage the Ethernet interface for centralized monitoring and control in networked environments.
