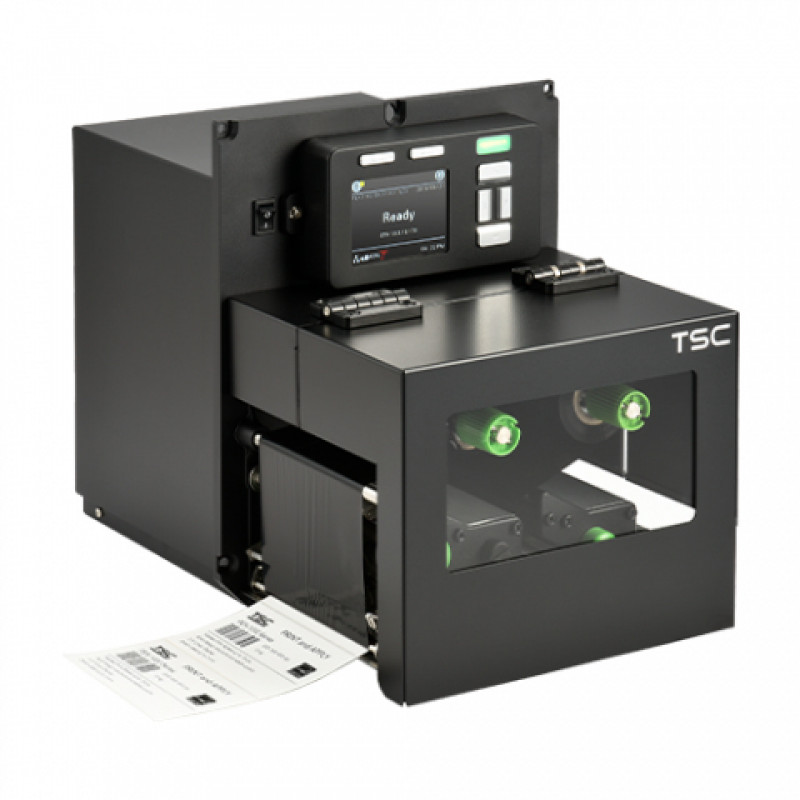

TSC PEX-1221 8 bodov/mm 203dpi Disp. RTC USB USB-Host RS232 LPT - tlačiareň - tlačiareň etikiet

High-volume labeling environments demand a printer that keeps pace without compromising print quality or uptime. The TSC PEX-1221 industrial barcode printer delivers exactly that, combining rugged construction with fast 14 ips output and a comprehensive feature set for demanding logistics, manufacturing, and retail applications.

Who is it for

Built for warehouse managers, production supervisors, and IT administrators who need reliable, high-speed label printing for shipping labels, product identification, and compliance labeling. Its industrial design and flexible connectivity make it ideal for integration into existing workflows.

Main features

• High-speed printing up to 14 inches per second (356 mm/s) for maximum throughput.
• 203 dpi resolution (8 dots/mm) ensures crisp, scannable barcodes and text.
• Supports both thermal transfer and direct thermal printing for versatile media options.
• Large 128 MB Flash and 128 MB SDRAM memory for storing fonts, graphics, and label formats.
• Intuitive LCD graphic display with real-time clock for easy status monitoring and time-stamped labels.
• Comprehensive connectivity: USB 2.0, USB Host, RS-232 serial, parallel (LPT), and optional Ethernet.
• Accommodates media rolls up to 8 inches outer diameter and 600-meter ribbon for less frequent changes.
• Robust metal construction for reliable performance in industrial environments.

Specifications

• Print technology: Thermal Transfer / Direct Thermal
• Maximum print width: 4.17 inches (106 mm)
• Maximum print length: 1000 inches (25400 mm)
• Media types: Continuous, die-cut, black mark, fan-fold, notched labels
• Sensors: Gap, black mark, notch, continuous
• Barcode support: 1D and 2D barcodes
• Power supply: Internal universal switching power supply (AC 100-240V)
• Ribbon core diameter: 1 inch (25.4 mm)
• Programming language: TSPL-EZD

Tips

Pair the PEX-1221 with high-quality thermal transfer ribbons and labels to achieve optimal print durability. Use the USB Host port to connect a keyboard or scanner for standalone operation without a PC. Regularly clean the printhead and platen roller to maintain print quality and extend component life.
