TSC tlačová hlava 8 bodov/mm 203dpi - tlačiareň etikiet

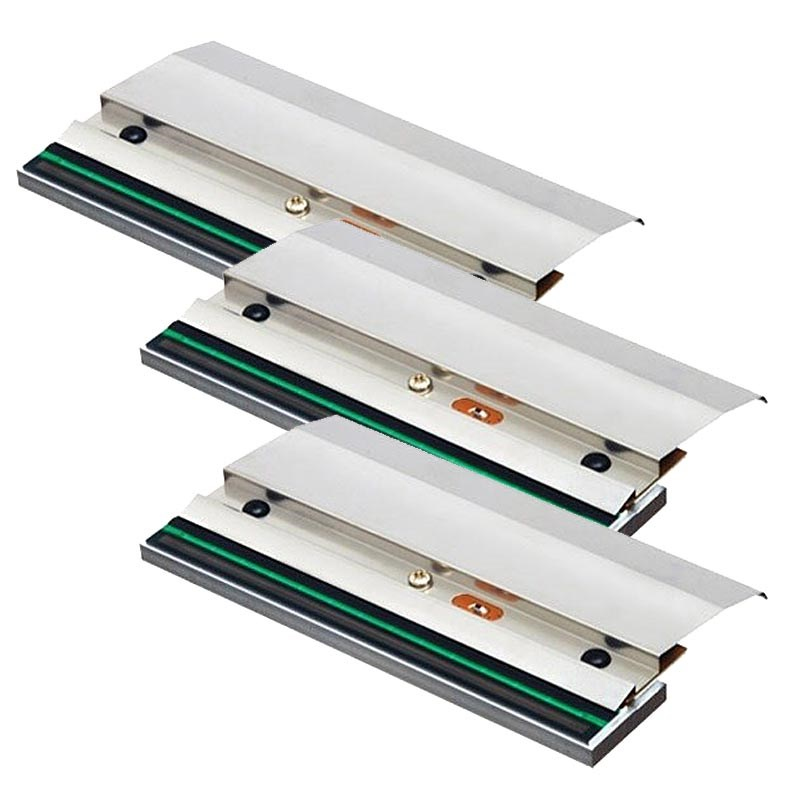

Faded, streaky, or incomplete barcode labels can halt warehouse operations, disrupt shipping, and create costly errors. The TSC 98-0390005-10LF thermal printhead restores crisp, high-contrast printing to your TSC label printer, ensuring every scan is reliable and every label is legible.

Who is it for

This replacement printhead is essential for businesses that depend on TSC 203 dpi label printers for barcode, shipping, and product identification. It suits logistics centres, retail back offices, manufacturing lines, and healthcare facilities where print quality directly impacts efficiency and compliance.

Main features

• 203 dpi resolution with 8 dots/mm for sharp text and barcodes
• Direct thermal and thermal transfer compatibility for versatile media use
• 104 mm print width covers standard 4-inch labels
• Durable ceramic substrate with abrasion-resistant coating
• Long lifespan: up to 50 km of printing or 100 million dots
• Easy installation with flexible printed circuit (FPC) connector

Specifications

• Print technology: Direct thermal / thermal transfer
• Resolution: 203 dpi (8 dots/mm)
• Max print width: 104 mm (4.09 inches)
• Number of dots: 832
• Printhead type: Thin-film thermal
• Operating temperature: 5°C to 40°C
• Storage temperature: -20°C to 60°C
• Operating humidity: 20% to 85% RH (non-condensing)
• Heating element material: Silicon
• Protective layer: Abrasion-resistant coating

Tips

To maximise printhead life, clean it regularly with isopropyl alcohol and a lint-free swab. Always use high-quality, compatible label stock and ribbons. Avoid touching the heating elements with bare hands; oils from skin can cause premature failure. If print quality degrades, check platen roller condition and media path alignment before replacing the printhead.
