Turbosound TS-10W300/8A 10 palcový 300W basový reproduktor 8 Ohm

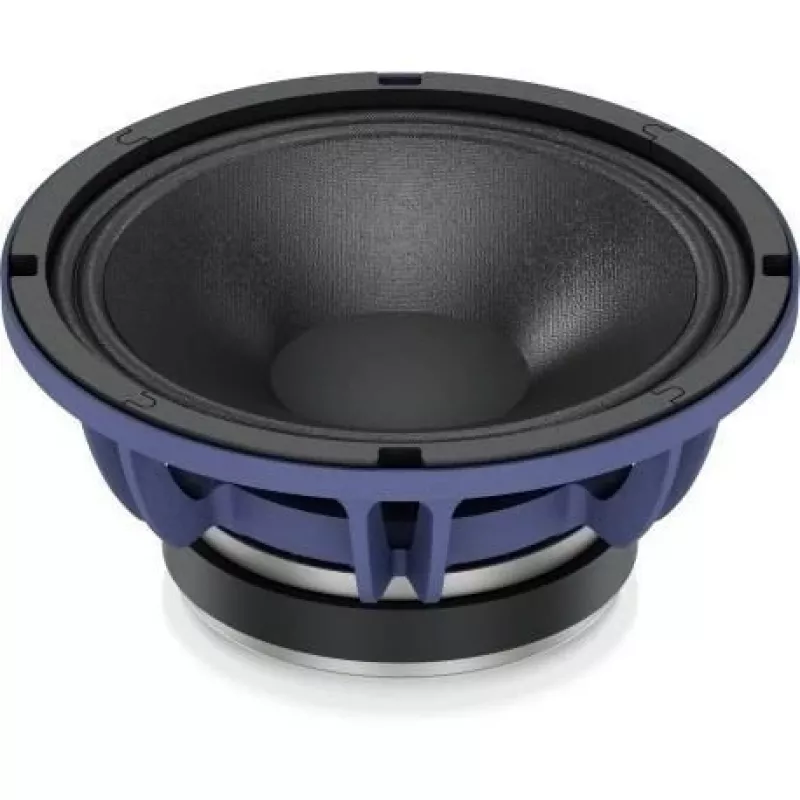

The Turbosound TS-10W300/8A is a high-performance 10-inch low-frequency driver designed for professional audio applications. With a robust 300W RMS power handling and 8-ohm impedance, this woofer delivers deep, punchy bass with excellent clarity. Ideal for replacement or custom speaker builds, it features a treated paper cone, cloth surround, and ferrite magnet for reliable performance.

Advantages

High power handling of 300W RMS (1200W peak) ensures headroom for demanding audio. The 2.5-inch voice coil and 5.5mm linear excursion provide low distortion and high output. Ferrite magnet and pressed steel basket offer durability and efficient heat dissipation.

Suitable for

• Professional PA systems
• Stage monitors
• Subwoofer enclosures
• Custom speaker cabinets

Key specifications

• Driver Type: Low-Frequency Driver (Woofer)
• Speaker Size: 10 inches (254 mm)
• Power Handling (RMS): 300 W
• Power Handling (Peak): 1200 W
• Nominal Impedance: 8 Ohms
• Frequency Response: 50 Hz - 3 kHz
• Sensitivity (1W/1m): 96 dB SPL
• Voice Coil Diameter: 2.5 inches (63.5 mm)
• Magnet Material: Ferrite
• Basket Material: Pressed Steel
• Cone Material: Treated Paper
• Surround Material: Cloth
• Resonant Frequency (Fs): 50 Hz
• Equivalent Air Volume (Vas): 35 Liters
• Total Q Factor (Qts): 0.45
• Linear Excursion (Xmax): 5.5 mm
• Overall Diameter: 260 mm
• Mounting Cutout Diameter: 230 mm
• Mounting Depth: 110 mm

Recommendations

For optimal performance, use in a properly designed enclosure matching the driver's parameters. Ensure adequate power from an amplifier rated for 8-ohm loads.
