U-profil pre LED pás EUROLITE 51210970, 20 mm, čierna, 2 m

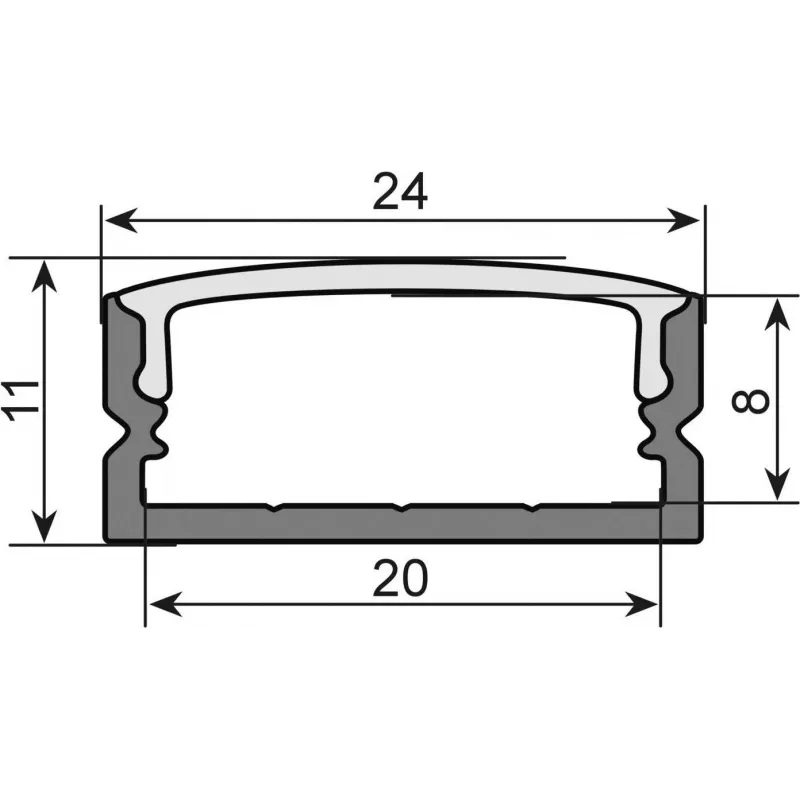

Aluminium U-profile EUROLITE 51210970 is designed to house 20 mm wide LED strips and provide a neat, durable mounting solution. The profile is finished in black and supplied in a 2 m length. It protects the LED strip from dust and mechanical contact, offers a clean installation edge and contributes to heat dissipation from the LED substrate, helping to prolong the lifetime of the lighting. The slim U-shape integrates into furniture, cabinets, coves and architectural details where linear accent lighting is required.

Advantages

The extruded aluminium construction ensures mechanical protection and improved thermal management for 20 mm LED strips while keeping the installation discreet thanks to the black finish. Supplied in a continuous 2 m length, the profile simplifies alignment and reduces the need for joints. Its U-shaped channel secures the LED strip without complex mounting hardware and provides a consistent visible edge for recessed or surface-mounted applications.

Suitable for

Key specifications

How to use

Measure and cut the aluminium profile to the required length using a fine-toothed saw suitable for metal. Prepare the installation surface ensuring it is clean and level. Insert the 20 mm LED strip into the U-channel and press it firmly so the adhesive backing contacts the profile base; use additional mounting clips or silicone if the strip adhesive is insufficient. Connect the strip electrically according to the strip manufacturer’s instructions, then mount the profile onto the surface or into a recessed groove using screws or mounting brackets appropriate for the substrate. Ensure wiring is routed safely and allow space for any connectors.

Recommendations

For best thermal performance, ensure good contact between the LED strip and the aluminium base. Use diffusers or covers if glare reduction or softer light distribution is desired. Avoid mounting in locations with persistent moisture unless additional sealing is applied; secure cable entry points and use suitable silicone or gaskets where necessary.
