Ubiquiti UACC-OM-QSFP28-PSM4 sieťový transceiver modul optické vlákno 100000 Mbit/s QSFP28

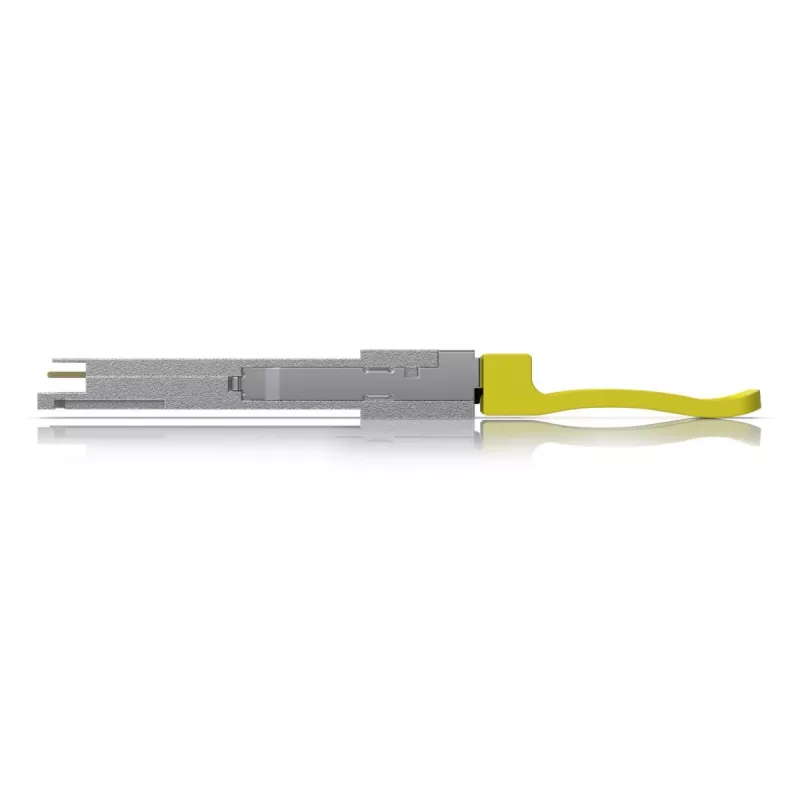

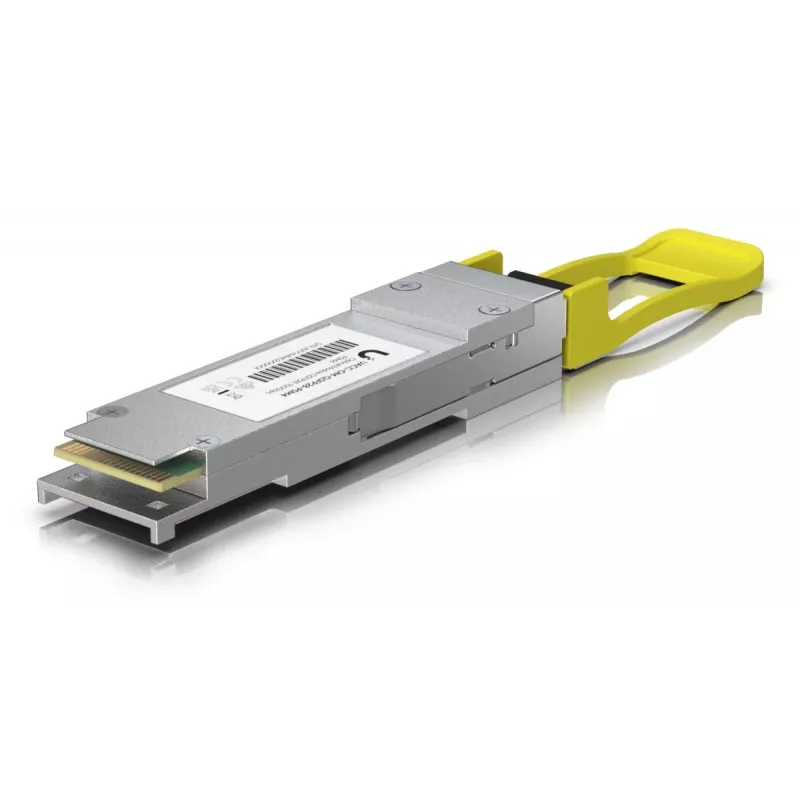

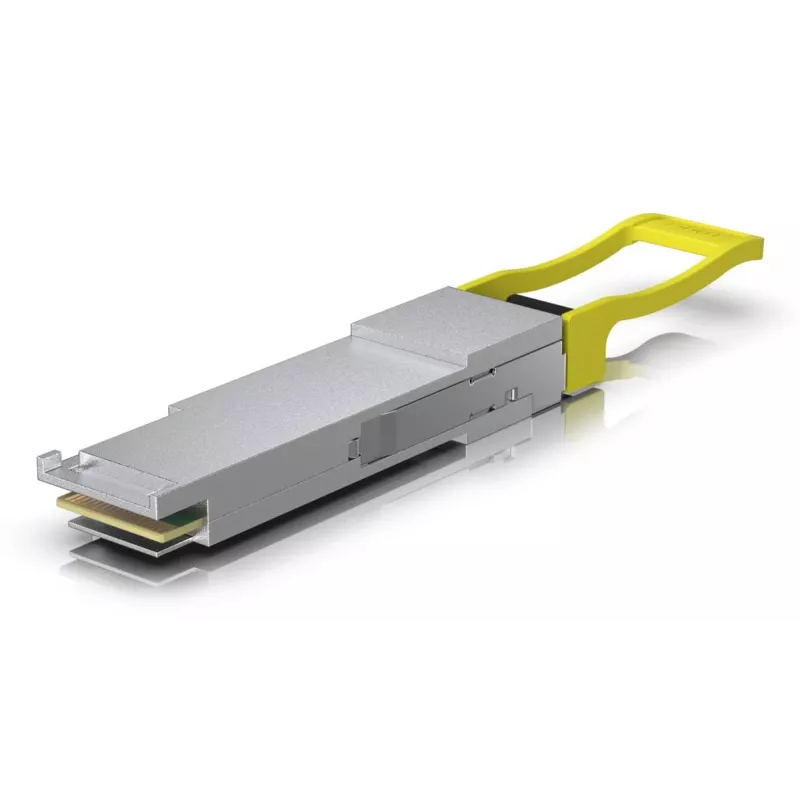

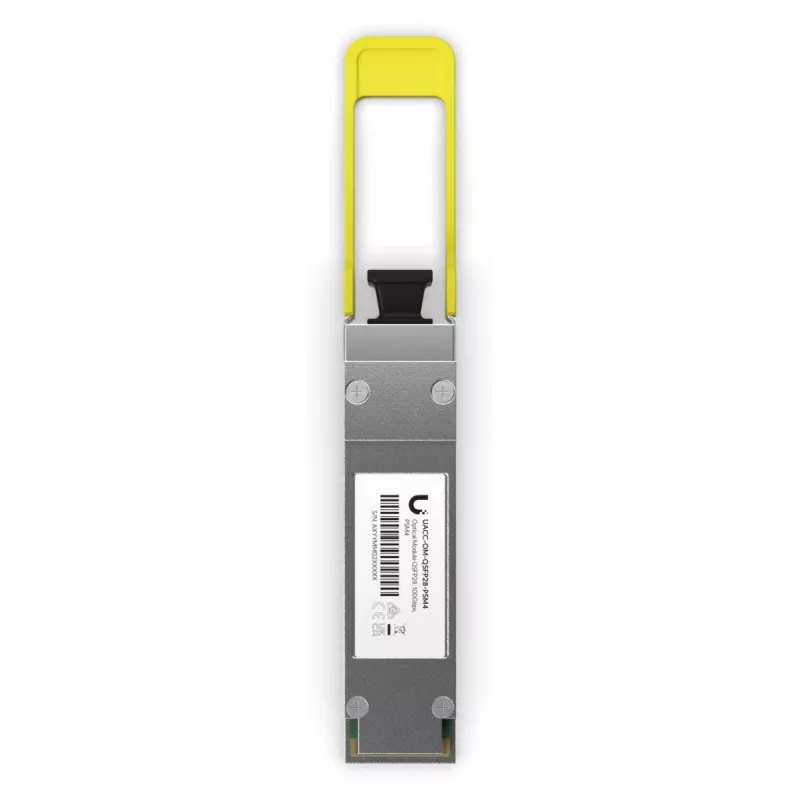

The Ubiquiti UACC-OM-QSFP28-PSM4 is a QSFP28 fiber optic transceiver module that provides 100G connectivity over single-mode fiber up to 2 km. It uses an MPO-12 APC connector and is designed for use in high-density networking equipment where a QSFP28 interface is required.

Advantages

This transceiver supports 100000 Mbit/s data rates over single-mode fiber and is compatible with QSFP28 ports, enabling high-speed links for data centers and enterprise networks. The MPO-12 APC connector ensures low-reflection optical performance, and the compact QSFP28 form factor allows for high port density in switch and router chassis.

Suitable for

• Data center uplinks and inter-rack connections
• Enterprise backbone links
• High-density switches and routers with QSFP28 ports

Key specifications

• Interface type: QSFP28 / QSFP+
• Maximum data transfer rate: 100000 Mbit/s (100G)
• Fiber type: single-mode fiber (SMF)
• Maximum reach: up to 2 km
• Connector: MPO-12 APC
• Manufacturer: UBIQUITI, MPN UACC-OM-QSFP28-PSM4
• Product colour: Grey, Yellow

How to use

Install the UACC-OM-QSFP28-PSM4 into a compatible QSFP28 slot on your switch or router, ensuring the module is fully seated and latched according to the host device instructions. Connect the single-mode MPO-12 APC fiber cable to the module, observing proper keying and connector polarity. Verify link status and configure the network device for 100G operation as required.

Recommendations

Use certified single-mode MPO-12 APC fiber cables and follow ESD handling practices when installing the module. Verify compatibility with your network equipment and firmware before deployment to ensure optimal performance.
