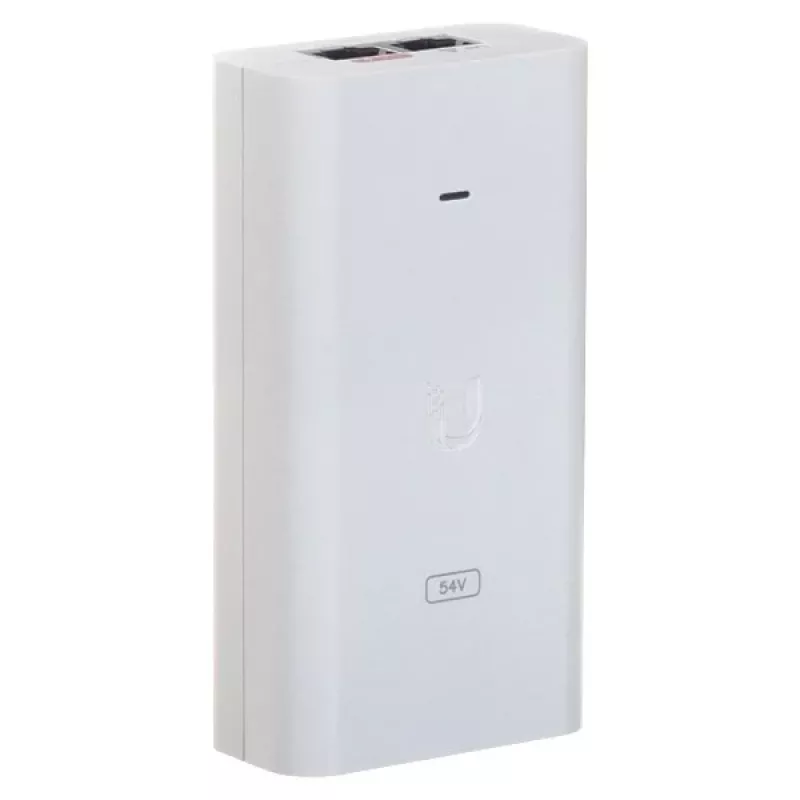

Ubiquiti UQ-POE-54-80W-G 80W pasívny PoE adaptér, 54V DC, Gigabit Ethernet

Powering network devices in locations without nearby AC outlets can be a challenge. The Ubiquiti UQ-POE-54-80W-G solves this by delivering both data and power over a single Ethernet cable. This 80W passive PoE adapter outputs 54V DC and supports Gigabit Ethernet, making it ideal for Ubiquiti access points, cameras, and other compatible devices. With its compact design and reliable performance, it simplifies installation and reduces cable clutter.

Who is it for

This adapter is perfect for network installers, IT professionals, and businesses deploying Ubiquiti devices in offices, warehouses, or outdoor areas where power outlets are scarce. It suits users who need a straightforward, cost-effective PoE solution without the complexity of active PoE negotiation.

Main features

• Delivers up to 80W of power at 54V DC for high-power devices
• Supports Gigabit Ethernet (10/100/1000 Mbps) for fast data transfer
• Passive PoE technology – always on, no handshake required
• Includes IEC-320 C6 AC input connector with earth ground for safety
• Surge and ESD protection for reliable operation
• LED power indicator for easy status monitoring
• Wide operating temperature range from -10°C to 60°C

Specifications

• Brand: Ubiquiti
• Model: UQ-POE-54-80W-G
• MPN: UQ-POE-54-80W-G
• EAN: 5902887096594
• Output Voltage: 54V DC
• Output Power: 80W
• Rated Output Current: 1.48A
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• AC Connector: IEC-320 C6 (3-prong)
• Ethernet Ports: 2 (1x Data In, 1x Data+Power Out)
• PoE Power Pins: 4-Pair (Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-))
• ESD/Surge Protection: Yes
• Operating Temperature: -10 to 60°C (14 to 140°F)
• Operating Humidity: 5 to 90% Noncondensing
• Efficiency: >85%
• LED Indicators: Power
• Grounding: AC Cable with Earth Ground

Tips

Ensure your device is compatible with 54V passive PoE before connecting. Use shielded Cat5e or better cables for optimal performance. Mount the adapter in a ventilated area to maintain proper cooling.
