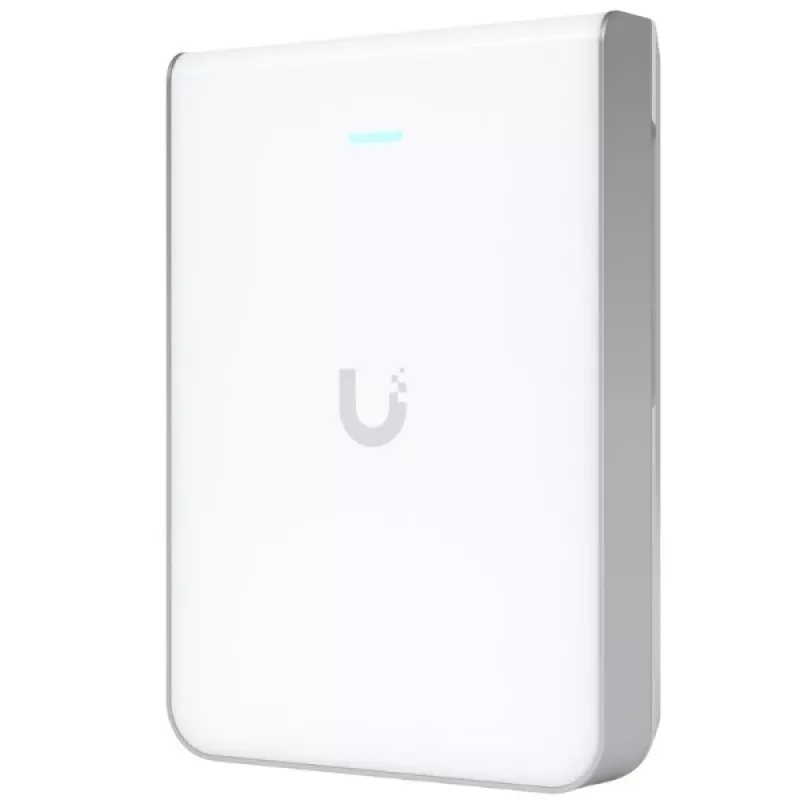

UBIQUITI UQ-U7-PRO-WALL UniFi Wi-Fi 7 Tri-Band Access Point (2,4 GHz 688 Mbps, 5 GHz 4324 Mbps, 6 GHz 5764 Mbps)

The Ubiquiti UQ-U7-PRO-WALL is a high-performance Wi-Fi 7 (802.11be) tri-band access point designed for demanding enterprise and residential environments. With aggregate throughput up to 10.776 Gbps, it delivers ultra-fast and reliable wireless connectivity for bandwidth-intensive applications such as 4K/8K streaming, VR/AR, and large-scale IoT deployments. The wall-mountable form factor integrates seamlessly into any setting, providing discreet yet powerful coverage.

Advantages

Experience the next generation of Wi-Fi with Wi-Fi 7 technology, offering lower latency, higher capacity, and improved efficiency. The tri-band design (2.4 GHz, 5 GHz, 6 GHz) ensures optimal channel utilization and reduced interference. With a 10 Gigabit Ethernet uplink and three 1 Gigabit Ethernet downlink ports, this access point supports high-speed wired backhaul and PoE passthrough for additional devices. Easy management via the UniFi Network Application simplifies deployment and monitoring.

Suitable for

• Enterprise offices and conference rooms
• Hotels, hospitals, and educational institutions
• High-density public venues (airports, stadiums)
• Smart homes with multiple connected devices

Key specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Frequency Bands: Tri-Band (2.4 GHz, 5 GHz, 6 GHz)
• Max Throughput: 2.4 GHz: 688 Mbps, 5 GHz: 4324 Mbps, 6 GHz: 5764 Mbps
• Aggregate Throughput: 10.776 Gbps
• Ethernet Ports: 1x 10 Gigabit RJ45 (uplink), 3x 1 Gigabit RJ45 (downlink)
• PoE Input: PoE++ (802.3bt)
• PoE Passthrough: PoE+ (802.3at) on one 1GbE port
• Antenna Type: Internal
• Mounting: Wall-mount (single-gang electrical box compatible)
• Security: WPA3, WPA2-PSK, WPA-Enterprise
• Management: UniFi Network Application
• Max Power Consumption: 25W (AP only), 40W (with PoE passthrough)
• Processor: Dual-core ARM Cortex-A73
• Memory: 1 GB DDR4

Recommendations

For optimal performance, use a PoE++ switch or injector (sold separately) to power the access point. Ensure your network infrastructure supports 10 Gigabit Ethernet to fully utilize the uplink speed. The UniFi Network Application provides advanced features like guest portal, traffic shaping, and detailed analytics.
