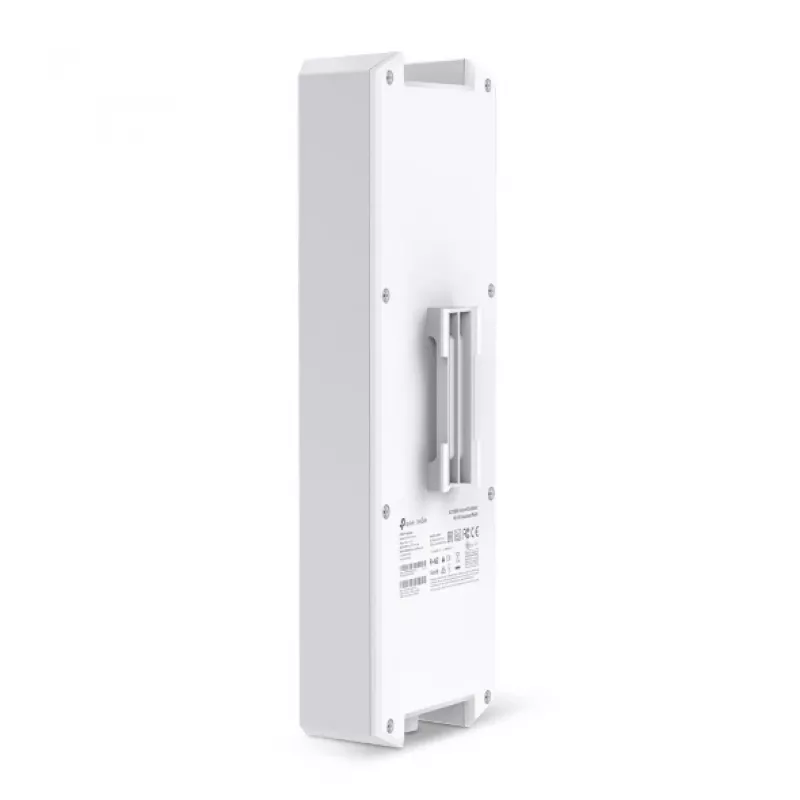

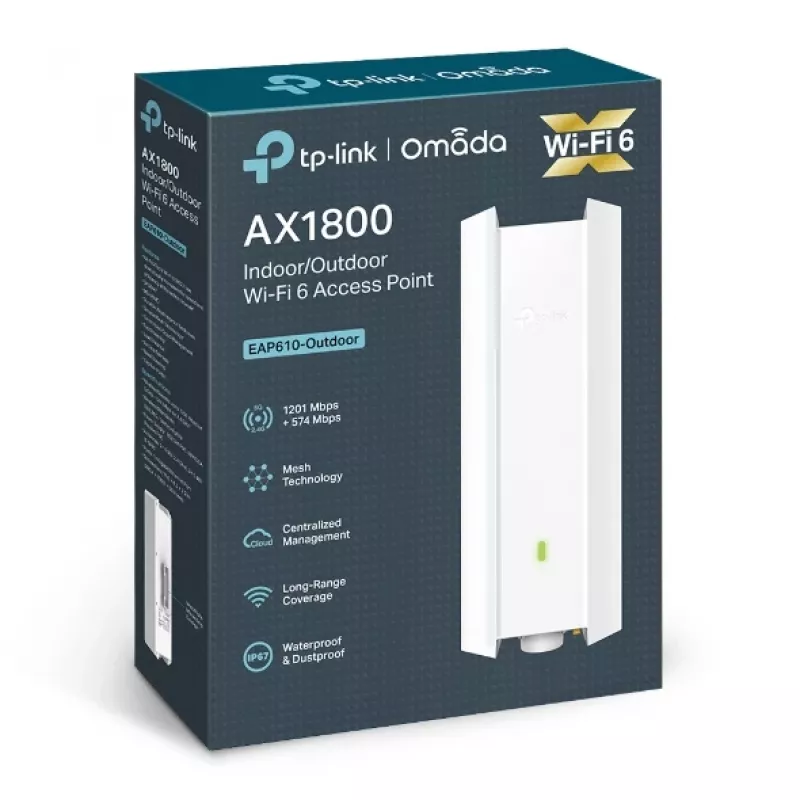

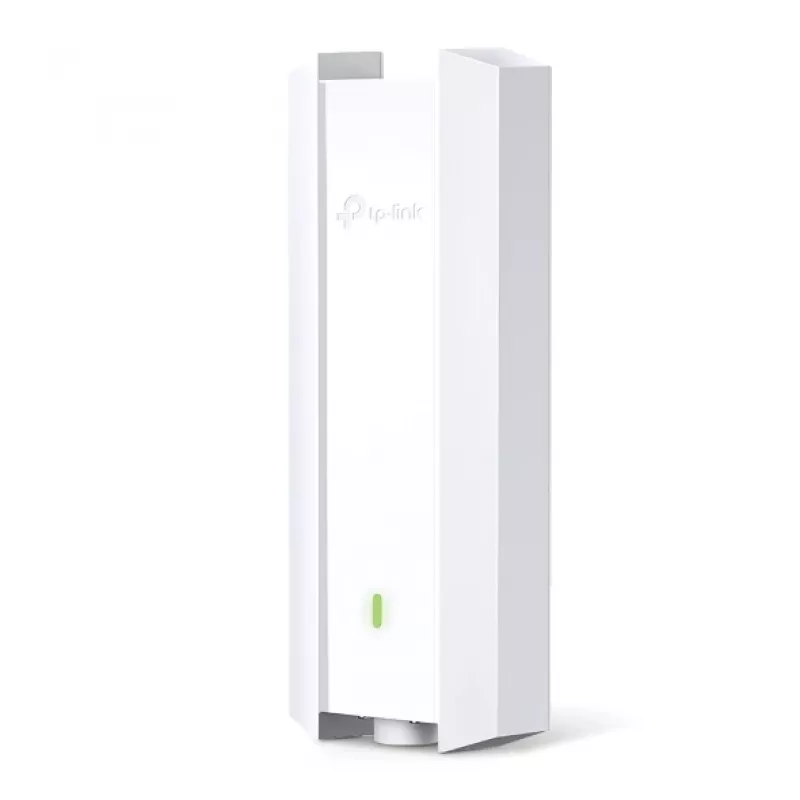

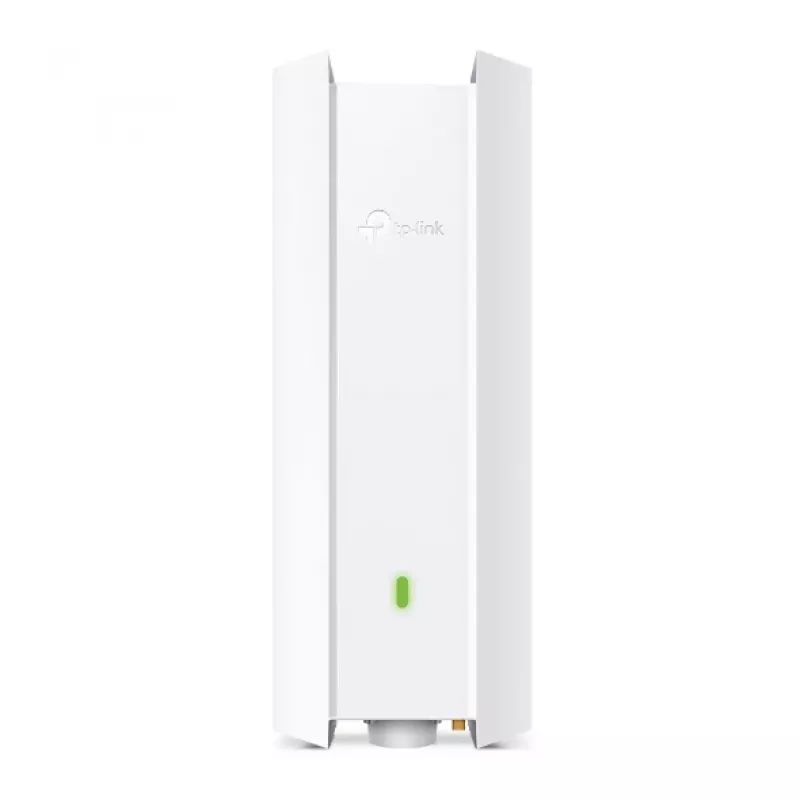

TP-Link Omada EAP610-Outdoor 1800 Mbit/s biela Power over Ethernet (PoE)

The TP-Link Omada EAP610-Outdoor is an outdoor dual-band WiFi 6 access point delivering up to 1.8 Gbps combined throughput across 2.4 GHz and 5 GHz bands. Built for outdoor venues such as pools, cafés, and parks, it features professional antennas with high-power amplifiers, an IP67 weatherproof enclosure, and multiple PoE power options to simplify deployment in exposed environments.

Advantages

This outdoor access point supports WiFi 6 features including OFDMA and MU-MIMO to improve multi-user efficiency and enable simultaneous connections for dozens of clients. Mesh technology and intelligent self-organization provide flexible wireless extension, optimized paths between EAPs, and self-healing for increased reliability. Fast roaming switches clients to the best AP for uninterrupted mobility. Centralized management is available through the Omada SDN platform and the Omada mobile app for quick setup and remote monitoring.

Suitable for

• Outdoor swimming pools and waterparks
• Cafés, terraces and outdoor dining areas
• Amusement parks and outdoor event spaces
• Campgrounds, marinas and sports facilities
• Large open public areas requiring many simultaneous clients

Key specifications

• Model: TP-Link Omada EAP610-Outdoor (EAP610-Outdoor)
• Wireless standard: IEEE 802.11ax (WiFi 6) with backward compatibility (802.11a/b/g/n/ac)
• Frequency bands: Dual-band 2.4 GHz and 5 GHz
• Maximum data transfer rate: Up to 1800 Mbit/s (combined)

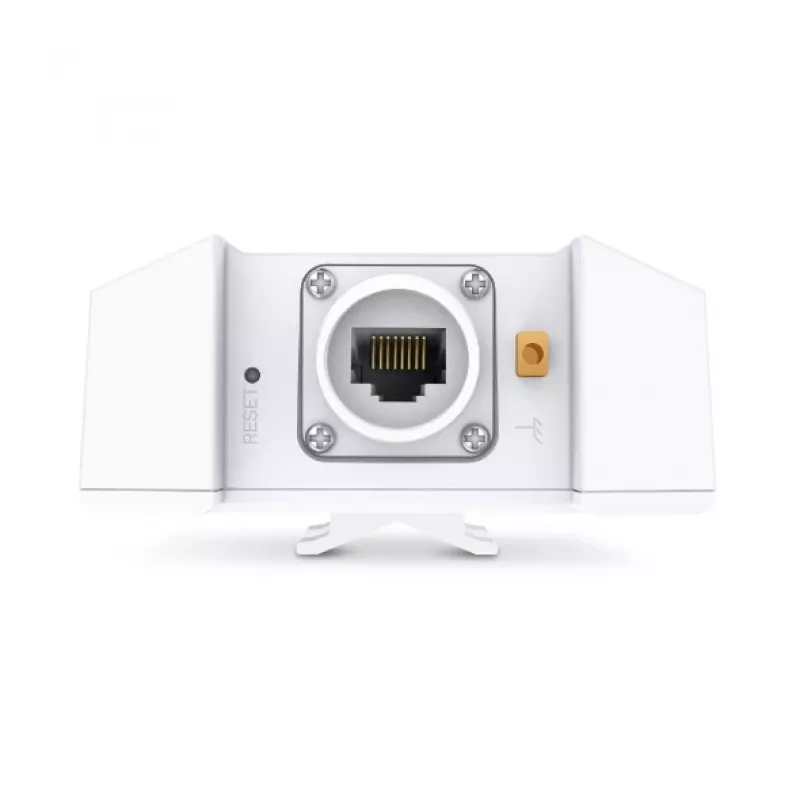

• Ethernet ports: 1 × RJ-45
• Power: 802.3at PoE+ and Passive PoE supported
• Environmental protection: IP67 weatherproof enclosure
• Color: White

How to use

Mount the EAP610-Outdoor using the provided mounting kit in a location with clear line-of-sight to the coverage area. Connect the access point to a PoE switch or the included PoE adapter via the RJ-45 port to power and network the device. Use the Omada app or the Omada SDN controller to adopt the AP into your network, configure SSIDs, security (WEP/WPA/WPA2/WPA3) and radio settings, and monitor client connections. For mesh deployments, add additional Omada EAPs and enable Mesh mode to extend coverage without extra cabling.

Recommendations

Place the unit at an elevated, unobstructed position to maximize coverage and reduce interference. Ensure Ethernet cabling and PoE equipment are rated for outdoor or protected installation where needed, and keep firmware updated through the Omada controller or app to maintain stability and security.
