Univerzálna hmoždinka Fischer UX 5 x 30 R s lemom

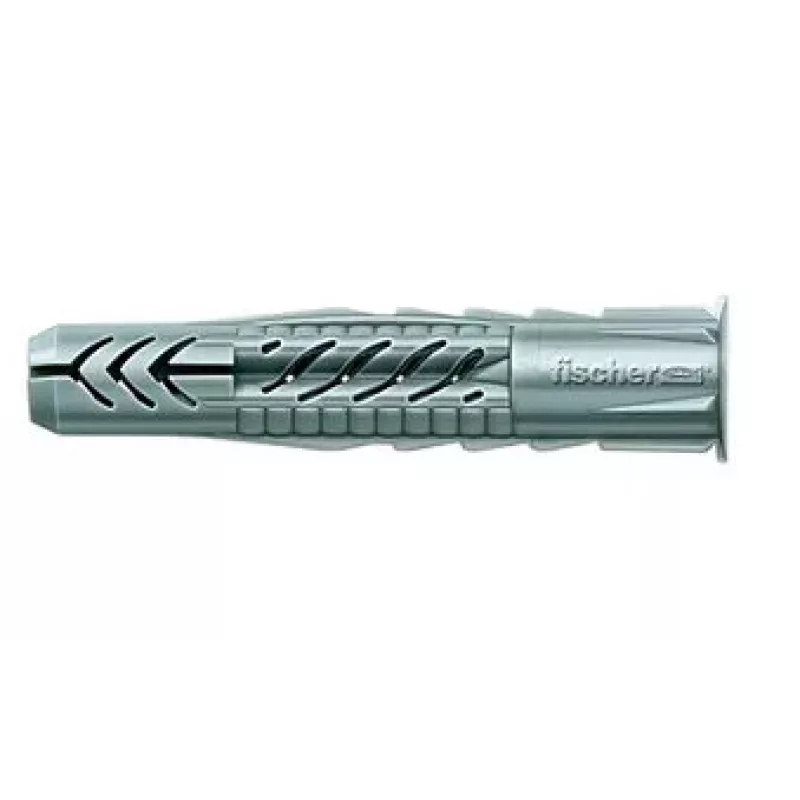

The Fischer universal fixing UX 5 x 30 R with rim is a plastic anchor made of high-quality nylon designed for secure fastening in a wide range of building materials. It expands in solid substrates and forms a knot in hollow substrates to provide reliable hold. The rim prevents the plug from slipping during installation, and the design supports through-type installation. Typical applications include fixing lights, curtain rails, lightweight cupboards and cornicing.

Advantages

The UX plug provides dependable retention in both solid and hollow building materials by expanding or knotting as required. Its slanted connection bridges guide the screw for optimum screw alignment, while an anti-rotation lock increases installation safety. The rim reduces risk of plug pull-through during fixing.

Suitable for

• Fixing lights and luminaires
• Mounting curtain rails and tracks
• Securing lightweight cupboards and cabinets
• Installing cornices and decorative mouldings

Key specifications

• Brand: FISCHER
• Model: UX 5 x 30 R (with rim)
• Material: High-quality nylon (plastic)
• Plug length: 30 mm
• Drill hole diameter: 5 mm
• Minimum drill hole depth: 40 mm
• Pack quantity: 100 pieces
• MPN: 94722
• EAN: 4006209947227

How to use

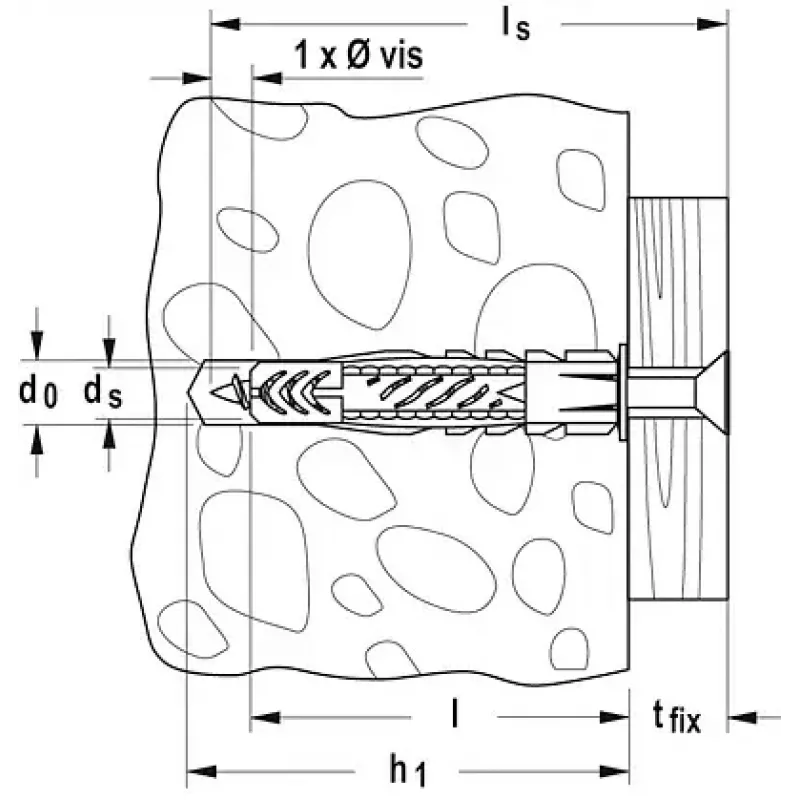

Drill a hole with a 5 mm bit to a depth of at least 40 mm. Clean the hole from dust, insert the Fischer UX plug until the rim sits flush with the surface, then insert and tighten the appropriate screw. The plug will expand in solid materials or form a knot in hollow materials to secure the fastening. For through-type installation, push the fixture and plug through the fixture hole and fasten as described.

Recommendations

Use screws matched to the 5 mm plug diameter and the weight of the fixture. For heavy loads or critical applications choose a mechanical or chemical anchor specified for the load class. Always verify substrate condition, and follow applicable local building regulations and safety practices.
