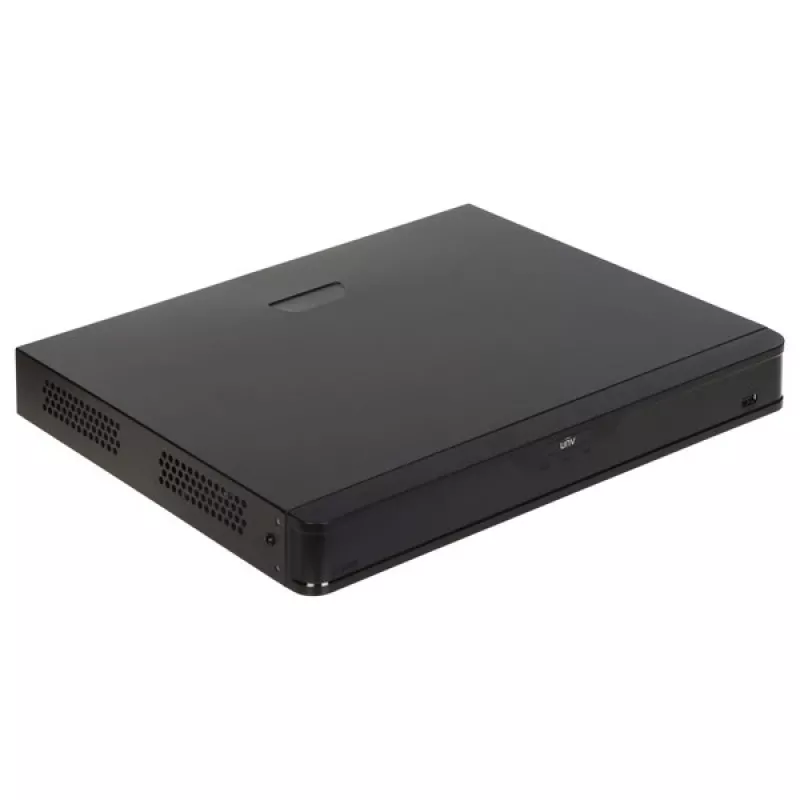

UNIVIEW NVR302-16B-P16-IQ 16-kanálový 4K sieťový videorekordér s 16 PoE portami

The UNIVIEW NVR302-16B-P16-IQ is a high-performance 16-channel network video recorder designed for professional surveillance systems. With support for up to 4K resolution recording and 16 integrated PoE ports, this NVR simplifies installation by powering IP cameras directly. It features advanced video compression (Ultra 265/H.265/H.264) to save bandwidth and storage, and includes AI capabilities such as smart intrusion prevention and face detection when used with compatible cameras.

Advantages

This NVR offers a cost-effective and scalable solution for medium to large surveillance installations. The built-in PoE switch eliminates the need for separate power supplies, reducing cabling and installation costs. With 2 SATA bays supporting up to 10 TB each, it provides ample storage for long-term recording. The AI features enhance security by enabling intelligent event detection and alerts.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Parking lots and outdoor areas

Key specifications

• Video Input Channels: 16
• PoE Ports: 16 (IEEE 802.3af/at, total budget 130W)
• Max Recording Resolution: Up to 4K (8MP)
• Video Compression: Ultra 265/H.265/H.264
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 64 Mbps
• HDD Bays: 2 SATA (max 10 TB each)
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1-ch RCA input, 1-ch RCA output
• Alarm: 4-ch input, 1-ch output
• Network: 1x Gigabit Ethernet
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Decoding: 2x 4K@30fps or 8x 1080P@30fps
• Synchronous Playback: 16 channels
• AI Features: Smart intrusion prevention, line crossing, face detection (with compatible cameras)
• Power Supply: 100~240V AC
• Chassis: 1U desktop/rackmount

Recommendations

For optimal performance, pair this NVR with UNIVIEW IP cameras that support AI features. Use enterprise-grade hard drives rated for 24/7 surveillance. Ensure the PoE power budget does not exceed 130W total for connected cameras.
