UPS ROLINE DesignSecure 1200

The ROLINE DesignSecure 1200 is a compact Line-Interactive UPS designed for workstations and PCs. It delivers up to 1.2 kVA (720 W) output power, provides six C13 AC outlets and includes automatic voltage regulation (AVR), integrated surge protection and EMI/RFI noise filtering in a small tower housing with passive cooling.

Advantages

This UPS combines AVR and integrated overvoltage protection to stabilise voltage fluctuations and protect connected equipment. A digital status display and USB port allow advanced power management and monitoring, while telephone/modem protection and an EMI/RFI filter reduce interference. The compact, futuristic design and moderate weight make it suitable for desktop environments where space is limited.

Suitable for

• Desktop PCs and workstations
• Small office equipment and peripherals
• Network devices with telephone/modem connections
• Environments requiring voltage regulation and surge protection

Key specifications

• Model: ROLINE DesignSecure 1200 (MPN: 19.40.1212)
• Output power: 720 W
• Output power capacity: 1.2 kVA

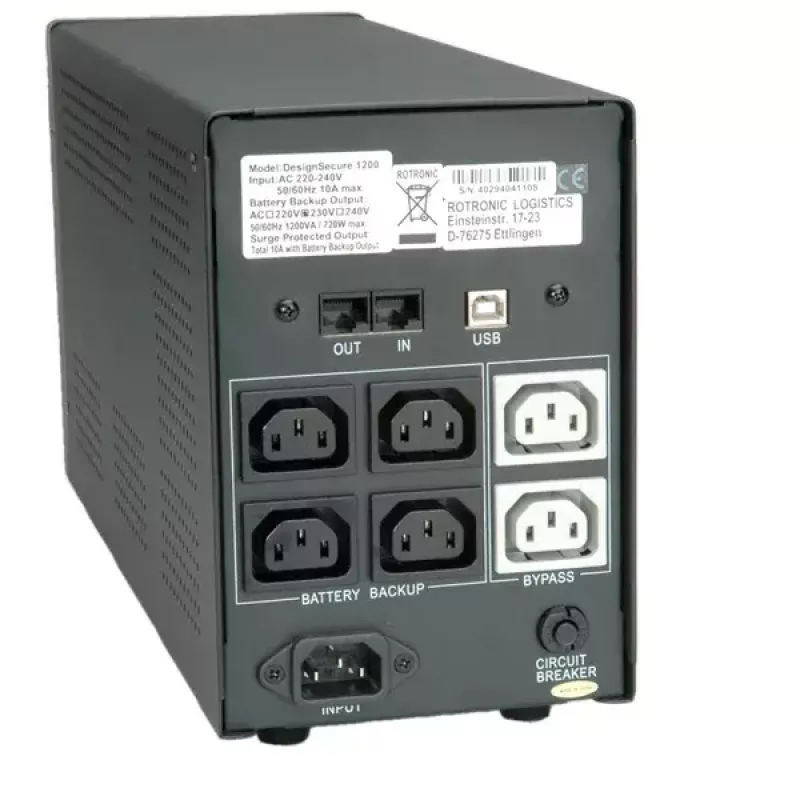

• AC outlets: 6 × C13
• USB: 1 × USB 2.0 port (for power management software)
• Features: Line-Interactive topology, AVR, integrated surge protection, EMI/RFI filter
• Connections: Telephone/Modem protection
• Dimensions (H×W×D): 168 × 105 × 334 mm
• Weight: 6.3 kg
• Typical backup time: up to 3 minutes at full load; approximately 6 minutes at half load (typical)
• Colour: Black, Silver

How to use

Place the UPS on a flat, stable surface with adequate ventilation. Connect critical devices to the C13 AC outlets and attach telephone/modem lines if required. Install the included power management software via the USB 2.0 port to enable advanced monitoring and controlled shutdowns. The unit operates automatically to regulate voltage and supply battery power during mains failures; monitor the digital status display for real-time information.

Recommendations

Ensure regular testing and periodic battery replacement according to the manufacturer’s guidelines. Avoid blocking ventilation openings, and do not expose the UPS to moisture or extreme temperatures. For uninterrupted operation of multiple high-draw devices, verify total load does not exceed 720 W output capacity.
