USB-C konektor samica Keystone vložka VivoLink PROKEYUSBCFM0 5W – panelová montáž, pripojenie PCB alebo nástenných dosiek

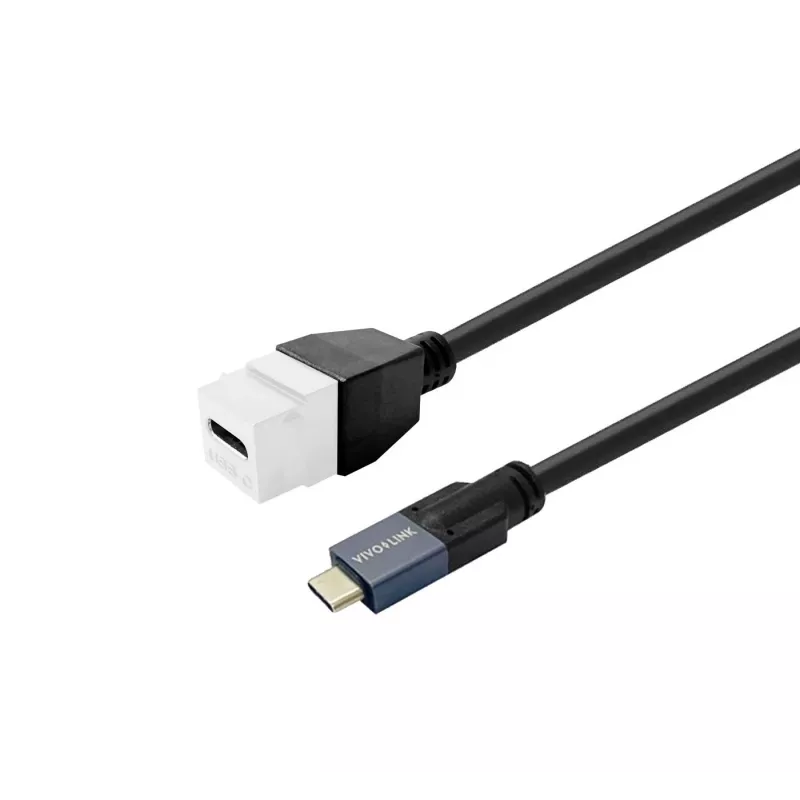

VivoLink PROKEYUSBCFM0 5W is a USB-C female keystone insert designed for panel mount, PCB or wall plate installations. The compact keystone format provides a standard USB-C receptacle that fits into compatible keystone housings and wall plates, offering a tidy interface for power and data connections in AV setups, workstations and custom cabling projects. The module simplifies access to USB-C ports while keeping cables organized behind panels.

Advantages

The keystone insert offers a straightforward snap-in mounting mechanism for quick installation into standard keystone openings. Its USB-C female connector supports standard USB-C plug compatibility, allowing a wide range of cables and devices to connect without adapters. The design is suitable for use in panels, wall plates or direct PCB mounting, enabling flexible deployment in different installation scenarios. The compact size reduces space requirements in housings and plate cutouts.

Suitable for

• AV racks and equipment panels where accessible USB-C ports are required
• Workstation and office wall plates for charging and data connections
• Custom audio/video installations and conference rooms
• Embedded PCB applications that need an external USB-C interface
• Patch panels and keystone housings for structured cabling

Key specifications

• Connector type: USB-C female keystone insert
• Mounting options: panel mount, PCB mount or wall plate (keystone opening)
• Power handling: rated for up to 5 W power delivery
• Form factor: compact keystone module compatible with standard keystone openings
• Contact interface: standard USB-C receptacle for reversible plug insertion
• Construction: metal/plastic housing suitable for fixed installation

How to use

Install the keystone insert by snapping it into a compatible keystone opening on a wall plate, panel or keystone housing; for PCB mounting, align and solder the module to the board following standard PCB assembly practices. After mechanical installation, connect an appropriate USB-C cable to the receptacle for data and power delivery. Ensure the mating cable and connected devices conform to USB-C specifications and the installation environment supports the rated power level.

Recommendations

For reliable operation, use certified USB-C cables and match the power and data requirements of connected devices. When installing in wall plates or panels, confirm the keystone opening dimensions and secure the housing to prevent strain on the connector. For PCB-mounted applications, follow ESD precautions and manufacturer guidelines for soldering and mechanical support.
