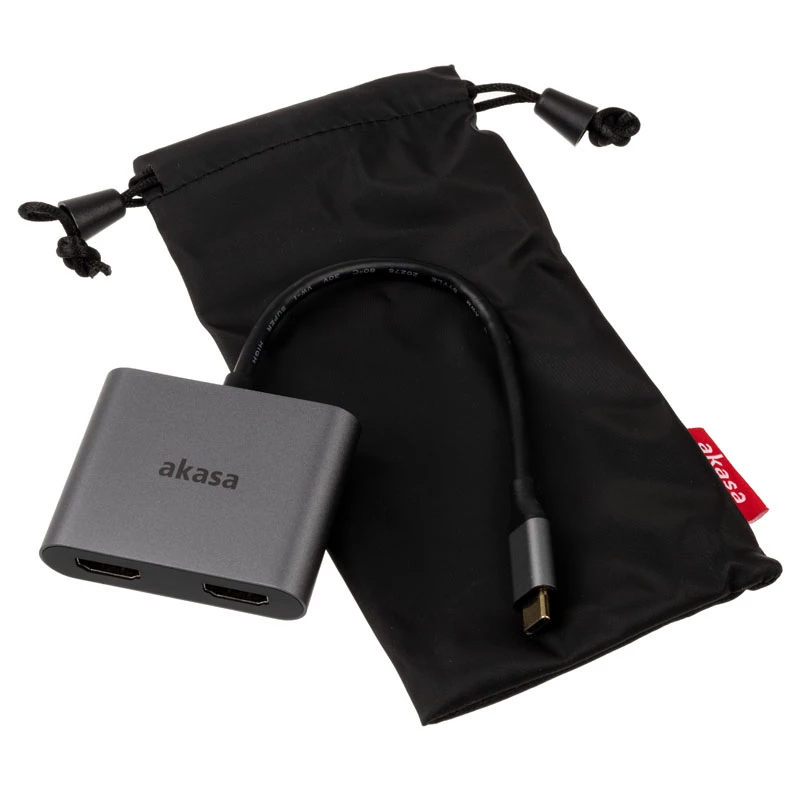

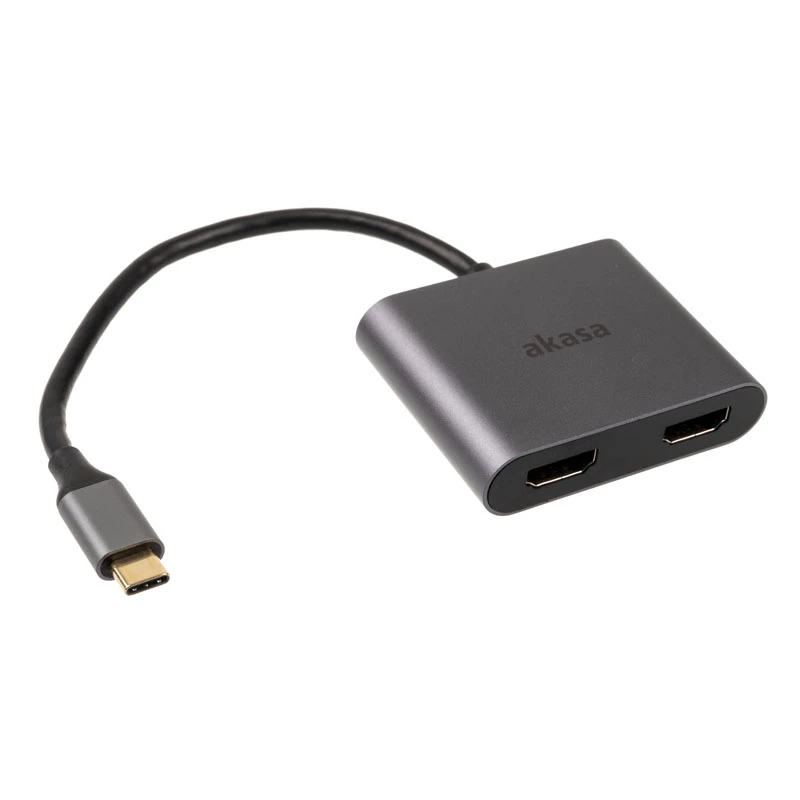

USB grafický adaptér Akasa AK-CBCA26-18BK

The Akasa AK-CBCA26-18BK USB graphics adapter enables connecting two 4K HDMI displays to a USB Type-C enabled computer via a single MST adapter. It uses USB 3.2 Gen 1 Type-C connectivity for high-speed data transfer and comes in an aluminium housing with compact dimensions (48.6 × 62 × 15 mm), making it suitable for desktop and mobile workstations where additional display outputs are required.

Advantages

The adapter supports Multi-Stream Transport (MST) to drive two independent 4K HDMI displays from one USB-C port, reducing the need for multiple video outputs. Its aluminium construction provides durability and a low-profile design that integrates easily into existing setups. USB 3.2 Gen 1 Type-C ensures reliable bandwidth for video signals and straightforward plug-and-play connection on compatible systems.

Suitable for

• Expanding laptop display to dual 4K HDMI monitors
• Desktop workstations with a single USB-C video output
• Presentations and multitasking with multiple full-resolution screens

Key specifications

• Model: Akasa AK-CBCA26-18BK
• Interface: USB 3.2 Gen 1 Type-C (MST)
• Outputs: Two 4K HDMI displays (via MST)
• Material / Colour: Aluminium
• Dimensions: 48.6 mm (W) × 62 mm (D) × 15 mm (H)
• MPN: AK-CBCA26-18BK
• EAN: 4710679559735

How to use

Connect the adapter to a USB Type-C port on a compatible computer that supports DisplayPort Alt Mode and MST. Attach two HDMI cables from the adapter outputs to the target monitors. Configure display settings in the operating system to extend or duplicate screens as required. Ensure the host device provides sufficient power and supports the combined resolution and refresh rates of two 4K displays.

Recommendations

For optimal performance, use high-quality HDMI cables and a USB-C port that supports DisplayPort Alt Mode and adequate bandwidth. Confirm driver and firmware updates for your operating system and graphics stack when necessary to enable MST and dual-4K output.
